TPC-BF4641-B19F8-DW-S2-HYBRID THERMAL BULLET CAMERA WITH DOUBLE LENS AND DOUBLE SENSOR - VIDEO ANALYSIS - FIRE ALARM - AUDIO - ALARM

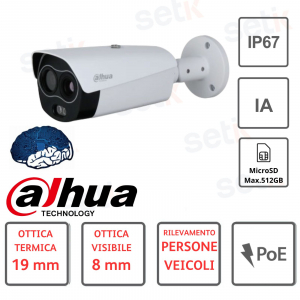

Outdoor POE ONVIF hybrid thermal+visible IP camera - Dahua TPC-BF4641-B19F8-DW-S2
Product details
- Hybrid Thermal POE ONVIF IP Bullet Camera - Dahua - TPC-BF4641-B19F8-DW-S2
- S2 version
- Dual-Lens Technology: double optics: thermal 19mm / visible 8mm
- Dual-Sensor Technology: 1/2.7" 4MP 2688x1520 CMOS sensor (visible camera) + Vanadium Oxide uncooled focal plane sensor (thermal camera)
- Resolution: 640 x 512 (thermal optics) / 2688x1520 4MP ( visible optics )
- Visual spectrum from 8 ~14 µm
- Integrated Video Analysis (Line Crossing, Intrusion, Object Detection (People / Vehicles), Fire Detection & Smoke Detection Alarm.etc.)
- People detection Detection: 790 meters - Recognition: 203 meters - Identification: 101 meters
- Vehicle detection Detection: 2111 meters - Reconnaissance: 527 meters - Identification: 263 meters
- Sensitivity 40mK
- BLC, HLC, 2D/3D-DNR,WDR, day/night
- IR illuminator up to 30 meters
- 2 alarm inputs and 2 outputs
- 1 audio input and 1 audio output
- microSD-Card slot up to 512GB (not included)
- Poe/ePoE protocol
- 100M RJ45 LAN interface
- RS-485 port
- BNC video output
- Power supply NOT included
- Dimensions: 103.5 (W) x 91.6 (H) x 279.1 mm
- Weight 1.4Kg
- 24 month manufacturer's warranty
Data sheet
Vanadium oxide uncooled focal plane sensor
-
Effective pixels: 640 x 512
Pixel size: 12 µm
Thermal sensitivity (NETD): <40mK
Spectrum range: 8 ~14 µm
Focal length (thermal): 19 mm
Angle of view (thermal): 22.9°(H), 18.4°(V)
Effective distance on people:
- Detection: 790 metres
Recognition: 203 metres
Identification: 101 metres
Effective distance on vehicles:
- Detection: 2111 metres
Reconnaissance: 527 metres
Identification: 263 metres
24X digital zoom
Digital detail enhancement
Automatic and manual thermal gain control
2D and 3D noise reduction
18 color palettes
4 megapixel 1/2.7 CMOS image sensor (view camera)
Effective pixels: 2688 x 1520
30 meter infrared illumination
Minimum illumination: 0.01 lux (colour), 0.001 lux (B/W), 0 lux IR On
Focal length (visible optics): 8 mm
Angle of view (visible optics): 41.3°(H), 23.1°(V)
Day/night mode with removable mechanical filter.
Imaging modes: BLC, HLC, WDR, 2D/3D-NR, exposure compensator, digital Defog
White balance with 8 modes
Automatic and manual visible gain control
H.265, H.264 video compression
G.711A, G.711Mu audio compression
Visible camera resolution: 4MP (2688x1520), 3.7MP (2560x1440), 1080P (1920x1080), 720P (1280x720), D1 (704x576), CIF (352x288), 256x192
Stream 1 thermal: 1280x1024 (default), 1280x720, 640x512 (1~25 ips)
Stream 2 thermal: 640x512 (default), 320x256 (1~25 ips)
Stream 1 visible: 4MP, 3.7MP (default), 1080P, 720P, D1 (1~25 ips)
Stream 2 visible: D1 (default), CIF (1~25 ips)
Perimeter protection: Cross-line detection, intrusion detection, target (person/vehicle) filtering
Advanced detection features: Fire detection, hot/cold spot tracking, target tracking, smoke detection, call detection
BNC video output
1 audio input / 1 audio output
2 alarm inputs / 2 alarm outputs
RS485 port
Ethernet RJ-45 (10/100M Base-T)
Network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Onvif and CGI support
Up to 20 users
Compatible with IE, Chrome, Firefox browsers
MicroSD card slot up to 512GB (card not included)
Power supply: 12V DC (±20%) / PoE / ePoE
Power consumption: 3.96W ~ 11W
Storage temperature from -40°C ~ +70°C
Operating temperature from -30°C ~+70°C
Relative humidity: <95%.
Degree of protection: IP67
Dimensions: 103.5 (W) x 91.6 (H) x 279.1 mm
Weight: 1.4 kg
Further details
 | Thermal Camera... what is it? and how to choose it? | |
 |
| |
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems | |
  | This camera is a THERMAL CAMERA .
Visual spectrum from 8 to 14µm Thermal camera resolution 640x512
| |
  | Dual-Lens Technology! People detection Detection: 790 meters - Recognition: 203 meters - Identification: 101 meters Vehicle detection Detection: 2111 meters - Reconnaissance: 527 meters - Identification: 263 meters  | |
 | Visible camera resolution 4MP 2688x1520p 1/2.7" 4MP progressive scan CMOS sensor | |
 | Fixed visible camera optics, 8mm. | |
 | IR illuminator up to 30m. | |
| This camera features SMART DETECTION - Intrusion - People / Vehicles Classification - Smoke detection - Detection of hot and cold areas - Fire detection & alarm
| |
  | This camera is capable of detecting the presence of fire and detecting its temperature.
| |
  | This camera features BNC Video output This camera has 1 RS-485 port | |
 | This camera has 2 inputs and 2 alarm outputs | |
 | This camera has 1 input + 1 audio output | |
 |
IP67: Guarantees protection from dust and water jets (rain) | |
 | Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.  | |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. | |
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations  | |
 | Possibility of inserting a Micro SD up to a maximum of 512GB | |
 | This product is covered by a 24 month warranty. |
