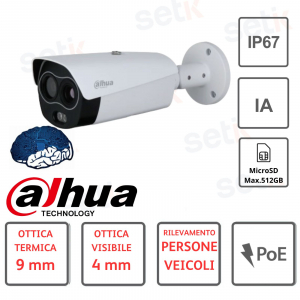

DAHUA DUAL SENSOR THERMAL 9MM AND VISIBLE 4MM IA CAMERA

DAHUA DUAL SENSOR THERMAL 9MM AND VISIBLE 4MM IA CAMERA
-57%

TPC-BF4641-B9F4-DW-S2 - Thermal video surveillance camera - IP PoE ONVIF - Dahua - Smoke-heat detection - Double optics: thermal (9mm) / visible (4mm) - 4MP resolution for the visible optics / 640x 512 for thermal optics - Double sensor: 1 x thermal Vanadium oxide uncooled focal plane sensor + 1 x CMOS 1/2.7" 4MP - Illumination up to 30m (visible) - Codec H.265 -WDR - HLC - BLC - 2D/3D- NR - Day/night (ICR) - 2in/2out alarm - 1in/1out audio - MicroSD slot up to 512GB (not included) - RS-485 - Ethernet RJ-45 LAN 100M - IP67 protection for outdoors - S2 VERSION



Reference: TPC-BF4641-B9F4-DW-S2

Brand: Dahua

FIND INSTALLER

€2,634.02

€6,125.62 -57%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


Description Product Details Technical Data Sheet Further Details Download

IP POE ONVIF® - DAHUA THERMAL VIDEO SURVEILLANCE CAMERA - 9MM THERMAL OPTIC - 4MM VISIBLE - DUAL SENSOR - ARTIFICIAL INTELLIGENCE - SMOKE AND FIRE DETECTION - IP67 - TPC-BF4641-B9F4-DW-S2

Made by Setik

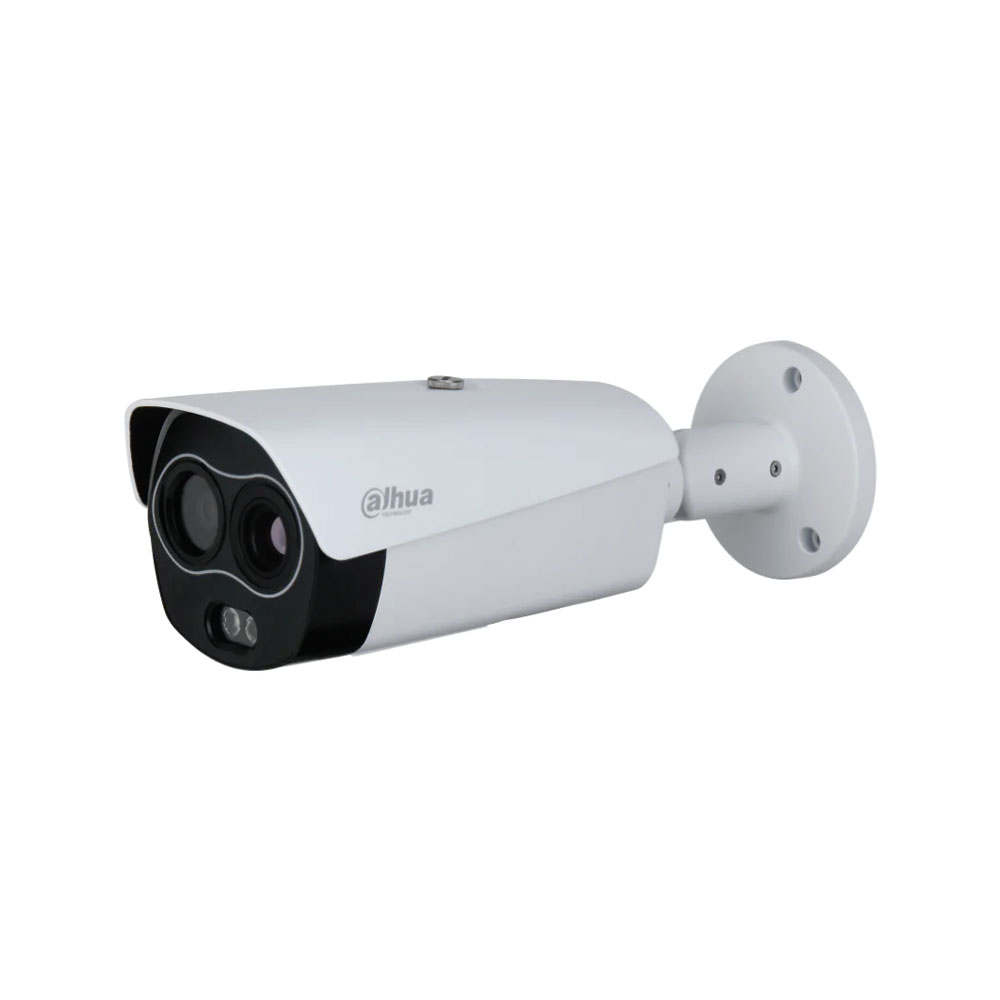

ONVIF® PoE IP Professional Thermal Video Surveillance Camera - Dahua - TPC-BF4641-B9F4-DW-S2
Dual-Lens (9mm thermal / 4mm visible) - 4MP resolution (visible optics) - 640x512 resolution (thermal optics) - Double sensor (1x thermal 640x512 + 1x 1/2.7" 4MP) - Video Codec H.265 - Illumination (visible camera ) up to 30m - Artificial intelligence: Detection of smoke, fires, hot and cold areas - WDR - BLC - HLC - 2D/3D-NR Audio 1in/1out - Alarm 2in/2out - RS-485 - RJ-45 Ethernet port - Slot MicroSD up to 512GB (not included) - IP67 protection - Ideal for video surveillance systems.

Product details

  • ONVIF® PoE IP - Professional Thermal Camera - Dahua - TPC-BF4641-B9F4-DW-S2
  • S2 version
  • Dual-Lens Technology, double optics (Thermal 9mm / Visible 4mm)
  • Dual-Sensor Technology , double sensor (Vanadium Oxide Uncooled Focal Plane Sensor - Thermal + CMOS 1/2.7" 4MP - Visible )
  • Resolution 640x512 (thermal optics) / 4MP (visible optics)
  • Artificial intelligence:
  • Smoke and fire detection
  • Hot and cold area detection
  • Classification of people/vehicles
  • Visual spectrum from 8 ~14 µm
  • Sensitivity: <40mK@f/1.0
  • color palette
  • WDR, HLC, BLC, 3DNR, 2DNR
  • H.265 Video Compression
  • Dual Stream (visible and thermal)
  • Alarm: 2 inputs and 2 outputs
  • Audio: 1 audio input and 1 audio output
  • RS-485
  • Ethernet RJ-45 LAN port
  • 1 microSD-Card slot (Up to 512GB - not included)
  • People detection: Detection: 375 meters Recognition: 96 meters Identification: 48 meters
  • Vehicle detection: Detection: 1000 meters Recognition: 250 meters Identification: 125 meters
  • Power supply NOT included
  • Power supply: 12V±20% DC/POE
  • IP67 protection, ideal for outdoors
  • Dimensions: 103.5 (W) x 91.6 (H) x 279.1 mm
  • Product net weight: 1.4kg
  • Operating temperature: –30 °C to +60 °C
  • 24 month warranty

Data sheet

  • Vanadium oxide uncooled focal plane sensor

  • Effective pixels: 640 x 512

  • Pixel size: 12 µm

  • Thermal sensitivity (NETD): <40mK

  • Spectrum range: 8 ~14 µm

  • Focal length (thermal): 9 mm

  • Angle of view (thermal): 50°(H), 39.6°(V)

Effective distance on people:

  • Detection: 375 metres
  • Recognition: 96 metres

  • Identification: 48 metres

Effective distance on vehicles:

  • Detection: 1000 meters
  • Reconnaissance: 250 metres

  • Identification: 125 meters

  • 24X digital zoom

  • Digital detail enhancement

  • Automatic and manual thermal gain control

  • 2D and 3D noise reduction

  • 18 color palettes

  • 4 megapixel 1/2.7 CMOS image sensor (view camera)

  • Effective pixels: 2688 x 1520

  • 30 meter infrared illumination

  • Minimum illumination: 0.01 lux (colour), 0.001 lux (B/W), 0 lux IR On

  • Focal length (visible optics): 4 mm

  • Angle of view (visible optics): 91.1°(H), 48.2°(V)

  • Day/night mode with removable mechanical filter.

  • Imaging modes: BLC, HLC, WDR, 2D/3D-NR, exposure compensator, digital Defog

  • White balance with 8 modes

  • Automatic and manual visible gain control

  • H.265, H.264 video compression

  • Audio compression G.711A, G.711Mu

  • Visible camera resolution: 4MP (2688x1520), 3.7MP (2560x1440), 1080P (1920x1080), 720P (1280x720), D1 (704x576), CIF (352x288), 256x192

  • Thermal Stream 1: 1280x1024 (default), 1280x720, 640x512 (1~25 ips)

  • Thermal Stream 2: 640x512 (default), 320x256 (1~25 ips)

  • Stream 1 visible: 4MP, 3.7MP (default), 1080P, 720P, D1 (1~25 ips)

  • Stream 2 visible: D1 (default), CIF (1~25 ips)

  • Perimeter protection: Cross-line detection, intrusion detection, target (person/vehicle) filtering

  • Advanced detection features: Fire detection, hot/cold spot tracking, target tracking, smoke detection, call detection

  • BNC video output

  • 1 audio input / 1 audio output

  • 2 alarm inputs / 2 alarm outputs

  • RS485 port

  • Ethernet RJ-45 (10/100M Base-T)

  • Network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

  • Onvif and CGI support

  • Up to 20 users

  • Compatible with IE, Chrome, Firefox browsers

  • MicroSD card slot up to 512GB (card not included)

  • Power supply: 12V DC (±20%) / PoE / ePoE

  • Power consumption: 3.96W ~ 11W

  • Storage temperature from -40°C ~ +70°C

  • Operating temperature from -30°C ~+70°C

  • Relative humidity: <95%.

  • Degree of protection: IP67

  • Dimensions: 103.5 (W) x 91.6 (H) x 279.1 mm

  • Weight: 1.4 kg

Further details

Thermal Camera... what is it? and how to choose it? Body Temperature Measurement? What does it mean?
Read our articles!

- Radiometric technology applied to the measurement of body temperature
- Thermal camera: what it is and why choose it for video surveillance

Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems
PoE power supply

The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation


Dual-Lens Technology!
This camera is equipped with 2 lenses , a 9mm thermal one and a 4mm visible one.



Dual-Sensor Technology!
This camera is equipped with 2 image sensors ,
- Vanadium oxide uncooled focal plane sensor for thermal optics (with 640x512 resolution)
- 1/2.7" CMOS for visible optics, with 4MP 2688x1520 resolution


This camera is a THERMAL CAMERA .

Sensitivity ?40 mK@f/1.0

Visual spectrum from 8 to 14µm


This camera features SMART DETECTION
- Line crossing

- Intrusion

- Classification of People / Vehicles)

- Smoke detection

- Detection of hot and cold areas

- Fire detection & alarm

- Detection of people and vehicles


This camera can detect the presence of fire

Full HDIt is extremely useful to also have Inputs/Outputs in a CCTV system to be able to control relays or activate a recording following an event
This camera has 2 inputs and 2 outputs
Ingresso Audio

This camera has 1 input + 1 audio output

It has a built-in speaker

Icon Day/Night function Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
Example Day/Night function
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter


RS-485 supported

MicroSD Recording

Possibility to insert Micro SD up to a maximum of 512GB - not included

Protezione IP67 contro polveri e immersioni

Protection level IP67 (Dust / Immersion)


Dual Encoding This product is covered by a 24 month warranty.

Downloads

Not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
