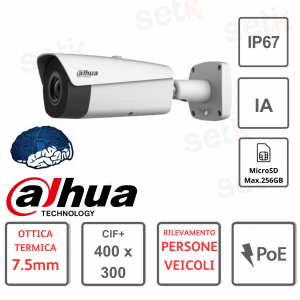

Dahua Thermal Bullet IP Camera 7.5mm-400x300-VIDEO ANALYSIS AI

Product details

• ONVIF® PoE Bullet Thermal IP Camera - Dahua Pro Series
• Resolution 400(H)x300(V)
• Uncooled VOx Microbolometer sensor
• 7.5mm fixed lens
• Visual spectrum from 8 to 14?m
• Thermal Sensitivity: 40mK
• Compression up to H.265
• Detection of People (up to 221 meters) and Mobile Vehicles (up to 490 meters)
• Recognition of People (up to 57 meters) and Mobile Vehicles (up to 126 meters)
• Identification of People ( up to 28 meters) and Mobile Vehicles ( up to 63 meters)
• Integrated Video Analysis ( Crossing, Intrusion)
• IVS Detection: Line crossing detection, Intrusion detection
  Advanced detection functions: Fire detection and alarm, Hot and cold spot tracking, Person and vehicle classification
• ROI
• 1 CVBS/BNC Video Output
• Audio: 1 input and 1 output
• Alarm: 2 inputs and 2 outputs
• RS-485 port
• MicroSD slot (Max 256GB - not included)
• 12V DC/PoE/ePoE power supply
• Power supply NOT included
• Dimensions 103 (W) x 97 (H) x 291 mm
• Material: Metal
• 24 month warranty

Data sheet

Uncooled VOx Microbolometer Sensor:

• Effective Pixels: 400 x 300
• Pixel Size: 17 µm
• Thermal Sensitivity (NETD): 40mK
• Spectrum Range: 8 ~14 µm
• Focal Length (Thermal): 7.5mm
• Angle of View (Thermal): 53.7°(H), 39.7°(V)

Effective Distance on People (1.8 mx 0.5 m):

• Detection: 221 meters
• Recognition: 57 meters
• Identification: 28 meters

Effective Distance on Vehicles (4m x 1.4m):

• Detection: 490 meters
• Recognition: 126 meters
• Identification: 63 meters

Features:

• 4X Digital Zoom
• Brightness and Sharpness Adjustment
• Automatic Gain Control
• 3D Noise Reduction
• ROI
• 18 Color Palettes
• H.265/H.264/MJPEG Compression

Video Streams:

• Stream 1: 1280x1024, 1280x720, 400x300 (25/30fps)
• Stream 2: 640x512, 400x300 (25/30fps)

Other Features:

• Digital Image Stabilizer (EIS), Mirror Mode
• Supports 4-zone Video Sensor, 4 Regions of Interest (ROI), and 4-zone Privacy Mask
• IVS Detection: Line Crossing Detection, Intrusion Detection
• Advanced Detection Functions: Fire Detection and Alarm, Hot and Cold Spot Trace, Person and Vehicle Classification

Audio Compression:

• G.711A, G.711Mu, AAC, and PCM
• 1 Input / 1 Audio Output

Alarm:

• 2 Alarm Inputs / 2 Outputs
• 1 BNC/CVBS Port

Connectivity:

• Support RS485
• Ethernet RJ-45 (10/100M)
• Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Compatible with ONVIF (S/G) and API
• Up to 10/20 Users
• Compatible with IE8, Chrome42, Firefox42 Browsers
• MicroSD Card Slot up to 256GB (Card Not Included)

Power:

• 12V DC (±20%) / PoE / ePoE
• Consumption: 13W

Environmental Specifications:

• Storage Temperature: -40°C ~ +70°C
• Operating Temperature: -40°C ~ +50°C
• Relative Humidity: <95%
• Lightning-proof 6KV
• Degree of Protection: IP67 Metal Casing

Dimensions and Weight:

• Dimensions: 103 (W) x 97 (H) x 291 mm
• Weight: 1.5kg

Note:

• Effective distance values shown are nominal values and should be used as an estimate. Consult with your commercial to know the recommended detection distances with our Vaelsys perimeter system.

Further details

	Thermal Camera... what is it? and how to choose it? Read our article!
	Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems
	The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation
	This camera is a THERMAL CAMERA . Sensitivity 40mK Visual spectrum from 8 to 14µm
	Thermal Sensor: Uncooled VOx Microbolometer
	This camera has a 7.5mm fixed lens Detection of People (up to 221 meters) and Mobile Vehicles (up to 490 meters) Recognition of People (up to 57 meters) and Mobile Vehicles (up to 126 meters) Identification of People (up to 28 meters) and Mobile Vehicles (up to 63 meters)
	This camera provides VIDEO ANALYSIS: - Line crossing - Intrusion
	This camera provides advanced intelligent functions: - Fire detection and alarm
	This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
	This camera has 1 Video Output (CVBS/BNC)
	It is extremely useful to also have Inputs/Outputs in a CCTV system to be able to control relays or activate a recording following an event This camera has 2 inputs and 2 outputs
	This camera has 1 input + 1 audio output
	RS 485 for PTZ Commands (Remotely Controlled Cameras)
	Protection level IP67 (Dust / Immersion)
	Possibility to insert Micro SD up to a maximum of 256GB - not included
	This camera was made of metal
	This product is covered by a 24 month warranty.
