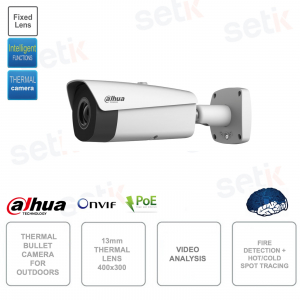

Dahua TPC-BF5401-B13-BM-S2 ONVIF PoE IP camera Thermal Camera (S2 Version) for outdoor/indoor use with 400(H)x300(V) resolution, Vanadium Oxide Uncooled Focal Plane Sensor - 13mm fixed lens - Codec H. 265 with Dual Stream, ROI, Video Analysis and Fire Alarm , 256GB MicroSD Slot (not included), Fire detection and alarm, cold/hot spot tracking, people/vehicle classification , BNC/CVBS video output, Alarm, Audio, RS485, RJ45 , IP67 protection ideal for outdoors - For video surveillance systems.
FIND INSTALLER
€2,748.38
€6,391.58 -57%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
DAHUA IP CAMERA ONVIF® POE THERMAL CAMERA - 13MM LENS - VIDEO ANALYSIS AND FIRE ALARM - TPC-BF5401-B13-BM-S2 - S2 VERSION
S2 Version - Resolution 400(H)x300(V) - Vanadium Oxide Uncooled Focal Plane Sensor - 13mm Fixed Lens - H.265 Compression - Dual Stream - ROI - Video Analysis - Fire Alarm - 256GB MicroSD Slot (not included in the package) - BNC/CVBS video output - RS485 - RJ45 10/100M - Audio 1in/1out / Alarm 2in/2out - Artificial intelligence: Fire detection and alarm, cold/hot spot tracking, people/vehicle classification - IP67 protection, ideal for outdoor environments - 24 month manufacturer's warranty.
| THERMAL DETECTION |
|---|
|
Product details
- ONVIF® PoE Bullet Thermal IP Camera - Dahua Pro Series - TPC-BF5401-B13-BM-S2
- Resolution 400(H)x300(V)
- Vanadium Oxide Uncooled Focal Plane Sensor
- 13mm fixed lens
- Visual spectrum from 8 to 14?m
- Thermal Sensitivity: 40mK
- Compression up to codec up to H.265
- Detection of People (up to 382m) and Mobile Vehicles (up to 850m)
- Integrated Video Analysis ( Line crossing, Intrusion)
- Advanced intelligent functions (Fire detection and alarm, cold/hot spot tracking, Human/vehicle classification)
- ROI
- 1 CVBS/BNC Video Output
- Audio: 1 input and 1 output
- Alarm: 2 inputs and 2 outputs
- RS485 port
- 10/100M Ethernet RJ45 port
- MicroSD slot (Max 256GB - not included)
- 12V DC/PoE/ePoE power supply
- IP67 protection, ideal for video surveillance systems set up outdoors
- Operating temperature: -40°C ~+50°C
- Dimensions:103 (W) x 97 (H) x 291 mm)
- Net weight: 1.5Kg
- Material: Made with metal houses
- 24 month manufacturer's warranty
Data sheet
| Model | TPC-BF5401-B13-BM-S2 |
| Room | |
| Sensor Type | Uncooled VOx Microbolometer |
| Effective Pixels | 400(H)x300(V) |
| Pixel Size | 17um |
| Thermal Sensitivity | 40mK |
| Spectral Range | 8~14um |
| ImageSetting | Brightness/Sharpness/ROI/AGC/FFC/3D DNR |
| Color Palettes | 18(Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2 .etc) |
| Thermal Lens | |
| Lens Type | Fixed /F1.0 |
| Focus Control | Athermalized,Focus-free |
| Focus Length | 13mm |
| Angle Of View | H: 30.2° V: 22.6° |
Effective Distance | Man (1.8m*0.5m): Detection:382m Vehicle (4m*1.4m): Detection:850m |
| Video | |
| Compression | H.265 / H.264 / MJPEG |
| Frame Rate | Main Stream: Thermal: 1280x1024 / 720P / 400x300 @25/30fps |
| Bit Rate Control | CBR / VBR |
| Bit Rate | H.264: 640~8192Kbps |
| Motion Detection | Off/On (4 zones, Rectangle) |
| Region Of Interest | off / On (4 zones) |
| Electronic Image Stabilization (EIS) | NA |
| Digital Zoom | 4x(19 levels) |
| Flip | 180° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 area, Rectangle) |
| Audio | |
| Compression | G.711A / G.711Mu / AAC / PCM |
| Intelligence | |
| IVS | Tripwire,Intrusion |
| Advanced Intelligent Functions | Fire detection & alarm, Cold/Hot spot trace, Human/Vehicle classification |
| Network | |
| Ethernet | RJ-45 |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1 x |
| Interoperability | ONVIF® Profile S & G, API |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users/20 Users |
| Edge Storage | Micro SD (256GB) Memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording |
| Web Viewer | >IE8. |
| Management Software | Smart PSS, DSS |
| Smart Phones | Android, IOS |
| Certifications | |
| Certification | CE (EN 60950: 2000) FCC (FCC Part 15 SubpartB) |
| Interface | |
| Video Interface | 1 Port (CVBS/BNC) |
| Audio Interface | 1/1 In/Out |
| RS485 | Support |
| Alarm | 2/2 In/Out |
| Electrical | |
| Power Supply | DC 12V/PoE/ePoE |
| Power Consumption | Max. 13W |
| Environmental | |
| Operating Conditions |
-40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH |
| Storage Conditions | -40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH |
| Ingress Protection | IP67 |
| Construction | |
| Material | Metal |
| Dimensions | 291mm× 103mm× 97mm (11.46" x 4.06" x 3.82") |
| Net Weight | 1.5Kg (3.31lb) |
| Gross Weight | 1.9Kg (4.19lb) |
Further details
 | Thermal Camera... what is it? and how to choose it? |
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation |
 | This camera is a THERMAL CAMERA .
Visual spectrum from 8 to 14µm
|
| Thermal Sensor:
|
 | This camera has a 13mm fixed lens |
 | This camera provides VIDEO ANALYSIS:
|
  | This camera provides advanced intelligent functions: |
 |
This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.  |
 | This camera features the Motion function by connecting it to a recording device having alarm inputs. |
 | This camera has 1 Video Output (CVBS/BNC) |
 | It is extremely useful to also have Inputs/Outputs in a CCTV system to be able to control relays or activate a recording following an event This camera has 2 inputs and 2 outputs |
 | This camera has 1 input + 1 audio output |
 | RS 485 for PTZ Commands (Remotely Controlled Cameras) |
 | Protection level IP67 (Dust / Immersion) |
 | Possibility to insert Micro SD up to a maximum of 256GB - not included |
 | This camera was made of metal |
 | This product is covered by a 24 month warranty. |
