Dahua - TPC-BF4641-B25F8-DW-S2 - Hybrid Thermal + visible Camera - S2 Version - IP POE ONVIF - Double lens and double sensor - Thermal Camera: Thermal resolution 640x512 - 25mm fixed lens - Vox sensor - Visible camera: 8mm lens fixed, 1/2.7" 4MP CMOS sensor (2688x1520) - H.265 Codec - 30m IR illuminator - Day/Night(ICR), WDR, 2D/3D-NR, digital Defog, AWB - Audio and Alarm - 512GB MicroSD slot ( not included) - Video Analysis + Artificial Intelligence with Fire Detection - ePoE support - RS485 - 100M RJ45 LAN - BNC video output - IP67 protection, ideal for outdoor use.
FIND INSTALLER
€2,634.02
€6,125.62 -57%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
HYBRID THERMAL BULLET CAMERA WITH DOUBLE LENS AND DOUBLE SENSOR - VIDEO ANALYSIS - FIRE ALARM - AUDIO - ALARM - TPC-BF4641-B25F8-DW-S2 - S2 VERSION

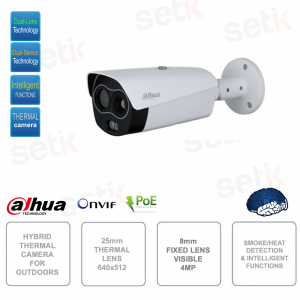

Outdoor POE ONVIF hybrid thermal+visible IP camera - Dahua - TPC-BF4641-B25F8-DW-S2
Product details
- Hybrid Thermal POE ONVIF IP Bullet Camera - Dahua - TPC-BF4641-B25F8-DW-S2
- S2 version
- Dual-Lens Technology: double optics: thermal 25mm / visible 8mm
- Dual-Sensor Technology: 1/2.7" 4MP 2688x1520 CMOS sensor (visible camera) + Vanadium Oxide uncooled focal plane sensor (thermal camera)
- Resolution: 540x512 (thermal optics) / 2688x1520 4MP ( visible optics )
- Visual spectrum from 8 to 14?m
- Integrated Video Analysis (Line Crossing, Intrusion, Object Detection (People / Vehicles), Fire Detection & Smoke Detection Alarm.etc.)
- People detection up to 1040m / Recognition up to 268m / Identification up to 134m
- Mobile vehicle detection up to 2777m / Recognition up to 695m / Identification up to 134m
- Sensitivity 40mK
- 24x digital zoom
- Motion Detection, BLC, HLC, 2D/3D-DNR,WDR, AGC, day/night(ICR)
- IR illuminator up to 30 meters
- 2 alarm inputs and 2 outputs
- 1 audio input and 1 audio output
- microSD-Card slot up to 512GB (not included)
- ePoE protocol supported
- 100M RJ45 LAN interface
- RS485 port
- BNC video output
- Power supply NOT included
- Dimensions: 103.5 (W) x 91.6 (H) x 279.1 mm
- Operating temperature: -30°C ~+70°C
- Net weight of the item 1.4Kg
- 24 month manufacturer's warranty
Data sheet
| TPC-BF4641-B25F8-DW-S2 |
Vanadium oxide uncooled focal plane sensor |
Effective pixels: 640 x 512 |
Pixel size: 12 µm |
Thermal sensitivity (NETD): <40mK |
Spectrum range: 8 ~14 µm |
|
Focal length (thermal): 25 mm |
Angle of view (thermal): 17.6°(H), 14.1°(V) |
Effective distance on people: |
Detection: 1040 metres |
Recognition: 268 metres |
Identification: 134 metres |
Effective distance on vehicles: |
Detection: 2777 meters |
Reconnaissance: 695 metres |
Identification: 134 metres |
24X digital zoom |
Digital detail enhancement |
Automatic and manual thermal gain control |
2D and 3D noise reduction |
18 color palettes |
4 megapixel 1/2.7 CMOS image sensor (view camera) |
Effective pixels: 2688 x 1520 |
30 meter infrared illumination |
Minimum illumination: 0.01 lux (colour), 0.001 lux (B/W), 0 lux IR On |
Focal length (visible optics): 8 mm |
Angle of view (visible optics): 41.3°(H), 23.1°(V) |
Day/night mode with removable mechanical filter. |
Imaging modes: BLC, HLC, WDR, 2D/3D-NR, exposure compensator, digital Defog |
White balance with 8 modes |
Automatic and manual visible gain control |
H.265, H.264 video compression |
G.711A, G.711Mu audio compression |
Visible camera resolution: 4MP (2688x1520), 3.7MP (2560x1440), 1080P (1920x1080), 720P (1280x720), D1 (704x576), CIF (352x288), 256x192 |
Stream 1 thermal: 1280x1024 (default), 1280x720, 640x512 (1~25 ips) |
Stream 2 thermal: 640x512 (default), 320x256 (1~25 ips) |
Stream 1 visible: 4MP, 3.7MP (default), 1080P, 720P, D1 (1~25 ips) |
Stream 2 visible: D1 (default), CIF (1~25 ips) |
Perimeter protection: Cross-line detection, intrusion detection, target (person/vehicle) filtering |
Advanced detection features: Fire detection, hot/cold spot tracking, target tracking, smoke detection, call detection |
BNC video output |
1 audio input / 1 audio output |
2 alarm inputs / 2 alarm outputs |
RS485 port |
Ethernet RJ-45 (10/100M Base-T) |
Network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
Onvif and CGI support |
Up to 20 users |
Compatible with IE, Chrome, Firefox browsers |
MicroSD card slot up to 512GB (card not included) |
Power supply: 12V DC (±20%) / PoE / ePoE |
Power consumption: 3.96W ~ 11W |
Storage temperature from -40°C ~ +70°C |
Operating temperature from -30°C ~+70°C |
Relative humidity: <95%. |
Degree of protection: IP67 |
Dimensions: 103.5 (W) x 91.6 (H) x 279.1 mm |
Weight: 1.4 kg |
Further details
 | Thermal Camera... what is it? and how to choose it? | |||
 |
| |||
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems | |||
  | This camera is a THERMAL CAMERA .
Visual spectrum from 8 to 14µm Thermal camera resolution 640x512
| |||
  | Dual-Lens Technology! - People detection up to 1040m / Recognition up to 268m / Identification up to 134m - Detection of mobile vehicles up to 2777m / Recognition up to 695m / Identification up to 134m  | |||
 | Visible camera resolution 4MP 2688x1520p 1/2.7" 4MP progressive scan CMOS sensor | |||
 | Fixed visible camera optics, 8mm. | |||
 | IR illuminator up to 30m. | |||
| This camera features SMART DETECTION - Intrusion - People / Vehicles Classification - Smoke detection - Detection of hot and cold areas - Fire detection & alarm
| |||
  | This camera is capable of detecting the presence of fire and detecting its temperature.
| |||
  | This camera features BNC Video output This camera has 1 RS-485 port | |||
 |
This camera has 2 inputs and 2 alarm outputs | |||
 | This camera has 1 input + 1 audio output | |||
 | IP67: Guarantees protection from dust and water jets (rain) | |||
 | Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.  | |||
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. | |||
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations  | |||
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.  | |||
 | Possibility of inserting a Micro SD up to a maximum of 512GB | |||
 | This product is covered by a 24 month warranty. |
