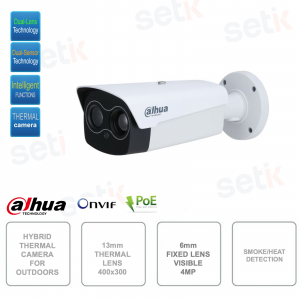

Dahua TPC-BF5441-B13F6-BM-AC-S2 PoE ONVIF IP Hybrid Thermal Bullet Camera outdoor/indoor - S2 version - Thermal module: 13mm optics, Vox Detector sensor - Resolution 400x300 - Visible module: 6mm optics, 1/1.8" 4MP CMOS sensor - 80m IR illumination - WDR - AWB - 3DNR - HLC - BLC - Defog - Artificial intelligence with IVS and heat and smoke/Cold/hot spot detection - Two-way audio - Audio - Alarm - RS485 - RJ45 - 512GB MicroSD slot (not included) - IP67 ideal for outdoors - Anti-corrosion coating.
FIND INSTALLER
€4,737.14
€11,016.60 -57%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
DAHUA IP CAMERA HYBRID THERMAL CAMERA ONVIF® POE - 13MM THERMAL OPTIC - 6MM VISIBLE - VIDEO ANALYSIS AND FIRE ALARM - TPC-BF5441-B13F6-BM-AC-S2 - S2 VERSION
Hybrid Thermal POE ONVIF IP Camera - Dahua - TPC-BF5441-B13F6-BM-AC-S2
Double optics and double image sensor - Thermal module: 13mm optics, Vanadium oxide uncooled focal plane detector sensor, 400x300 resolution - Visible module: 6mm fixed optics, 1/1.8" 4MP CMOS sensor - H.265 codec - IR 80m (visible ) - WDR - AWB - 3DNR - HLC - BLC - Artificial intelligence: Perimeter protection, smoke and heat detection, Cold/Hot spot tracking - Audio 1in/1out - Alarm 2in/2out - RS485 - RJ45 - IP67 protection - 512GB MicroSD slot ( not included) - For outdoor use.
| THERMAL DETECTION |
|---|
|
Product details
- ONVIF® PoE Hybrid Thermal Bullet IP Camera - Dahua - TPC-BF5441-B13F6-BM-AC-S2
- S2 version
- Thermal Module:
13mm lens
Vanadium oxide uncooled focal plane detector sensor
400x300 resolution - Visible form:
6mm fixed lens
1/1.8" progressive scan CMOS sensor
4MP resolution, 2688 (H) × 1520 (V) - Thermal Sensitivity: 35mk
- IR illumination up to 80m
- Compression up to H.265
- Detection of People (382m max.) and Mobile Vehicles (max. 1176m)
- Integrated Video Analysis: Perimeter Protection ( Crossing, Intrusion)
- Advanced intelligent functions (Fire detection and alarm, smoke detection, cold/hot spot tracking, human/vehicle classification)
- ROI, Motion Detection
- 1 CVBS/BNC Video Output
- Audio: 1 input and 1 output
- Alarm: 2 inputs and 2 outputs
- RS485 port
- 100M Ethernet LAN RJ45 port
- MicroSD slot (Max 512GB - not included)
- Power: 12V DC (±20%) / PoE (802.3af) / ePoE
- Power supply NOT included
- Operating temperature: –30 °C to +70 °C
- Dimensions 130.2 (W) x 120.1 (H) x 321 mm
- Net weight: 2.35kg
- Anti-corrosion coating
- IP67 level protection, ideal for video surveillance systems set up in outdoor environments
- Material: Metal
- 24 month warranty
Data sheet
| TPC-BF5441-B13F6-BM-AC-S2 |
Uncooled vanadium oxide uncooled focal plane sensor |
Effective pixels: 400 x 300 |
Pixel size: 17 µm |
Thermal sensitivity (NETD): <35mK |
Spectrum range: 8 ~14 µm |
Focal length (thermal): 13 mm |
Angle of view (thermal): 30.4°(H), 22.5°(V) |
Effective distance on people: |
|
Detection: 382 meters |
Recognition: 98 meters |
Identification: 49 meters |
Effective distance on vehicles: |
Detection: 1176 meters |
Recognition: 289 meters |
Identification: 146 meters |
19X digital zoom |
Thermal imaging modes: Digital Detail Enhancement, Auto and Manual AGC, 2D/3D NR, Mirror, 18 color palettes |
Image sensor (visible camera) 4-megapixel 1/1.8 CMOS |
Effective pixels: 2688 x 1520 |
Infrared illumination up to 80 meters |
Minimum illumination: 0.01 lux (color) / 0.001 lux (B/W) / 0 lux IR On |
Focal length (visible optics): 6 mm |
Viewing angle (visible optics): 55.3°(H), 30°(V) |
Day/night mode with removable mechanical filter |
Visible image modes: BLC, HLC, WDR, 2D/3D-NR, exposure compensator, digital defog, mirror |
White balance with 7 modes |
Automatic and manual gain control |
Supports regions of interest (ROI) |
H.265, H.264 video compression |
Visible camera resolution: 4MP (2688x1520), 3.6MP (2560x1440), 1080P (1920x1080), 720P (1280x720), D1 (704x576), CIF (352x288) |
Thermal Stream 1: 1280x1024, 1280x960 (default), 1280x720, 400x300 (1~25/30 ips) |
Thermal Stream 2: 640x512, 640x480, 400x300 (default) (1~25/30 ips) |
Stream 1 visible: 4MP, 3.6MP (default), 1080P, 720P, D1 (1~25/30 ips) |
Stream 2 visible: D1 (default), CIF (1~25/30 ips) |
Heat detection and cold/hot spot tracking |
Perimeter protection: Cross-line and intrusion detection |
Target distinction with vehicle and person classification |
Target tracking |
Smoke detection |
G.711A, G.711Mu audio compression |
1 audio input / 1 audio output |
2 alarm inputs / 2 alarm outputs |
RS485 port |
BNC video output (not available when installing a junction box) |
RJ-45 Ethernet (10/100M Base-T) |
Network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
Onvif, CGI, SDK support |
Up to 20 users |
Compatible with IE, Firefox, Chrome and Safari browsers |
MicroSD card slot up to 512GB (card not included) |
Power: 12V DC (±20%) / PoE (802.3af) / ePoE |
Power consumption: 5W (basic), 15W (maximum) |
Storage temperature from -40°C ~ +70°C |
Operating temperature from -30°C ~+70°C |
Relative humidity: ≤95%. |
Degree of protection IP67 |
Anti-corrosion coating |
Dimensions: 130.2 (W) x 120.1 (H) x 321 mm |
Net weight: 2.35 kg |
Gross weight: 2.7 kg |
CE, FCC certified |
Further details
 | Thermal Camera... what is it? and how to choose it? |
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation |
 | This camera is a THERMAL CAMERA .
Visual spectrum from 8 to 14µm
|
 | This camera has 13mm fixed (thermal) and 6mm fixed (visible) lenses |
 | Dual-Sensor Technology!
|
 | This camera provides VIDEO ANALYSIS:
|
  | This camera provides advanced intelligent functions: |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.  |
 | This camera features the Motion function by connecting it to a recording device having alarm inputs. |
 | This camera has 1 Video Output (CVBS/BNC) |
 |
It is extremely useful to also have Inputs/Outputs in a CCTV system to be able to control relays or activate a recording following an event This camera has 2 inputs and 2 outputs |
 | This camera has 1 input + 1 audio output |
 | RS 485 for PTZ Commands (Remotely Controlled Cameras) |
 | Protection level IP67 (Dust / Immersion) |
 | Possibility of inserting a Micro SD up to a maximum of 512GB - not included |
 | This camera was made of metal |
 | This product is covered by a 24 month warranty. |
