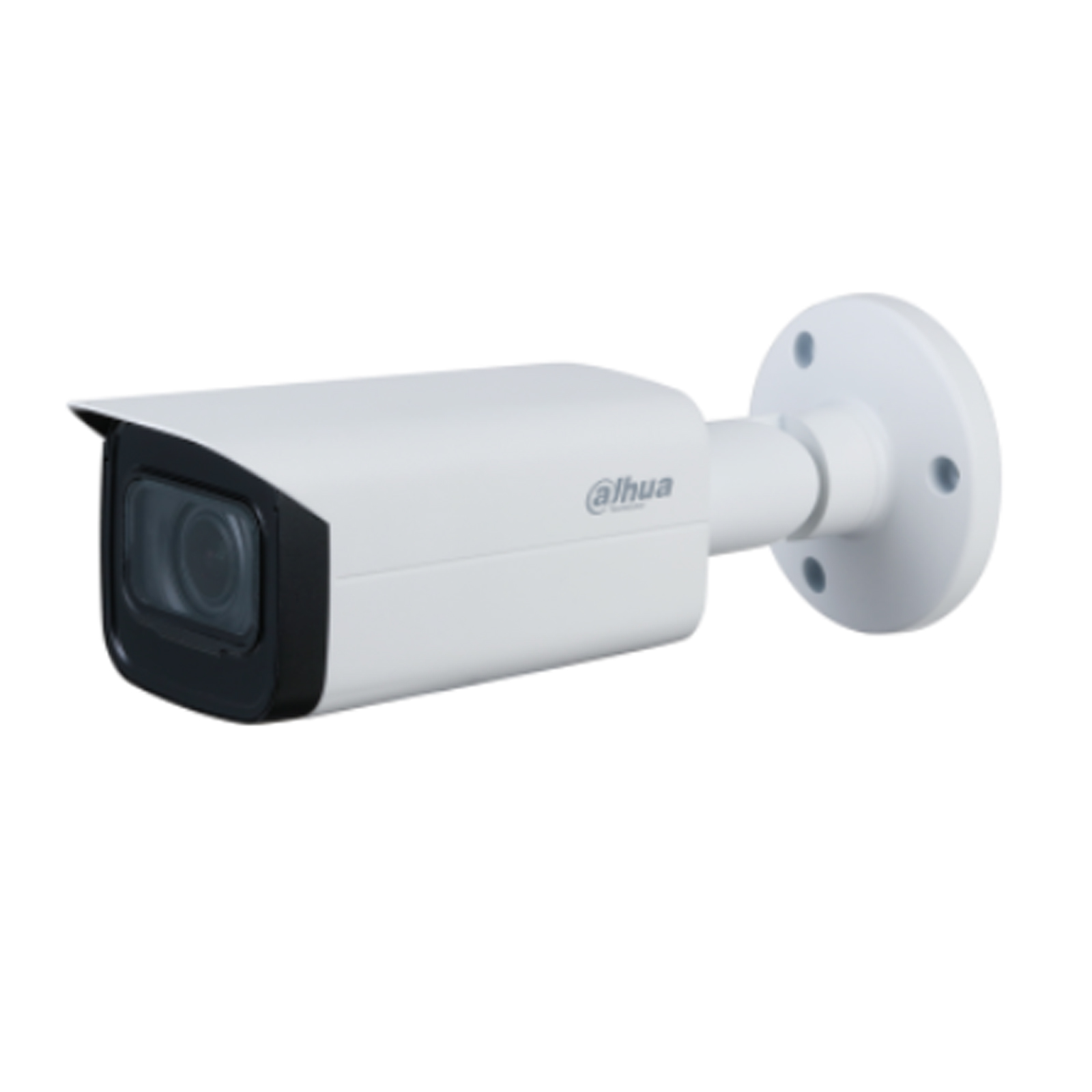

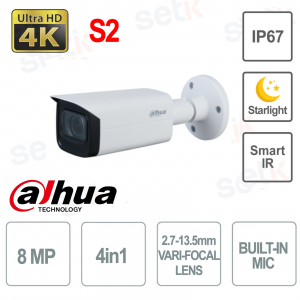

DAHUA BULLET CAMERA 4 IN 1 - 4K-2.7-13.5MM - STARLIGHT - MIC - VERSION 2

BEST PRICE -58%

Dahua HAC-HFW2802TU-ZA-S2 Outdoor camera with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG (Switchable) , 4K CMOS resolution, 3840 (H) × 2160 (V), 2.7-13.5mm motorized varifocal lens with Starlight technology. Smart IR illuminator 4 LEDs up to 80 meters , WDR 120dB , Day/Night (ICR), Audio Input and Built-in Microphone.

244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56")

Reference: HAC-HFW2802TU-Z-A-S2

Brand: Dahua

EAN: 6923172581167

FIND INSTALLER

https://www.setik.biz/en/cameras/9804-dahua-hac-hfw2802tu-z-a-s2-camera-dahua-bullet-4-in-1-4k-27-135mm-starlight-mic-version-2.html

€189.08

€450.18 -58%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical Data Sheet Further Details Download

DAHUA 4 IN 1 8MEGAPIXEL MOTORIZED CAMERA - STARLIGHT IR 4 LEDs 80 METERS AUDIO WDR 120 dB - BUILT-IN MICROPHONE - HAC-HFW2802TU-ZA-S2

Dahua 4 in 1 outdoor camera
HDCVI / HDTVI / AHD / ANALOGUE (Switchable) - 8Megapixel 8MP - 2.7-13.5mm Motorized Lens
CMOS sensor Starlight Technology - Smart IR 4 LEDs 80MT - WDR 120dB
Audio Input + Built-in Microphone - Power supply NOT included - 24 month warranty

Product details

- 4in1 bullet camera - Dahua

- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG (Switchable)

- Technologies switchable via dip switches on coaxial cable

- Resolution: 8 Megapixel 8 MP

- 4K CMOS image sensor with Starlight technology

- Starlight Technology: Color night vision

- Motorized Optics 2.7-13.5mm

- Functions: Day/Night(ICR), BLC, HLC

- WDR 120dB

- 1 Audio input + Built-in Microphone
- IP67 protection (Rain / Diving)
- Smart IR illuminator with 4 quality LEDs with a maximum range of 80 meters.

- 12V DC power supply not included
- Suitable for outdoor and indoor environments

- Dimensions 244.1mm × 90.4mm × 90.4mm (9.61" × 3.56" × 3.56")

- 24 month warranty

Data sheet

Room

Image Sensor

4K CMOS

Max.Resolution

3840(H)×2160(V)

Scanning System

Progressives

Electronic Shutter Speed

PAL: 1/3 s–1/100000 s
NTSC: 1/4 s–1/100000 s

Min. Illumination

0.001 lux@F1.5 (Color, 30 IRE)
0.0001 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

80 m (262.47 ft)

Illuminator On/Off Control

Car

Illuminator Number

4 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized Vari-focal

Auto Focus

Yes

Lens Mount

φ14

Focal Length

2.7mm–13.5mm

Max. Openings

F1.5

Field of View

H: 113°–47°; V: 60°–26°; D: 133°–53°

Iris Control

Fixed

Close Focus Distance

1.2 m (3.94 ft)

Video

Video Frame Rate

CVI: PAL: 4K@15fps;5M@25fps; 4M@25fps
NTSC: 4K@15fps;5M@25fps; 4M@30fps
AHD: PAL: 4K@15fps; NTSC: 4K@15fps
TVI: PAL: 4K@15fps; NTSC: 4K@15fps
CVBS: PAL: 960H; NTSC: 960H

Resolution

4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120dB

White Balance

Auto; White balance area

Gain Control

Auto/Manual

Noise Reduction

3D NO

Illumination Mode

Smart IR

Defog

Electronic defog

Digital Zoom

4×

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Audio Input

One channel built-in MIC

Power

Power Supply

12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 10.9 W (12 VDC, IR on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperatures

–30 °C to +60 °C (–22 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56")

Net Weight

0.79 kg (1.74 lb)

Gross Weight

1.1 kg (2.43 lb)

Installation

Wall mount; ceiling mount; vertical pole mount

Further details

	HD-CVI is the new technology in the world of video surveillance. By simply replacing the equipment (cameras and DVRs) in the analogue infrastructure, the resolution can reach up to 1920X1080 (FULL-HD). In this way it is possible to obtain the same results as the IP world but with a high cost containment. Attention: Analog and IP cameras are NOT compatible with HD-CVI DVRs, and HD-CVI cameras are not compatible with Analog DVRs.
	This camera is a QUADRIBRID (4 integrated technologies) These cameras are at the same time, Analog , AHD , Hdcvi and Hdtvi . Switch Technologies: The camera can switch from HDCVI to HDTVI, AHD or Analog via dip switches on coaxial cable
	8MP resolution
	This camera features motorized optics with various focal lengths 2.7-13.5mm
	4K CMOS sensor with STARLIGHT technology. Low brightness, visibility at 0.0001Lux, color vision even in night mode With this CMOS sensor it is possible to have color shots even in night mode. Normally, when you enter night mode, color vision becomes black/white. With the SENSOR present, night shots will be clear and in color
	Infrared illuminator with approximate maximum range of 80m This camera also features SMART IR technology. Through this technology, the light emitted by the LEDs is adapted depending on the object framed.
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
	This camera features 1 audio input + Built-in microphone
	Allows you to adapt the lens to Night/Day vision
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from the inside towards the outside, etc.) the compensation of the light is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations Click to enlarge
	Protection level IP67 (Dust / Immersion)
	12VDC power supply not included
	This product is covered by a 24 month warranty.
