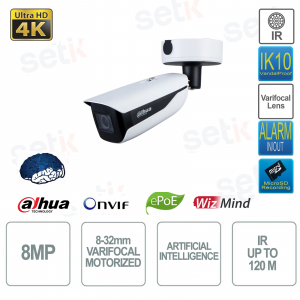

ePoE ONVIF® IP Bullet Camera - 8MP - 8-32mm varifocal lens - Artificial intelligence - S3 version

-58%

IPC-HFW5842H-Z4HE-S3 Dahua AI Onvif ePoE external IP camera with Artificial Intelligence , 8 Megapixel 8MP , 4K, 1/1.8" CMOS sensor 8-32mm optics with motorized zoom and compression up to H.265+. 4 LED Smart IR illuminator 120m , video metadata, intelligent sound detection, IVS, face detection, intelligent object detection and people counting, Day/Night (ICR), WDR 120dB, Video Analysis , EIS, ROI, Defog, MicroSD Slot, Audio & Alarm, RS485, IP67/IK10 - 512 GB MicroSD slot - S3 version

Reference: IPC-HFW5842H-Z4HE-S3

Brand: Dahua

FIND INSTALLER

https://www.setik.biz/en/cameras/9799-dahua-ipc-hfw5842h-z4he-s3-IP-bullet-camera-epoe-onvif-8mp-optical-8-32mm-varifocal-artificial-intelligence-version-s3.html

€636.91

€1,516.46 -58%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical Data Sheet Further Details Download

OUTDOOR ONVIF® POE IP CAMERA - 8 MEGAPIXEL WITH ARTIFICIAL INTELLIGENCE - S3 VERSION - DAHUA - IPC-HFW5842H-Z4HE-S3

ONVIF® ePoE IP Bullet Camera - AI Series - S3 Version - Dahua - IPC-HFW5842H-Z4HE-S3
8Megapixel resolution - 2.7-12mm motorized varifocal lens - CMOS 1/1.8" - Day/Night (ICR) - WDR 120dB - 3DNR - EIS - Defog - IR 4 LEDs 120m - Artificial Intelligence: video metadata, intelligent sound detection, IVS, face detection, intelligent object detection and people counting - 1in/1out audio - 3in/2out alarm - RS485 - 512GB MicroSD slot (not included) - Made of plastic and metal - Protection: IP67 and IK10 - Ideal for outdoors.

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the artificial intelligence used is that which allows the creation of advanced devices for environmental analysis.

Product details

PoE external AI IP camera - Dahua - IPC-HFW5842H-Z4HE-S3
S2 version
8Megapixel 4K ULTRA HD resolution
8-32 mm varifocal lens with motorized zoom
1/1.8” CMOS sensor
Video compression up to H.265+ Smart Codec
Triple Stream
WDR 120dB - Day/Night (ICR) - 3DNR,AWB,AGC,BLC
Smart IR illuminator 4 LEDs 120m
Artificial Intelligence : Video metadata, intelligent sound detection, IVS, face detection, intelligent object detection and people counting
Remote viewing with DMSS
Audio : 1 Input + 1 Output
Alarm : 3 Inputs + 2 Outputs
RS485: 1 (baud rate range:1200 bps–115200 bps)
Micro SD memory slot (Up to 512GB - not included)
IP67 protection (indoor/outdoor)
IK10 protection from vandalism
Material: Metal + Plastic
Dimensions: 345.6mm × 134.2mm × 135.1mm
Weight: 1.6Kg
Operating temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Power supply NOT included
24 month manufacturer's warranty

Data sheet

IPC-HFW5842H-Z4HE-S2
Technical Specs
Room
Image Sensor		1/1.8”CMOS
Max.Resolution		3840(H)×2160(V)
ROM		4GB
RAM		2GB
Scanning System		Progressives
Electronic Shutter Speed		Auto/Manual 1/3 s–1/100,000 s
Min. Illumination		0.0008 lux@F1.6 (Color, 30 IRE) 0.0004 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio		>56 dB
Illumination Distance		Up to 120 m (393.70 ft) (IR)
Illuminator On/Off Control		Car; manual; zoomprio
Illuminator Number		4 (IR LED)
Pan/Tilt/Rotation Range		Pan: 0-360° Tilt: 0-90° Rotation: 0-360°
Lens
Lens Type		Motorized vari-focal
Mount Type		Module
Focal Length		8mm–32mm
Max. Openings		F1.6
Field of View		H: 42°–15°; V: 23°–9°; D: 48°–17°
Iris Control		Car
Iris Control Type		P-Iris
Close Focus Distance		1.5 m (4.92 ft)

Intelligence
EPTZ	Yes
IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Smart Object Detection	Smart abandoned object; smart missing object
SMD	SMD 3.0
AcuPick	Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
TO SSA	Yes
Face Detection	Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting	Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Video Metadata	Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Smart Sound Detection	Yes
Heat Map	Yes Certification
Certifications	CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14, UL 50E NEMA Type 4X (optional)
Port
RS-485	1 (baud rate range:1200 bps–115200 bps)
Audio Input	1 channel (terminal)
Audio Output	1 channel (terminal)
Alarm Input	3 channels in: 5 mA 3–5 VDC
Alarm Output	2 channels out: 1,000 mA 30 VDC/500 mA 50 VDC
Analog Output	1 channel (CVBS output: BNC)
Power Output	12 VDC power output, max. current 165 mA, peak current 700 mA
Power
Power Supply	12 VDC/24 VAC/PoE (802.3at)/ePoE
Dual Power Backup	When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption	Basic: 4.6W (12VDC); 5.8W (24VAC); 6.6W (PoE) Max. (Focus+WDR+ Intelligence on+IR on): 13.4 W (12 VDC); 15.7W (24VAC); 16.7W (PoE) Heating: 3W (12VDC); 3.6W (24VAC); 3.8W (PoE)

Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95%
Storage Temperatures	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	10%–95% (RH), non-condensing
Protection	IP67, IK10
Structure
Casing	Metal + plastic
Product Dimensions	345.6 mm × 134.2 mm × 135.1 mm (13.61" × 5.28" × 5.32") (L × W × H)
Net Weight	1.6 kg (3.5 lb)
Gross Weight	2.4kg (5.3lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera is ONVIF® compatible
	Dahua's in-house designed ePoE technology adopts advanced 2D-PAM3 modulation from the physical layer and realizes full duplex transmissions over 800 meters at the speed of 10 Mbps, or 300 meters at the speed of 100 Mbps via Cat 5 or coaxial cable. Dahua ePoE technology offers a new way to realize long-distance transmission between IP camera and network switch. It allows for more flexible surveillance system design, improves reliability and saves construction and cabling costs.
	AI \| Artificial intelligence This camera features Artificial Intelligence on board This means it has a wide range of advanced features such as: - People counting: following crossing line or area - Perimeter protection: Intrusion, line crossing (people&vehicle classification) - Heat map - SMD 3.0 - Face detection - Smart search
	Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	This camera has a resolution of 8 Megapixel 8 MP :
	2.7-12 mm varifocal lens with motorized zoom Motorized zoom example
	Main stream: 3840 × 2160@ (1–25/30 fps) Sub stream: D1@ (1–25/30 fps) Third stream: 1080p@ (1–25/30 fps) Fourth stream: 720p@ (1–10 fps)
	IR illuminator with 4 LEDs and maximum range 120 meters!
	Remote visibility on mobile using the Dahua DMSS application.
	This DVR features 1 audio input + 1 audio output
	This camera has 3 inputs + 2 alarm outputs
	RS485 directly on the camera. Allows you to control PTZ movements remotely.
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
	Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
	This camera features EIS function. The EIS (image stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable
	It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
	Protection level IP67 (Dust / Immersion)
	IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism
	Possibility to insert Micro SD up to a maximum of 512Gb - not included
	Power supply NOT included
	This product is covered by a 24 month warranty.
