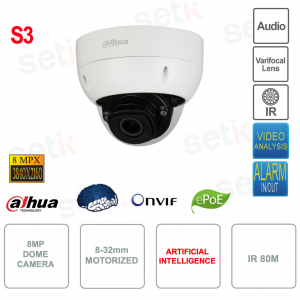

ONVIF® 8MP PoE IP Dome Camera - Varifocal 8-32mm - IR 80m - Artificial Intelligence - S3

Room

Image Sensor

1/1.8”CMOS

Max.Resolution

3840(H)×2160(V)

ROM

4GB

RAM

2GB

Scanning System

Progressives

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0008 lux@F1.6 (Color, 30 IRE)
0.0004 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

80 m (262.47 ft)

Illuminator On/Off Control

Car; manual; zoomprio

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–80°
Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Mount Type

Module

Focal Length

8mm–32mm

Max. Openings

F1.6

Field of View

H: 42°–15°; V: 23°–9°; D: 48°–17°

Iris Control

Car

Iris Control Type

P-Iris

Close Focus Distance

1.5 m (4.92 ft)

Intelligence

EPTZ

Yes

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Smart Object Detection

Smart abandoned object; smart missing object

SMD

SMD 3.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

TO SSA

Yes

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

People Counting

Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.

Heat Map

Yes

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Smart Sound Detection

Yes

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codecs

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 3840×2160 (1fps–25/30fps)
Sub stream: D1 (1 fps–25/30 fps)
Third stream: 1080p (1 fps–25/30 fps)
Fourth stream: 720p@(1–10 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

4 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560×1440); 3M (2048 × 1535/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32kbps–16384kbps
H.265: 12kbps–13568kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120dB

Scene Self-adaptation (SSA)

Yes

White Balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Car

Noise Reduction

3D NO

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520)resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Built-in MIC

Yes, built-in dual Mic

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception

Network

Network Port

RJ-45 (10/100 Enhancement Base-T)

SDK and API

Yes

Cyber Security

Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Firmware encryption;Generation and importing of X.509 certification

Network Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP

Interoperability

ONVIF® (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 80M)

Storage

FTP; SFTP; Micro SD card (Support max. 512G); NAS

Browsers

IE: IE 9 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14, UL 50E NEMA Type 4X (optional)

Port

RS-485

1 (baud rate range:1200 bps–115200 bps)

Audio Input

1 channel (terminal)

Audio Output

1 channel (terminal)

Alarm Input

3 channels in: 5mA 3–5 VDC

Alarm Output

2 channels out: 1,000 mA 30 VDC/500 mA 50 VDC

Analog Output

1 channel (CVBS output: built-in 2 pins (testing)

Power Output

12 VDC power output, max. current 165 mA, peak current 700 mA

Power

Power Supply

12 VDC/24 VAC/PoE (802.3at)/ePoE

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 4.8W (12VDC); 6W (24VAC); 5.8W (PoE)
Max. (Focus+WDR+ Intelligence on+IR on): 12.7 W (12 VDC); 15.6W (24VAC); 15.8W (PoE)
Heating: 3W (12VDC); 3.8W (24VAC); 3.9W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperatures

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–95% (RH), non-condensing

Protection

IP67, IK10

Structure

Casing

Metal

Product Dimensions

Φ158mm × 129.1mm (Φ6.2" × 5.1")

Net Weight

1.1kg (2.4lb)

Gross Weight

1.6 kg (3.5 lb)
