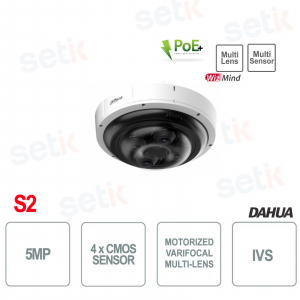

IPC-PDBW82041-B360-S2 Dahua ONVIF PoE+ Multi-lens Dome Outdoor IP Panoramic Camera. 1/2.7" 5 Megapixel CMOS sensor, 2.8-12mm motorized optics. Smart IR 8 LEDs up to 30 meters. ICR, BLC, HLC, WDR DWDR, 3D-DNR, ROI, Privacy Mask. IVS , Perimeter protection, Facial recognition, People counting, Smart search . 1 Audio input/1 output. 3 Alarm inputs/2 outputs. MicroSD slot up to 256 GB. IP67 protection, IK10. Dahua Technology
FIND INSTALLER
€1,201.58
€2,860.90 -58%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
MULTI-LENS PANORAMIC DOME CAMERA - 4X5MP MULTI-SENSOR - SMART IR 30M - IVS - AUDIO/ALARM DAHUA
Resolution 2592x1944 - Motorized Multi Lens 2.8-12mm - Multi Sensor 4x CMOS 1/2.7" 5 Megapixel
IR illuminator 8 LEDs 30M - WDR DWDR - IVS - ROI - Privacy Mask - Perimeter Protection - Facial Recognition - People Counting - Intelligent Search - Audio/Alarm - RS485
Product details
- ONVIF® PoE+ Multi-lens Dome Panoramic Outdoor IP Camera - Dahua
- Resolution 2592x1944 5Megapixel
- Multi Motorized Lens 2.8-12mm
- Multi Sensor : 4x 1/2.7" CMOS Sensor
- Smart H.264+/ H.265+
- ICR, AWB, AGC, BLC, HLC, 3D-DNR
- WDR 120dB
- Privacy Mask, ROI
- Smart IR illuminator 8 LEDs 30MT
- IVS: Tripwire, Intrusion, rapid movement
- Perimeter Protection, Facial Recognition, People Counting, Intelligent Search
- Audio: 1 input + 1 output
- Alarm: 3 inputs + 2 outputs
- RS485
- Web5.0 interface design
- MicroSD slot (Max 256GB - not included)
- IP67 protection (Dust / Immersion)
- IK10 protection (Vandalism)
- PoE+ protocol (802.3at)
- 12V DC power supply (not included)
- Dimensions: 111.3mm × Φ286.1mm (4.38" × Φ11.26")
- 24 month warranty
Data sheet
| ROOM | |
| Model | IPC-PDBW82041-B360-S2 |
| Image Sensor | 1/2.7”5Megapixel progressive CMOS |
| Effective Pixels | 2592 (H) × 1944 (V) |
| ROM | 8GB |
| RAM | 4GB |
| Scanning System | Progressives |
| Electronic Shutter | Auto/Manual 1/3 s–1/100,000 s |
| Minimum Illumination | 0.005 Lux@F1.7(Color,30IRE) 0.0005 Lux@F1.7(B/W,30IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | 30 m (98.4 ft) (IR LED) |
| Illuminator On/Off Control | Auto / Manual |
| Illuminator Number | 8 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–80° Rotation: 0°–355° |
| LENS | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.8mm–12mm |
| Max Openings | F1.7 |
| Field of View | H: 100°–42°; V: 74°–32°; D: 133°–53° |
| Iris Type | Fixed |
| Close Focus Distance | 0.8 m (2.6 ft) |
| SMART EVENT | |
| IVS | Abandoned object; missing object |
| PROFESSIONAL, INTELLIGENT | |
| IVS (Perimeter Protection) | Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| PeopleCounting | Tripwire people counting and people counting in area; generating and exporting reports (day/month/year); queue management and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| VIDEO | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codecs | Smart H.265+/Smart H.264+ |
| Video Frame Rate | Single Stream: |
| Stream Capability | 3 streams |
| Resolution | Single Stream: 5M (2592 × 1944); 2560 × 1440; 3M (2048 × 1536); 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240); |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32kbps–17152kbps H.265: 12kbps–10240kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NO |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Yes |
| Image Rotation | Yes |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| AUDIO | |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| ALARM | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; people counting in area; stay detection; abnormal number of people detection; people counting; people stay detection; security exception |
| NETWORK | |
| Network | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF®(Profile S/Profile G/Profile T); CGI; Milestones; Genetec; RTMP; P2P |
| User/Host | 20 |
| Storage | FTP; SFTP; Micro SD card (support max. 256G); NAS |
| Browsers | IE: IE9 and later |
| Management Software | Smart PSS, DSS |
| Cyber Security | Configuration encryption; trusted execution; Digests; security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
| CERTIFICATIONS | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC:47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| PORT | |
| RS485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 3 channel in: 5mA 3V–5V DC |
| Alarm Output | 2 channel out: 300mA 12V DC |
| POWER | |
| Power Supply | 12V DC/POE+(802.3at) |
| Power Consumption | Basic power consumption: 7.4 W (12 VDC); 9.3W (PoE) |
| ENVIRONMENT | |
| Operating Conditions | –30°C to +60°C (–22°F to +140°F) |
| Operating Humidity | ≤95% |
| Storage Conditions | –30°C to +60°C (–22°F to +140°F) |
| Protection Grade | IP67; IK10; anti-corrosion protection (optional) |
| STRUCTURES | |
| Casing | Metal+Plastic |
| Dimensions | 286.1 mm × 111.3 mm (11.3" × 4.4") |
| Net Weight | 2.75 kg (8.9 lb) |
| Gross Weight | 4.5 kg (11.0 lb) |
Further details
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera supports the ONVIF® standard |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation This camera has the PoE+ 802.3at protocol |
 | 5MP resolution, means 12 times the resolution of a common D1 camera : |
 | Multi-Lens Technology!
|
| Multi-Sensor Technology! This camera is equipped with 4x 1/2.7" CMOS sensors |
| Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | 8 LED infrared illuminator with an approximate maximum range of 30m |
 | This camera features SMART DETECTION: - Line crossing - Intrusion - Rapid movement
|
 | This camera features the INTELLIGENT FUNCTION: - Facial Detection |
| 1 Input + 1 Audio Output. |
 | This camera has 3 inputs + 2 alarm outputs |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.  |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | Automatic Gain Control, with the possibility of independently adjusting the sensitivity in particular conditions of use  |
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations  |
 |
3D-NR is the most advanced version of NOISE REDUCTION management. It allows still images in the presence of low light and in movement. It is currently the most powerful solution for obtaining maximum results in the presence of low light. |
 | Protection level IP67 (Dust / Immersion) |
 | IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism
|
 | Possibility of inserting a Micro SD up to a maximum of 256GB |
 | A 12V DC power supply is required to operate the camera (not included)  |
 | This product is covered by a 24 month warranty. |
