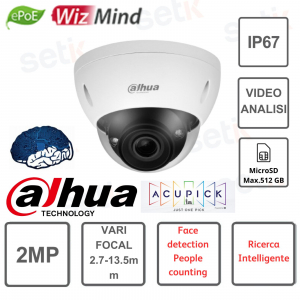

DAHUA-2MP-DOME CAMERA Vari-focal 2.7-13.5mm - Vandal-proof

-57%

IPC-HDBW5241E-ZE-S3 Dahua AI Outdoor PoE IP Camera with Artificial Intelligence , 2 Megapixel 2MP , 1/2.8" CMOS sensor, 2.7mm-13.5mm motorized varifocal lens , H.265+ . Smart IR illuminator 3 LED 40MT , Day/Night (ICR), WDR 120dB, Face Capture, Perimeter Protection, People Counting , Acupick Video Analysis, EIS, ROI, Defog, MicroSD Slot, Audio, Alarm, IP67, IK10

Reference: IPC-HDBW5241E-ZE-S3

Brand: Dahua

FIND INSTALLER

https://www.setik.biz/en/cameras/9772-dahua-ipc-hdbw5241e-ze-s3-dahua-camera-2mp-dome-vari-focal-27-135mm-vandal-proof-.html

€320.53

€745.42 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Technical Sheet Further Details Download

- DAHUA-IPC-HDBW5241E-ZE-S3 ONVIF® POE OUTDOOR IP CAMERA - 2 MEGAPIXEL WITH ARTIFICIAL INTELLIGENCE

ONVIF® PoE IP Camera - Dahua AI Series
2Megapixel Resolution - 2.7-13.5mm motorized lens - 1/2.8" CMOS - H.265+
IR Illuminator 3 LED 40MT - Day/Night (ICR) - WDR 120dB - Video Analysis - Audio/Alarm
Artificial Intelligence: Face Detection / Perimeter Protection / People Counting / Smart Object Detection / AcuPick Search

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the AI used is that which allows the creation of advanced devices, for environmental analysis.

Product details

ONVIF® PoE Outdoor IP AI Camera - Dahua
Resolution 2Megapixel FULL HD 1080P
Motorized varifocal optics 2.7-13.5 mm
1/2.8" CMOS sensor
Video compression up to H.265+
Four Streams
WDR 120dB - Day/Night (ICR) - 3DNR,BLC
Motion detection - ROI - EIS - Defog
IR Illuminator 3 LED 40MT
Artificial Intelligence : Face Capture, Perimeter Protection, People Counting
Standard Video Analysis: Abandoned / Lost Objects
AcuPick Dahua AcuPick technology is a video search engine that uses both front-end and back-end AI to quickly locate the information you need. You can use it to find a lost person, locate a specific vehicle, or retrieve video evidence needed to report an accident.
Remote viewing with DMSS
Audio : 1 Input + 1 Output
Alarm : 2 Input + 1 Output
BNC Video Output
Micro SD memory slot (Up to 512GB - not included)
IP67 / IK10 protection (indoor/outdoor)
Material: Metal
Power supply NOT included
Dimensions:Φ159.1mm × 118.1mm (6.26" × Φ4.65")
24 month warranty

Technical data sheet

Room

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

4 GB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0007 lux@F1.5 (Color, 30 IRE)
0.0004 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)

Y/N Ratio

>56dB

Illumination Distance

Up to 40 m (131.23 ft) (IR)

Illuminator On/Off Control

Auto; Zoomprio; Manual

Illuminator Number

3 (IR LEDs)

Angle Adjustment

Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7mm–13.5mm

Max. Openings

F1.5

Field of View

H: 109°–30°; V: 56°–17°; D: 131°–35°

Iris Control

Car

Close Focus Distance

0.8 m (2.62 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Smart Object Detection

Smart abandoned object; smart missing object

SMD

SMD 3.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

TO THE SSA

Yes

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

People Counting

Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management; generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.

Heat Map

Yes

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.

SmartSearch

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Smart Sound Detection

Yes

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 1080p@(1–25/30 fps)
Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

4 streams

Resolution

1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bitrate Control

CBR/VBR

Video Bitrate

H.264: 32kbps–12032kbps; H.265: 12kbps–7424kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120dB

Scene Self-adaptation (SSA)

Yes

White Balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Car

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

LDC

Yes

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection

Network

Network Port

RJ-45 (10/100 Enhancement Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 80M)

Storage

FTP; SFTP; Micro SD card (support max. 512GB); NAS

Browser

IE: IE 9 and later

Chrome: Chrome 102 and later

Firefox:Firefox 88 and later

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Configuration encryption; trusted execution; Digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

2 channels in: wet contact, 5mA 3V–5V DC

AlarmOutput

1 channel out: wet contact, 300mA 12V DC

Power

Power Supply

12 VDC/24 VAC/PoE (802.3af)/ePoE

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 3W (12VDC); 3.5W (24VAC); 4.6W (PoE)
Max. (H.265+ WDR+ Intelligence on+IR on): 9.2 W (12 VDC); 10.8W (24VAC); 11.5W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–95% (RH), non-condensing

Protection

IP67; IK10

Structure

Casing Material

Metal

Product Dimensions

Φ159.1mm × 118.1mm (6.26" × Φ4.65")

Net Weight

0.91 kg (2.01 lb)

Gross Weight

1.22 kg (2.69 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera is ONVIF® compatible

	AI \| Artificial Intelligence This camera features Artificial Intelligence on board - Face Capture : Face capture is a software application that automatically captures faces from within a digital image or video frame from a video source . Dahua cameras use advanced deep learning algorithms , which consist of a large number of sources that contain facial data, allowing the camera to quickly and accurately detect faces from the video source and capture facial images. - Face Attribute : Through the use of deep learning algorithms to analyze facial images, Dahua cameras can extract up to six facial attributes from each frame , such as gender, age, expression (happy, calm, surprised, sad, and angry), glasses, masks, and mustaches. Customers can gain valuable data through facial attribute statistics. - People counting: after crossing a line or zone - Perimeter protection: Intrusion, Line crossing (people & vehicles classification)
	Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
	This camera features a resolution of 2Megapixel 1080P FULL HD
	Motorized 2.7-13.5mm varifocal lens
	1/2.8" CMOS sensor
	Dahua AcuPick technology is a video search engine that effectively uses AI, both front-end and back-end, to quickly locate the information you need. Use it to find a lost person, locate a specific vehicle, or find video evidence needed to report an accident.

	Infrared illuminator 3 LED with approximate maximum range of 40m This camera also features SMART IR technology. Through this technology, the light emitted by the LEDs is adapted depending on the object being framed.
	Remote visibility on mobile using Dahua DMSS application.
	This camera features VIDEO ANALYSIS (IVS): - Abandoned / lost objects
	This DVR features 1 audio input + 1 audio output
	This camera has 1 input + 1 alarm output
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
	Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
	This camera features EIS function. The EIS (Image Stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outside on poles where atmospheric conditions can make the image unstable.
	It allows you to clearly see images taken in particular weather conditions: rain, smoke and fog
	Protection level IP67 (Dust / Immersion)
	IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism
	Possibility to insert Micro SD up to a maximum of 512 GB - not included
	Power supply NOT included
	This product is covered by a 24 month warranty.
