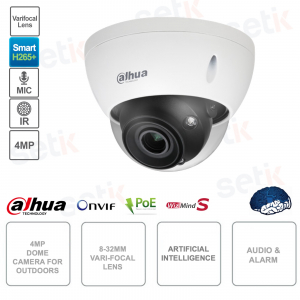

POE ONVIF Dome IP camera - 4MP - 8-32mm varifocal lens - Artificial intelligence - S3

-57%

IPC-HDBW5442E-Z4E-S3 Dahua AI External IP camera and PoE ONVIF , S3 Version, with Artificial Intelligence , 4 Megapixel 4MP , 1/1.8" CMOS sensor, 8 mm–32 mm Varifocal lens with motorized zoom, compression up to H.265 + . Smart IR illuminator 3 LEDs 8 0MT , Day/Night (ICR), WDR 140dB, Face capture and face attributes, Perimeter protection, People counting, video metadata Analysis (Abandoned and lost objects, Heat map) , Audio, Alarm , MicroSD slot, IP67/IK10

Reference: IPC-HDBW5442E-Z4E-S3

Brand: Dahua

FIND INSTALLER

https://www.setik.biz/en/cameras/9765-dahua-ipc-hdbw5442e-z4e-s3-ip-camera-poe-onvif-dome-4mp-varifocal-optics-8-32mm-artificial-intelligence-s3.html

€513.58

€1,194.38 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical data sheet Further Details Download

ONVIF® EPOE OUTDOOR IP CAMERA - 4MP RESOLUTION - ARTIFICIAL INTELLIGENCE - VIDEO ANALYSIS - AUDIO - ALARM - IP67/IK10 - DAHUA - IPC-HDBW5442E-Z4E-S3

ONVIF® ePoE IP camera - Dahua AI Series - IPC-HDBW5442E-Z4E-S3
S3 version - 4 Megapixel resolution - 8 mm–32 mm varifocal lens with motorized zoom - 1/1.8" CMOS - Compression up to H.265+
IR illuminator 3xLEDs 80M - Day/Night (ICR) - WDR 140dB - Audio/Alarm - 512GB MicroSD slot (not included) -
Artificial Intelligence: Intelligent Object Detection / SMD / AcuPick / People Counting / Face Detection / Heat Map / Metadata / Smart Search / Smart Sound Detection

Video Analysis: (Intrusion, crossing the line, rapid movement, aggregation of people)

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the artificial intelligence used is that which allows the creation of advanced devices for environmental analysis.

Product details

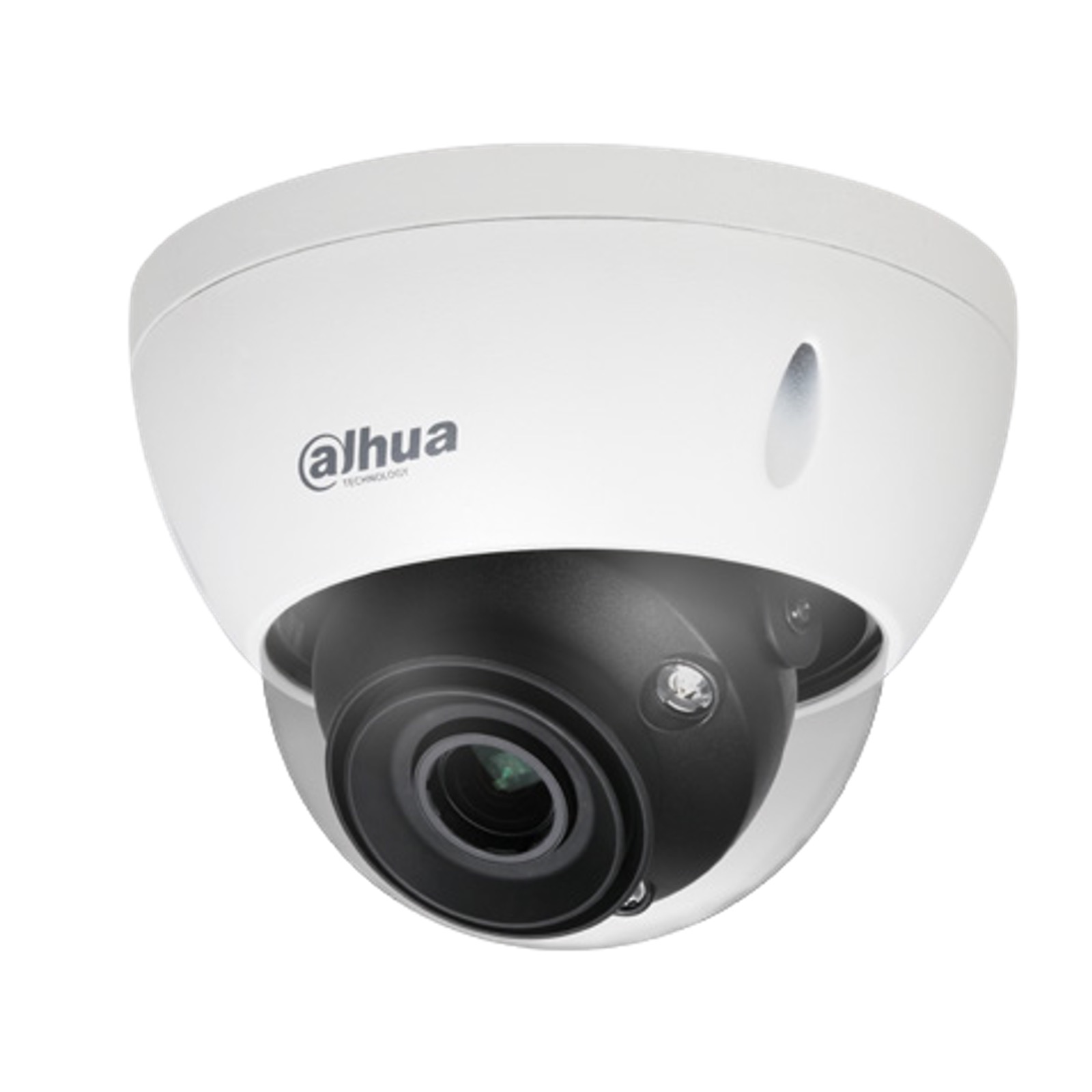

IPC-HDBW5442E-Z4E telecamera AI IP ONVIF® PoE 2MP AUdio allarme

Onvif ePoE external AI IP camera - Dahua - IPC-HDBW5442E-Z4E-S3
S3 version
4 Megapixel 4MP 268x1520p resolution
Varifocal lens 8 mm–32 mm with motorized zoom
4MP 1/1.8 sensor
Starlight Technology: Color night vision
Video compression up to H.265+
4x Video Stream
WDR 140dB - Day/Night (ICR) - 3DNR,AWB,AGC,BLC,EIS
Smart IR illuminator 3 LEDs 80M
Artificial Intelligence : Face capture and facial attributes, Perimeter protection, People Counting, Metadata, AcuPick
Standard Video Analysis: Intrusion, line crossing, fast movement, people aggregation
Remote viewing with DMSS / P2P
Audio : 1 Input + 1 Output
Alarm : 2 Inputs + 1 Output
Microphone on board
Micro SD memory slot (Up to 512GB - not included )
IP67 protection (indoor/outdoor)
IK10 protection from vandalism
Material: Metal and plastic

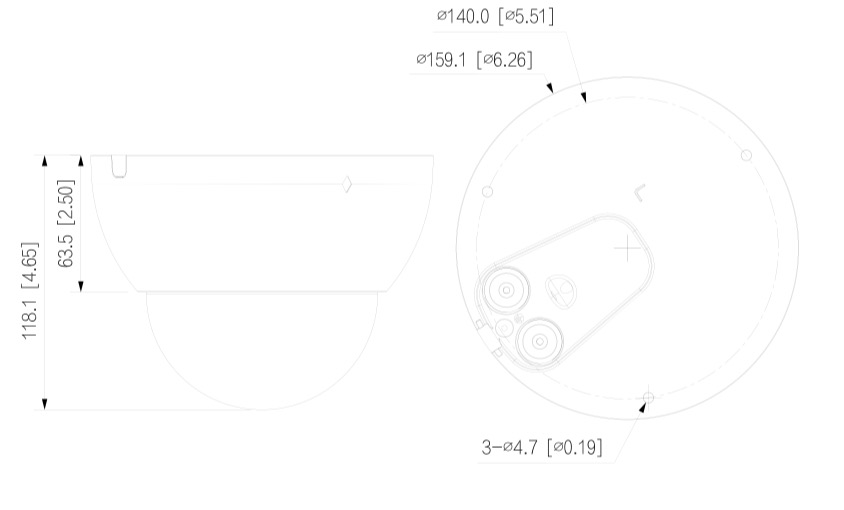

Dimensions: Φ159.1mm × 118.1mm
Weight: 0.98kg
Operating temperature: –30 °C to +60 °C
Power supply NOT included
24 month warranty

Data sheet

20 (Total bandwidth: 80M)

IPC-HDBW5442E-Z4E-S3

Room

Image Sensor

1/1.8" CMOS

Max.Resolution

2688(H)×1520(V)

ROM

4GB

RAM

1GB

Scanning System

Progressives

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0007 lux@F1.6 (Color, 30 IRE)
0.0004 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 80 m (262.47 ft) (IR)

Illuminator On/Off Control

Car; Zoomprio; Manual

Illuminator Number

3 (IR LED)

Angle Adjustment

Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Lens Mount

Module

Focal Length

8mm–32mm

Max. Openings

F1.6

Field of View

H: 43°–15°; V: 24°–9°; D: 50°–17°

Iris Control

Car

Close Focus Distance

1.5 m (4.92 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Smart Object Detection

Smart abandoned object; smart missing object

SMD

SMD 3.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting

PeopleCounting

Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.

Heat Map

Yes

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Storage

FTP; SFTP; Micro SD card (support max. 512GB); NAS

Browsers

IE: IE 9 and later

Chrome: Chrome 102 and later

Firefox: Firefox 88 and later

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Cyber Security

Configuration encryption; trusted execution; Digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

2 channels in: wet contact, 5mA 3V–5V DC

Alarm Output

1 channel out: wet contact, 300mA 12V DC

Power

Power Supply

12 VDC/24 VAC/PoE (802.3af)/ePoE

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 3.3W (12VDC); 3.9W (24VAC); 5.1W (PoE)
Max. (H.265+ WDR+ Intelligence on+IR on): 8.8 W (12 VDC); 10.3W (24VAC); 11.2W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperatures

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–95% (RH), non-condensing

Protection

IP67; IK10

Structure

Casing Material

Metal + plastic

Product Dimensions

Φ159.1 mm × 118.1 mm (6.26" × Φ4.65")

Net Weight

0.98kg (2.16lb)

Gross Weight

1.29 kg (2.84 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera is ONVIF® compatible
	Dahua's in-house designed ePoE technology adopts advanced 2D-PAM3 modulation from the physical layer and realizes full duplex transmissions over 800 meters at the speed of 10 Mbps, or 300 meters at the speed of 100 Mbps via Cat 5 or coaxial cable. Dahua ePoE technology offers a new way to realize long-distance transmission between IP camera and network switch. It allows for more flexible surveillance system design, improves reliability and saves construction and cabling costs.
	AI \| Artificial intelligence This camera features Artificial Intelligence on board - Face Capture : Face capture is a software application that automatically captures faces from within a digital image or video frame from a video source . Dahua cameras use advanced deep learning algorithms , trained by a large number of sources that encompass facial data, allowing the camera to quickly and accurately locate faces from the video source and capture facial images. - Face Attribute : Through the use of deep learning algorithms to analyze facial images, Dahua cameras can extract up to six facial attributes from each frame , such as gender, age, expression (happy, calm, surprised, sad, and angry), glasses, masks and moustaches. Customers can gain valuable data via facial attribute statistics. - Face Detection : Once the facial features are extracted from the captured faces, they are stored in a database where other images can be easily searched and compared. Once a match is found, the system outputs the result file. The Dahua Face Recognition camera supports a built-in database that stores up to 10,000 facial images , helping the camera achieve real-time acquisition and comparison. - Line crossing : The counting of people will start when a previously set line is crossed. - Perimeter crossing : The counting of people will start when they enter a previously set area.
	Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	This camera features a resolution of 4Megapixels 1/1.8” 4Megapixel progressive scan CMOS image sensor
	This camera features an 8mm –32mm Varifocal lens
	1/1.8" sensor with Starlight technology With this sensor it is possible have color shots even in night mode.
	Quality IR illuminator for better night vision. Approximate maximum range approximately 80 meters This camera also features SMART IR technology. Through this technology, the light emitted by the LEDs is adapted depending on the object framed.
	Remote visibility on mobile using the Dahua DMSS application.
	This camera also provides basic video analysis functions: - *Recognition of lost and abandoned objects* *-Heat map*
	This DVR features 1 audio input + 1 audio output
	This camera has 2 inputs + 1 alarm output
	ULTRA WDR up to 140dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
	Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
	It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
	Protection level IP67 (Dust / Immersion)
	IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism
	Possibility of inserting a Micro SD up to a maximum of 512GB - not included
	Power supply NOT included
	This product is covered by a 24 month warranty.
