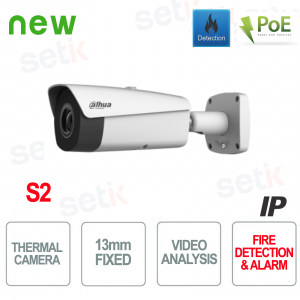

Dahua PoE IP Camera Thermal Camera 13mm Video Analysis and Fire Alarm - S2

Dahua PoE IP Camera Thermal Camera 13mm Video Analysis and Fire Alarm - S2
-57%

Dahua TPC-BF5401-B13-S2 PoE ONVIF IP camera for outdoor/indoor use with 400(H)x300(V) resolution, uncooled VOx Microbolometer sensor and 13mm fixed lens. H.265, Motion Detection, ROI, Video Analysis and Fire Alarm , MicroSD Slot, Fire detection and alarm, cold/hot spot tracking, people/vehicle classification, BNC/CVBS video output, Alarm, Audio, RS485, Alarm, IP67 Protection TPC-BF5401-B13-S2



Reference: TPC-BF5401-B13-S2

Brand: Dahua

FIND INSTALLER

€3,060.52

€7,117.48 -57%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


DAHUA IP CAMERA ONVIF® POE 13MM THERMAL CAMERA - VIDEO ANALYSIS AND FIRE ALARM

Made by Setik
Thermal IP Bullet Camera - Lite Dahua
Resolution 400(H)x300(V) - Non-cooled VOx microbolometer sensor - 13mm fixed lens - H.265 compression
Motion Detection - ROI - Video Analysis - Fire alarm - MicroSD slot - Video output - RS485 - Audio/Alarm
Fire detection and alarm, cold/hot spot tracking, people/vehicle classification - IP67 protection - 24 month warranty

THERMAL DETECTION



Product details

Telecamera Videosorveglianza IP Bullet Termica 13mm
  • ONVIF® PoE Bullet Thermal IP Camera - Dahua Pro Series
  • Resolution 400(H)x300(V)
  • Uncooled VOx Microbolometer sensor
  • 13mm fixed lens
  • Visual spectrum from 8 to 14μm
  • Thermal Sensitivity: 40mK
  • Compression up to H.265
  • Detection of People (from 49 to 382m) and Mobile Vehicles (from 109 to 850m)
  • Integrated Video Analysis ( Crossing, Intrusion)
  • Advanced intelligent functions (Fire detection and alarm, cold/hot spot tracking, Human/vehicle classification)
  • ROI, Motion Detection
  • 1 CVBS/BNC Video Output
  • Audio: 1 input and 1 output
  • Alarm: 2 inputs and 2 outputs
  • RS485 port
  • MicroSD slot (Max 256GB - not included)
  • 12V DC/PoE/ePoE power supply
  • Power supply NOT included
  • Dimensions 291mm× 103mm× 97mm (11.46" x 4.06" x 3.82")
  • Material: Metal
  • 24 month warranty

Data sheet

Model TPC-BF5401-B13-S2
Room
Sensor Type Uncooled VOx Microbolometer
Effective Pixels 400(H)x300(V)
Pixel Size 17um
Thermal Sensitivity 40mK
Spectral Range 8~14um
ImageSetting Brightness/Sharpness/ROI/AGC/FFC/3D DNR
Color Palettes 18(Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2 .etc)
Thermal Lens
Lens Type Fixed /F1.0
Focus Control Athermalized,Focus-free
Focus Length 13mm
Angle Of View H: 30.2° V: 22.6°

Effective Distance

Man (1.8m*0.5m):

Detection:382m
Recognition:98m
Identification:49m

Vehicle (4m*1.4m):

Detection:850m
Recognition:219m
Identification:109m

Video
Compression H.265 / H.264 / MJPEG
Frame Rate

Main Stream: Thermal: 1280x1024 / 720P / 400x300 @25/30fps
Sub Stream: Thermal: 640x512 / 400x300 @25/30fps

Bit Rate Control CBR / VBR
Bit Rate H.264: 640~8192Kbps
Motion Detection Off/On (4 zones, Rectangle)
Region Of Interest off / On (4 zones)
Electronic Image Stabilization (EIS) NA
Digital Zoom 4x(19 levels)
Flip 180°
Mirror Off / On
Privacy Masking Off / On (4 area, Rectangle)
Audio
Compression G.711A / G.711Mu / AAC / PCM
Intelligence
IVS Tripwire,Intrusion
Advanced Intelligent Functions Fire detection & alarm, Cold/Hot spot trace, Human/Vehicle classification
Network
Ethernet RJ-45
Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1 x

Interoperability ONVIF® Profile S & G, API
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage Micro SD (256GB) Memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording
Web Viewer >IE8.
Management Software Smart PSS, DSS
Smart Phones Android, IOS
Certifications
Certification CE (EN 60950: 2000) FCC (FCC Part 15 SubpartB)
Interface
Video Interface

1 Port (CVBS/BNC)

Audio Interface

1/1 In/Out

RS485

Support

Alarm

2/2 In/Out

Electrical
Power Supply

DC 12V/PoE/ePoE

Power Consumption

Max. 13W

Environmental
Operating Conditions

-40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH
* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH

Ingress Protection

IP67

Construction
Material

Metal

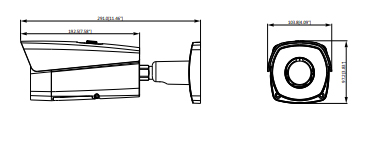

Dimensions

291mm× 103mm× 97mm (11.46" x 4.06" x 3.82")

Net Weight

1.5Kg (3.31lb)

Gross Weight

1.9Kg (4.19lb)

Further details

Thermal Camera... what is it? and how to choose it?

Read our article!

Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems
PoE power supply

The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation

This camera is a THERMAL CAMERA .


Sensitivity 40mK

Visual spectrum from 8 to 14µm

Thermal Sensor:
Uncooled VOx Microbolometer

Ottica fissa 3.6mm

This camera has a 13mm fixed lens
People Detection: From 49 to 382m
Mobile Vehicle Detection: From 109 to 850m

This camera provides VIDEO ANALYSIS:
- Line crossing
- Intrusion


This camera provides advanced intelligent functions:
- Fire detection and alarm

Funzione ROI This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
Ultra Smart Funzione ROI
Funzione Motion Detection This camera features the Motion function by connecting it to a recording device having alarm inputs.

This camera has 1 Video Output (CVBS/BNC)

Full HDIt is extremely useful to also have Inputs/Outputs in a CCTV system to be able to control relays or activate a recording following an event
This camera has 2 inputs and 2 outputs
Ingresso Audio This camera has 1 input + 1 audio output
Dual Encoding RS 485 for PTZ Commands (Remotely Controlled Cameras)
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256GB - not included

This camera was made of metal

Dual Encoding This product is covered by a 24 month warranty.

Downloads

Download the English brochure
