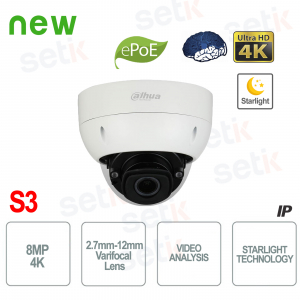

ONVIF® PoE 8MP EPTZ Motorized Starlight WDR Dahua S3 IP Camera

-57%

Outdoor PoE ONVIF IP camera Dahua IPC-HDBW5842H-ZHE-S3 Dome 8Megapixel 8 MP 1/1.8" CMOS with Starlight Technology and motorized 2.7-12mm optics. H.265+ , 4 0M Smart IR LED illuminator , Day/Night (ICR), Ultra WDR(120dB) , Video Analysis , Face Detection , Object Detection, Counting people, Audio, Alarm, P2P, MicroSD slot, IP67, IK10

Reference: IPC-HDBW5842H-ZHE-S3

Brand: Dahua

FIND INSTALLER

https://www.setik.biz/en/cameras/9756-dahua-ipc-hdbw5842h-zhe-s3-ip-camera-onvif-poe-8mp-eptz-motorized-starlight-wdr-dahua-s3.html

€605.91

€1,409.10 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Technical Data Sheet Further Details Download

OUTDOOR IP CAMERA ONVIF® POE DAHUA 8 MEGAPIXEL MOTORIZED - STARLIGHT - ARTIFICIAL INTELLIGENCE

Outdoor ONVIF® ePoE Dahua IP camera
8Megapixel Resolution - 2.7-12mm Motorized Optics - CMOS 1/1.8" Starlight - H.265+ - Artificial Intelligence and Video Analysis
IR illuminator 3 LEDs 40M - Day/Night(ICR) - WDR 120dB - Audio/Alarm - MicroSD slot

Product details

Telecamera IP Dahua 2MP IVS WDR Audio Allarme Slot microsd ePOE

Dahua outdoor ONVIF® PoE IP camera
8Megapixel 8MP ULTRA HD resolution
2.7-12mm lens with motorized zoom
1/1.8” progressive CMOS image sensor with Starlight Technology
Starlight Technology: Color night vision
Video Compression up to H.265+
Triple stream
Ultra WDR(120dB) , Day/Night(ICR), 3DNR,AWB,AGC,BLC
Video Analysis (abandoned/lost objects, movement of objects)
Advanced Intelligent Features : video metadata, intelligent sound detection, IVS, face detection, intelligent object detection and people counting
Smart IR illuminator 3 LEDs 40M
Remote viewing with Dahua DMSS application
Cloud P2P with Lechange application (formerly Easy4ip)
Alarm : 3 input + 2 output
Audio : 1 input + 1 output
Built-in dual microphone
MicroSD slot (Max 256GB - not included)
IP67 protection (Dust/Immersion) - Indoor/Outdoor
IK10 Protection (Vandalism)
Dimensions: Φ158mm × 129.1mm (6.22" × Φ5.08")
Power 12V DC/24V AC/PoE (802.3at)/ePoE ( Power supply NOT included )
Metal
Quality product
24 month warranty

Data sheet

Model	IPC-HDBW5842H-ZHE-S3
Room
Image Sensor	1/1.8” 8Megapixel progressive CMOS
Effective Pixels	3840(H)×2160(V)
RROM/RAM	4GB / 2GB
Scanning System	Progressives
Electronic Shutter speed	Auto/Manual 1/3 s–1/100000 s
Min. Illumination	0.0007 lux@F1.2 (Color, 30 IRE) 0.0003 lux@F1.2 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>56 dB
IR Distance	Distance up to 40 m (131.23 ft)
IR On/Off Control	Car; Zoomprio; Manual
IR LEDs	3 (IR LEDs)
Pan/Tilt/Rotation Range	Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355°
Lens
Lens Type	Motorized Vari-focal
Mount Type	φ14
Focal Length	2.7mm-12mm
Max Openings	F1.2
Field Of view	H: 114°–48°; V: 59°–27°; D: 143°–56°
Iris Control	Car
Iris Control Type	P-Iris
Close Focus Distance	1.75 m (5.74 ft)
Professional, intelligent
EPTZ	Yes
(IVS) Perimeter Protection	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Smart Object Detection	Smart abandoned object; smart missing object
SMD	SMD 3.0
AcuPick	Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
TO SSA	Yes
Face Detection	Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting	Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map	Yes
Video Metadata	Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Smart Sound Detection	Yes
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codecs	Smart H.265+; Smart H.264+
AI Coding	AI H.265; AI H.264
Video Frame Rate	Main Stream: 3840 × 2160 (1–25/30 fps) Sub Stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–10 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	4 streams
Resolution	8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560×1440); 3M (2048 × 1535/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32Kbps–16384Kbps H.265: 12Kbps–13568Kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120dB
Scene Self-adaptation (SSA)	Yes
White Balance	Car; natural; street lamp; outdoor; manual; regional custom
Gain Control	Car
Noise Reduction	3D DNR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest(RoI)	Yes (4 areas)
Image Stabilization	Electronic Image Stabilization (EIS)
Smart IR	Yes
Defog	Yes
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520)resolution and lower)
Mirror	Yes
Privacy Masking	8 areas
LDC	Yes
Audio
Built-in MIC	Yes, built-in dual Mic
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception
Network
Network Port	RJ-45 (10/100 Enhancement Base-T)
SDK and API	Yes
Network Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI
User/Host	20 (Total bandwidth: 80M.)
Storage	FTP; SFTP; Micro SD card (support max. 512GB); NAS
Browsers	IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS, Android
Cyber Security	Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Firmware encryption;Generation and importing of X.509 certification
Certifications
Certifications	CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14, UL 50E NEMA Type 4X (optional)
Port
RS-485	1 (Bit rate: 1200 bps-115200 bps)
Audio Input	1 channel (terminal)
Audio Output	1 channel (terminal)
Alarm Input	3 channels in: wet contact, 5mA 3V–5V DC
Alarm Output	2 channels out: dry contact, 1,000mA 30V DC/500mA 50V AC
Analog Output	1 channel (CVBS output: built-in 2 pins (testing)
Power Output	12 VDC power output, max. current 165 mA, peak current 700 mA
Power
Power Supply	12 VDC/24 VAC/PoE (802.3at)/ePoE
Dual Power Backup	When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption	Basic: 4.9W (12VDC); 6.2W (24VAC); 5.9W (PoE) Max. (Focus+WDR+ Intelligence on+IR on): 13.3 W (12 VDC); 16.3W (24VAC); 16.4W (PoE) Heating: 3W (12VDC); 3.8W (24VAC); 3.9W (PoE)
Environment
Operating Temperature	-40°C to +60°C (-40°F to +140°F)
Storage Temperatures	≤95%
Storage Temperatures	-40°C to +60°C (-40°F to +140°F)
Storage Humidity	10%–95% (RH), non-condensing
Ingress Protection	IP67, IK10
Structure
Casing	Metal
Dimensions	Φ158mm × 129.1mm (6.22" × Φ5.08")
Net Weight	1.1 kg (2.43 lb)
Gross Weight	1.6 kg (3.53 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera supports the ONVIF® standard
	Dahua's in-house designed ePoE technology adopts advanced 2D-PAM3 modulation from the physical layer and realizes full duplex transmissions over 800 meters at the speed of 10 Mbps, or 300 meters at the speed of 100 Mbps via Cat 5 or coaxial cable. Furthermore, it supports PoE and PoC power technology which has greatly simplified both construction and cabling. Dahua ePoE technology offers a new way to realize long-distance transmission between IP camera and network switch. It allows for more flexible surveillance system design, improves reliability and saves construction and cabling costs.
	This camera has a resolution of 8Megapixels
	1/1.8" CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode With this CMOS sensor it is possible to have color shots even in night mode. Normally, when you enter night mode, color vision becomes black/white. With the SENSOR present, night shots will be clear and in color
	Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	This camera features 2.7-12mm varifocal optics with Motorized Zoom Video Example:
	Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–10 fps)
	Infrared illuminator with approximate maximum range of 40m This camera also features SMART IR technology. Through this technology, the light emitted by the LEDs is adapted depending on the object framed.
	Remote visibility on mobile using the Dahua DMSS application.
	Cloud function with Lechange (formerly Easy4IP)
	This camera provides VIDEO ANALYSIS (SMART DETECTION): - Abandoned / Lost items - Movement of objects - Perimeter protection - People Counting
	This camera also includes ADVANCED INTELLIGENT FUNCTIONS: - Face Detection Example image:
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.
	This camera features 1 Audio Input + 1 Audio Output
	This camera has 3 Alarm Inputs + 2 Alarm Outputs
	It allows you to adapt the lens to night/day vision and the consequent management of the IR illuminator automatically.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
	BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations
	Protection level IP67 (Dust / Immersion)
	IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism
	12V DC power supply not included
	Possibility of inserting a Micro SD up to a maximum of 256Gb - not included
	This product is covered by a 24 month warranty.
