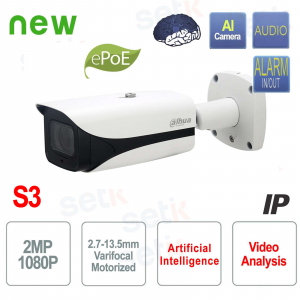

IPC-HFW5241E-ZE-S3 Dahua AI Outdoor PoE IP Camera with Artificial Intelligence , 2 Megapixel 2MP , 1/2.8" CMOS sensor, 2.7-13.5 lens with motorized zoom, H.265+ . Smart IR illuminator 4 LED 60MT , Day/Night (ICR), WDR 120dB, Face Capture and Face Attributes, Perimeter Protection, People Counting , Video Analysis, Microphone, MicroSD Slot, Audio, Alarm, IP67,IK10
FIND INSTALLER
€326.83
€760.06 -57%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
ONVIF® POE OUTDOOR IP CAMERA - 2 MEGAPIXEL WITH ARTIFICIAL INTELLIGENCE - DAHUA
2Megapixel Resolution - 2.7-13.5mm Lens with Motorized Zoom - 1/2.8" CMOS - H.265+
IR Illuminator 4 LED 50MT - Day/Night (ICR) - WDR 120dB - Video Analysis - Audio/Alarm
Artificial Intelligence: Face Capture / Face Attribute / Perimeter Protection / People Counting
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- ONVIF® PoE Outdoor IP AI Camera - Dahua
- Resolution 2Megapixel FULL HD 1080P
- 2.7-13.5mm varifocal lens with motorized zoom
- 1/2.8" CMOS sensor
- Video compression up to H.265+
- Triple Stream
- WDR 120dB - Day/Night (ICR) - 3DNR,AWB,AGC,BLC
- Motion detection - ROI - EIS - Defog
- 4 LED IR Illuminator 60MT
- Artificial Intelligence : Face Capture, Face Attributes, Perimeter Protection, People Counting
- Standard Video Analysis: Abandoned / Lost Objects
- Remote viewing with DMSS
- Audio : 1 Input + 1 Output
- Alarm : 2 Inputs + 1 Output
- BNC Video Output
- Microphone
- Micro SD memory slot (Up to 256GB - not included)
- IP67 / IK10 protection (indoor/outdoor)
- Material: Metal
- Power supply NOT included
- Dimensions: 273.2mm×95.0mm×95.0mm
- 24 month warranty
Technical data sheet
| Model | IPC-HFW5241E-ZE-S3 |
| Room | |
| Image Sensor | 1/2.8” 2Megapixel progressive scan CMOS |
| Effective Pixel | 1920 (H) × 1080 (V) |
| ROM | 4GB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3 s – 1/100000 s |
| Min. Illumination | 0.0007 lux@F1.5 (Color, 30 IRE) |
| Y/N Ratio | >56dB |
| Illumination Distance | Up to 60 m (196.85 ft) (IR) |
| Illuminator On/Off Control | Auto; Zoomprio; Manual |
| IR LEDs | 4 |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Focus Control | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7mm – 13.5mm |
| Max Openings | F1.5 |
| Angle of View | H: 109°–30°; V: 56°–17°; D: 131°–35° |
| Opening Type | Car |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Artificial Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| Smart Object Detection | Smart abandoned object; smart missing object |
| SMD | SMD 3.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management; generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
| SmartSearch | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Smart Sound Detection | Yes |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate |
Main stream: 1080p@(1–25/30 fps) |
| Streaming Capability | 4 Streams |
| Resolution | 1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280×720)/D1 (704×576/704×480)/VGA (640×480)/CIF (352×288/352×240) |
| Bitrate Control | CBR/VBR |
| Bitrate | H.264: 32kbps–12032kbps H.265: 12kbps–7424kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Car |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zones, Rectangle) |
| Region Of interest | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes |
| Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Ethernet | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
| User/Host | 20 (Total bandwidth: 80M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512GB); NAS |
| Browser | IE: IE 9 and later |
| Management Software | Smart PSS, DSS, P2P |
| Smartphone | IOS, Android |
| Cyber Security | Configuration encryption; trusted execution; Digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: wet contact, 5mA 3V–5V DC |
| AlarmOutput | 1 channel out: wet contact, 300mA 12V DC |
| Power | |
| Power Supply | 12VDC/PoE (802.3af)/ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 3.4W (12VDC); 4.5W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 9.3 W (12 VDC); 11.6W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10%–95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 273.2 mm × 95.0 mm × 95.0 mm (10.76" × 3.74" × 3.74") (L × W × H) |
| Net Weight | 1.12 kg (2.47 lb) |
| Gross Weight | 1.66 kg (3.66 lb) |
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera is ONVIF® compatible |
 | This camera features ECO-SAVVY 3.0 technology! Improvements introduced: - More powerful chip that combines intelligence, efficiency and ease of use. - Higher FPS starting from 1080P resolution - Wide range of built-in functions: Intelligent detection, including face detection, tripwire detection and intrusion detection. - Starlight Technology - WDR enhancement technology (120dB) - Triple video streams
|
|
AI | Artificial Intelligence - Face Capture : Face capture is a software application that automatically captures faces from within a digital image or video frame from a video source . Dahua cameras use advanced deep learning algorithms , which consist of a large number of sources that contain facial data, allowing the camera to quickly and accurately detect faces from the video source and capture facial images. - Face Attribute : Through the use of deep learning algorithms to analyze facial images, Dahua cameras can extract up to six facial attributes from each frame , such as gender, age, expression (happy, calm, surprised, sad, and angry), glasses, masks, and mustaches. Customers can gain valuable data through facial attribute statistics. - People counting: after crossing a line or zone - Perimeter protection: Intrusion, Line crossing (people & vehicles classification) |
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
|
 | This camera features a resolution of 2Megapixel 1080P FULL HD 1/2.8" CMOS sensor |
 | 2.7-13.5mm varifocal lens with motorized zoom Motorized zoom example |
 |
|
 | Infrared illuminator with 4 LEDs and maximum range of 60 meters! |
 | Remote visibility on mobile using Dahua DMSS application. |
 | This camera features VIDEO ANALYSIS (IVS): |
 | This DVR features 1 audio input + 1 audio output |
 | This camera has 2 inputs + 1 alarm output |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where you have to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical frequencies of the IR. |
 | This camera has ROI function. The images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure low bandwidth usage and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring greater definition. of the image.  |
 |
This camera features EIS function. The EIS (Image Stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable.  |
 | It allows you to clearly see images taken in particular weather conditions: rain, smoke and fog   |
 | Protection level IP67 (Dust / Immersion) |
 | IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism
|
 | BNC video output present |
 | Possibility to insert Micro SD up to a maximum of 256Gb - not included |
 | Power supply NOT included  |
 | This product is covered by a 24 month warranty. |
