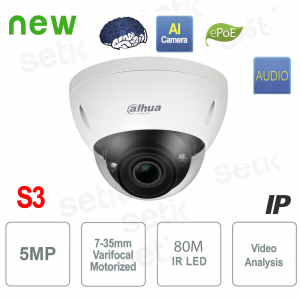

AI IP Camera ONVIF® PoE 5MP 7-35mm Motorized WDR IR80 IK10 Dahua - S3

-57%

AI PoE ONVIF outdoor IP camera Dahua IPC-HDBW5541E-Z5E-S3 dome 5Megapixel 5 MP with Artificial Intelligence , 1/2.7" CMOS sensor and 7-35mm motorized lens. H.265+ , 80M Smart IR LED illuminator, Day/Night (ICR), Ultra WDR(120dB) , ROI, SVC, EIS, Defog, Face Detection, Perimeter Protection, People Counting, Metadata, Audio, Alarm, MicroSD Slot, IP67, IK10

Reference: IPC-HDBW5541E-Z5E-S3

Brand: Dahua

FIND INSTALLER

https://www.setik.biz/en/cameras/9753-dahua-ipc-hdbw5541e-z5e-s3-ai-ip-camera-onvif-poe-5mp-7-35mm-motorized-wdr-ir80-ik10-dahua-s3.html

€447.48

€1,040.66 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Technical Data Sheet Further Details Download

5 MEGAPIXEL OUTDOOR IP CAMERA - 7-35MM MOTORIZED - VIDEO ANALYSIS AND ARTIFICIAL INTELLIGENCE

Outdoor ePoE ONVIF® IP camera - AI Series - Dahua
5Megapixel 5 MP - 7-35mm Motorized Lens - 1/2.7" CMOS Sensor - Up to H.265+ -
IR illuminator 3 LEDs 80M - Day/Night(ICR) - WDR 120dB - Deof/ROI/EIS - Audio / Alarm - Video Analysis
Artificial Intelligence: Perimeter Protection / People Counting / Face Detection / Metadata

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the artificial intelligence used is that which allows the creation of advanced devices for environmental analysis.

Product details

Dahua outdoor ONVIF® PoE AI IP camera
5Megapixel 5MP resolution
Motorized 7-35mm lens
1/2.7" progressive CMOS image sensor
Video Compression up to H.265+
Triple stream
Ultra WDR(120dB) , Day/Night(ICR), ROI, EIS, Defog
Artificial Intelligence : Perimeter Protection / People Counting / Face Detection / Metadata
Standard Video Analysis: (abandoned/lost objects)
Smart IR illuminator 3 LEDs 80M
Remote viewing with Dahua DMSS application
Alarm : 1 input + 1 output
Audio : 1 input + 1 output
Video Output: 1 port (for settings only)
MicroSD slot (Max 256GB - not included)
ePoE protocol: Full Duplex transmission: 800m at 10Mbps, or 300m at 100Mbps via Cat5 or coaxial cable
IP67 protection (Dust/Immersion) - Indoor/Outdoor
IK10 Protection (Vandalism)
Dimensions: Φ159.1 mm × 118.1 mm (6.26" × Φ4.65")
Power supply 12 VDC/24 VAC/PoE ( Power supply NOT included )
Metal
Quality product
24 month warranty

Data sheet

Model	IPC-HDBW5541E-Z5E-S3
Room
Image Sensor	1/2.7” 5Megapixel progressive scan CMOS
Effective Pixels	2960(H)×1668(V)
ROM	4GB
RAM	1 GB
Scanning System	Progressives
Electronic Shutter speed	Auto/Manual, 1/3 s–1/100000 s
Min. Illumination	0.0009 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
IR Distance	Distance up to 80 m (262 ft)
IR On/Off Control	Car; Zoomprio; Manual
IR LEDs	3
Angle Adjustment	Pan: 0°–355° Tilt: 0°–65° Rotation: 0°–355°
Lens
Lens Type	Motorized vari-focal
Mount Type	Module
Focal Length	7mm–35mm
Max Openings	F1.6
Angle Of view	H: 30°–11°; V: 17°–6°; D: 35°–13°
Close Focus Distance	1.5 m (4.92 ft)
Artificial Intelligence
IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Smart Object Detection	Smart abandoned object; smart missing object
SMD	SMD 3.0
AcuPick	Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
TO SSA	Yes
Face Detection	Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
PeopleCounting	Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management; generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map	Yes
Video Metadata	Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Smart Sound Detection	Yes
Video
Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codecs	Smart H.265+; Smart H.264+
AI Coding	AI H.265; AI H.264
Video Frame Rate	Main stream: 2960 × 1668@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability	4 Streams
Resolution	5M (2960 × 1668); 5M (2880 × 1620); 4M (2688 × 1520); 3.6M (2560×1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 32kbps–16384kbps H.265: 12kbps–11776kbps
Day/Night	Auto(ICR)/Color/B/W
BLC Mode	Yes
HLC	Yes
WDR	120dB
Scene Self-adaptation (SSA)	Yes
White Balance	Car; natural; street lamp; outdoor; manual; regional custom
Gain Control	Car
Noise Reduction	3D DNR
Motion Detection	Off / On (4 Zones, Rectangle)
Region Of interest	Yes (4 Areas)
Image Stabilization	Electronic Image Stabilization (EIS)
Defog	Yes
Image Rotation	Support
Digital Zoom	0°/90°/180°/270° (Support 90°/270° with 4M (2688 ×1520) resolution and lower)
Mirror	Yes
Privacy Masking	8 areas
Audio
Built-in MIC	Yes
Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection
Network
Ethernet	RJ-45 (10/100 Base-T)
SDK and API	Yes
Network Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI
User/Host	Unicast / Multicast
Max. User Access	20 (Total bandwidth: 80M)
Storage	FTP; SFTP; Micro SD card (support max. 512GB); NAS
Browsers	IE: IE 9 and later Chrome: Chrome 102 and later Firefox:Firefox 88 and later
Management Software	SmartPSS Lite; DSS; DMSS
Smartphones	IOS, Android
Cyber Security	Configuration encryption; trusted execution; Digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
Certification
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	2 channels in: wet contact, 5mA 3V–5V DC
Alarm Output	1 channel out: wet contact, 300mA 12V DC
Power
Power Supply	12 VDC/24 VAC/PoE (802.3af)/ePoE
Dual Power Backup	When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption	Basic: 3.7W (12VDC); 4.4W (24VAC); 5.4W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 9.2 W (12 VDC); 10.8W (24VAC); 11.6W (PoE)
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	≤95%
Dimensions	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	10%–95% (RH), non-condensing
Protection	IP67; IK10
Structure
Casing Material	Metal
Product Dimensions	Φ159.1 mm × 118.1 mm (6.26" × Φ4.65")
Net Weight	0.98kg (2.16lb)
Gross Weight	1.29 kg (2.84 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera supports the ONVIF® standard
	This camera features ECO-SAVVY 3.0 technology! Improvements introduced: - Most powerful chip that combines intelligence, efficiency and ease of use. - Higher FPS starting from 1080P resolution - Wide range of built-in functions: intelligent detection, including face detection, tripwire detection and intrusion detection. - Starlight technology - WDR enhancement technology (120dB) - Triple video streams
	Dahua's in-house designed ePoE technology adopts advanced 2D-PAM3 modulation from the physical layer and realizes full duplex transmissions over 800 meters at the speed of 10 Mbps, or 300 meters at the speed of 100 Mbps via Cat 5 or coaxial cable. Furthermore, it supports PoE and PoC power technology which has greatly simplified both construction and cabling. Dahua ePoE technology offers a new way to realize long-distance transmission between IP camera and network switch. It allows for more flexible surveillance system design, improves reliability and saves construction and cabling costs.
	AI \| Artificial intelligence This camera features Artificial Intelligence on board - Face Capture : Face capture is a software application that automatically captures faces from within a digital image or video frame from a video source . Dahua cameras use advanced deep learning algorithms , trained by a large number of sources that encompass facial data, allowing the camera to quickly and accurately locate faces from the video source and capture facial images. - Face Attribute : Through the use of deep learning algorithms to analyze facial images, Dahua cameras can extract up to six facial attributes from each frame , such as gender, age, expression (happy, calm, surprised, sad, and angry), glasses, masks and moustaches. Customers can gain valuable data via facial attribute statistics. - People counting: following crossing a line or area - Perimeter protection: Intrusion, Line crossing (people&vehicle classification)
	5MP resolution, means 12 times the resolution of a common D1 camera : It guarantees adequate resolutions for any need. 1/2.7" CMOS image sensor
	Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	Stream 1: 2960 × 1668@(1–25/30 fps) Stream 2: D1@(1–25/30 fps) Stream 3: 1080p@(1–25/30 fps) Stream 4: 720p@(1–25/30 fps)
	This camera features 7-35mm varifocal optics with motorized zoom Motorized zoom example:
	Smart IR infrared illuminator with 3 LEDs , REAL range up to 80M for night vision This camera also features SMART IR technology. Through this technology, the light emitted by the LEDs is adapted depending on the object framed.
	Remote visibility on mobile using the Dahua DMSS application.
	This camera also includes STANDARD VIDEO ANALYSIS: - Recognition of lost and abandoned objects
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.
	This camera features 1 Audio Input + 1 Audio Output Compatible with Setik MICS1 MICS2 MICS3 Microphones
	This camera has 1 Alarm Input + 1 Alarm Output
	This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
	It allows you to adapt the lens to night/day vision and the consequent management of the IR illuminator automatically.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
	BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations
	Protection level IP67 (Dust / Immersion)
	IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism
	25612V DC power supply not included
	Possibility to insert Micro SD up to a maximum of 256Gb - not included
	This product is covered by a 24 month warranty.
