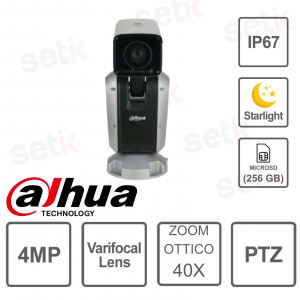

DAHUA IP CAMERA -PTZ- 4MP-OPTICAL ZOOM 40× Starlight-

-57%

PTZ83440-HNF-PA Dahua Onvif PTZ IP camera with 40x optical zoom. Resolution 2560x1440 at 25/30fps. STARVIS™ CMOS sensor 1/1.8” with Starlight technology . Varifocal lens 5.5 mm–220 mm. IR illuminator up to 350 meters . Video compression up to H.265+. Artificial Intelligence, Auto-tracking and Video Metadata Perimeter Protection , Face Detection, IVS . Day/Night (ICR), WDR 120 dB, BLC, HLC, ROI. 16x digital zoom. microSD slot up to 256 GB. 1 Audio input/1 output , 7 Alarm inputs/2 outputs . IP67 protection; TVS 6000V lightning proof. Dahua Technology

366.5 mm × 210.7 mm × 498.7 mm (14.43" × 8.30" × 19.63") (L × W × H)

Reference: PTZ83440-HNF-PA

Brand: Dahua

FIND INSTALLER

https://www.setik.biz/en/cameras/9668-dahua-ptz83440-hnf-pa-camera-dahua-ip-ptz-4mp-optical-zoom-40-starlight-.html

€3,571.48

€8,305.76 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical Data Sheet Further Details Download

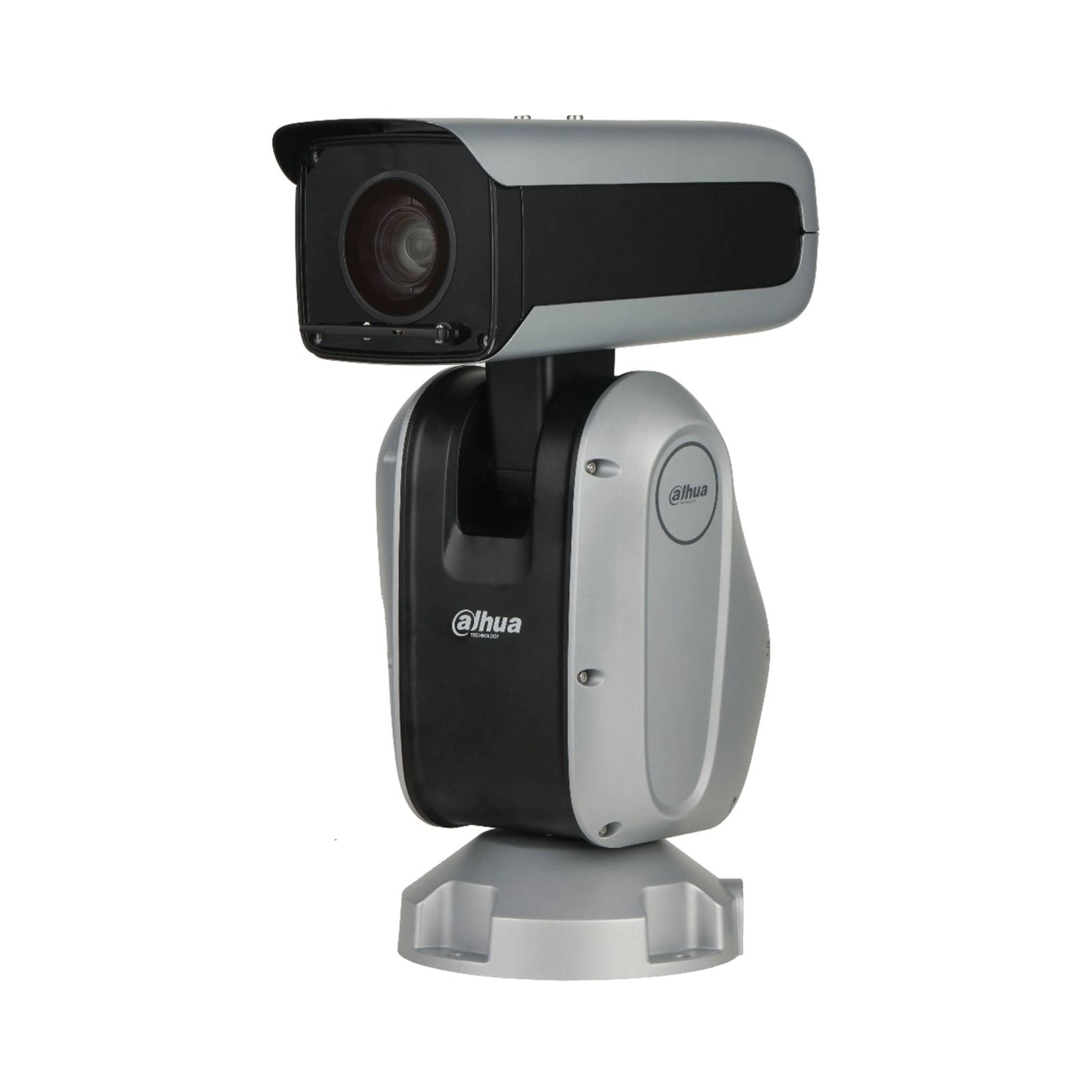

4 MEGAPIXEL PTZ IP CAMERA - 40X OPTICAL ZOOM - FACE DETECTION - ARTIFICIAL INTELLIGENCE - DAHUA PTZ83440-HNF-PA

Onvif PTZ IP camera - Artificial Intelligence - Dahua
4 Megapixel - 5.5 mm–220 mm lens - STARVIS™ CMOS sensor 1/1.8” with Starlight technology - H.265+ - 40x optical zoom
IR illuminator up to 350 meters - Video Metadata - Facial Recognition - Auto-tracking and perimeter based protection - Audio / Alarm
Micro SD Card Slot (Max. 256GB - Not Included) - IP67 Protection and TVS 6000V Lightning Protection - 24 Months Warranty

Product details

WizMind Onvif PTZ IP Camera - Dahua
1/1.8" 4 Megapixel STARVIS™ CMOS
Starlight technology
Resolution 2560x1440 at 25/30fps
Varifocal optics 5.5mm–220mm
Powerful 40x optical zoom
IR illuminator up to 350 meters
Auto-tracking and Perimeter Protection
IVS
Artificial Intelligence: Video Metadata - Perimeter Protection - Face Detection
Triple Stream
Day/Night (ICR), WDR 120 dB, BLC, HLC, ROI. 16x digital zoom
microSD slot up to 256 GB
Audio: 1 input + 1 output
Alarm: 7 inputs + 2 outputs
IP67 protection (Dust / Immersion) and TVS 60000 (Anti-Lightning)
Dimension: 366.5 mm × 210.7 mm × 498.7 mm (14.43" × 8.30" × 19.63") (L × W × H)
24 month warranty

Data sheet

Room

Image Sensor

1/1.8" CMOS

Pixels

4MP

Max.Resolution

2560(H)×1440(V)

ROM

8GB

RAM

2GB

Electronic Shutter Speed

1/1–1/30,000 s

Scanning System

Progressives

Min. Illumination

Color: 0.001 Lux@F1.4
B/W: 0.0001 Lux@F1.4
0 Lux (IR light on)

Illumination Distance

350 m (1148.29 ft)

Illuminator On/Off Control

Prio Zoom; Manual; Smart IR; Off

Illuminator Number

10 (IR light)

Wiper

Yes

Lens

Focal Length

5.5mm–220mm

Max. Openings

F1.4–F4.5

Field of View

H: 61.8°–2.2°
V: 36.3°–1.3°
D: 69.2°–2.4°

Optical Zoom

40×

Focus Control

Car; Semi-Auto; Manual

Close Focus Distance

0.5 m–2.0 m (1.64 ft–6.56 ft)

Iris Control

Car

DORI Distance

Detect

Observe

Recognize

Identify

3034.5 m (9955.71 ft)

1204.2 m (3950.79 ft)

606.9 m (1991.14 ft)

303.4 m (995.41 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –45° to +90°

Manual Control Speed

Pan: 0.1°–160°/s
Tilt: 0.1°–60°/s

Preset Speed

Pan: 160°/s
Tilt: 60°/s

Presets

300

Tours

8 (up to 32 presets per tour)

Patterns

Scan

Power-off Memory

Yes

Idle Motion

Presets; Patterns; Tours; Scan

Protocol

DH-SD

Intelligence

Video Metadata

Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.

IVS (Perimeter Protection)

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

Face Recognition

Yes

Auto Tracking

Yes

Video

Compression

H.264; H.264H; H.265; MJPEG (Sub Stream); Smart H.265+; Smart H.264+

Streaming Capability

3 streams

Resolution

4M (2560×1440); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288)

Video Frame Rate

Main stream: 4M/1080p/1.3M/720p (1–25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)

Bit Rate Control

CBR; VBR

Bit Rate

Default resolution of the main stream:
H264: 512–13056Kbps
H265: 204–7936Kbps

Day/Night

Car (ICR); Color; B/W

BLC

Yes

WDR

120dB

HLC

Yes

White Balance

Car; Indoors; Outdoor; Tracking; Manual; Sodium lamp; Natural light; Street lamp

Gain Control

Car; Manual

Noise Reduction

2DNR; 3D NO

Motion Detection

Yes

Region of Interest (RoI)

Yes

Defog

Optical

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view.

S/N Ratio

≥ 55 dB

Audio

Compression

G.711a; G.711mu; G.726; G722.1; G.729; MPEG2-Layer2; G723

Network

Ethernet

RJ-45 (10/100 Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; RTMP

Interoperability

ONVIF (Profile S&G&T); CGI

Streaming Method

Unicast; Multicast

User/Host

20 (total bandwidth: 64M)

Storage

FTP; Micro SD card (max. 256G); NAS

Browsers

IE7 and later
Chrome 45 and later
Firefox 52ESR and earlier
Safari

Management Software

Smart PSS
DSS
IVSS

Mobile Client

IOS/Android

Port

Analog Output

1 channel (CVBS output, BNC)

RS-485

1 (baud rate: 1200 bps–9600 bps)

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT, bare wire)

Two-way Audio

Yes

Alarm Input

7 (on-off value input: 0–5V DC)

Alarm Output

Alarm Linkage

Capture; presets; tours; pattern; SD card recording; triggering on-off value output; client electric map; sending email

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; encoder state detection; memory card state detection; memory space detection; power exception detection

Power

Power Supply

36V DC, 5A ± 25%

Power Consumption

Basic: 19W
Max.: 60 W (working PTZ, IR on)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to 158 °F)

Operating Humidity

≤ 95%

Protection

IP67; TVS 6000V lightning proof; surge protection

Structure

Casing

ADC12

Product Dimensions

366.5 mm × 210.7 mm × 498.7 mm (14.43" × 8.30" × 19.63") (L × W × H)

Net Weight

14 kg (30.86 lb)

Gross Weight

18.5 kg (40.79 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera complies with the ONVIF® standard
	AI \| Artificial intelligence This camera features Artificial Intelligence on board - Perimeter protection : Intrusion, line crossing - Video Metadata - Auto-tracking : The system will identify objects moving in a certain video-surveillance area and will automatically enlarge it for a better view of the tracked object. - Facial recognition
	This camera features a resolution of 4 Megapixels!
	Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	1/1.8" CMOS STARVIS™ sensor with STARLIGHT technology. Low brightness, color vision even in night mode With the addition of the STARVIS feature we have significant advantages: - Backlit structure with 2.9 µm-square unit pixels - High sensitivity (two or more times greater than other products on the market) - Increased sensitivity near an area covered by infrared light - Supports WDR (multiple exposure WDR, DOL-WDR) - Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor it is possible to have color shots even in night mode. Normally, when you enter night mode, color vision becomes black/white. With the SENSOR present, night shots will be clear and in color
	40x Optical Zoom ( 5.5mm~220mm) + 16x Digital Zoom
	IR illuminator up to 350 m
	This camera features the AUTO TRACKING function. The system will identify objects moving in a specific video-surveillance area and will automatically enlarge it for a better view of the tracked object.
	This camera also includes ADVANCED INTELLIGENT FUNCTIONS: - Face Detection Example image:
	This camera has 7 inputs and 2 outputs
	This camera has 1 input + 1 audio output
	Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.
	This function allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
	This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
	This camera features the Motion function by connecting it to a recording device having alarm inputs.
	Possibility of inserting a Micro SD up to a maximum of 256GB
	Protection level IP67 (Dust / Immersion)
	This product is covered by a 24 month warranty.
