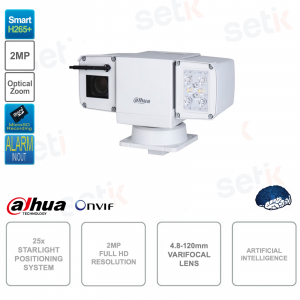

ONVIF IP PTZ Positioner - 2MP - 4.8-120mm Lens - 25x Zoom - IR 150m - Artificial Intelligence

Room

Image Sensor

1/2.8" CMOS

Pixel

2 MP

Max. Resolution

1920 (H) × 1080 (V)

ROM

4 GB

RAM

1 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic (EIS)

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view;
multiple colors and mosaics available

Y/N Ratio

≥ 55dB

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Network

Network Port

RJ-45 (10/100Base-T)

Network Protocol

TCP; FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; IP Filter; SMB; HTTP; SSL; DHCP; SMTP; SNMPv1/v2c/v3(MIB-2); Qos; RTSP; ARP

Interoperability

RTMP;CGI;Dahua SDK;ONVIF;API

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64M)

Storage

FTP; Micro SD card (512GB); NAS

Browser

IE 7 and later versions
Chrome 45 and later versions
Firefox 52 ESR and earlier versions
Safari

Mobile Client

iOS; Android

Certification

Certifications

CE/FCC

Port

RS-485

1 (baud rate: 1200 bps–9600 bps)

Alarm Linkage

Capture; presets; tours; pattern; recordings; alarm digital input; send email

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card status detection; memory space detection

Alarm I/O

2/1

Audio I/O

1/1

Power

Power Supply

36VDC/2.23A ± 25%

Power Consumption

Basic: 13W
Max.: 24W (illuminator + wiper + PTZ)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤ 95%

Protection

IP67, TVS 6000V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

310.0 mm × 166.0 mm × 180.0 mm (12.20" × 6.53" × 7.09") (L × W × H)

Net Weight

5.9 kg (13.01 lb)

Gross Weight

7.0 kg (15.43 lb)

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems

This camera complies with the ONVIF® standard

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.

This camera features AUTO TRACKING function.
The system will detect objects moving in a specific video surveillance area and automatically enlarge it for a better view of the tracked object.

Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
The higher the value in db, the greater the camera's ability to handle the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db, managing very strong levels of contrast.

This function allows you to clearly see images taken in particular weather conditions: rain, smoke and fog.

This camera has ROI function.

Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.

This camera features the Motion function by connecting it to a recording device with alarm inputs.

Possibility to insert Micro SD up to a maximum of 512Gb

Protection level IP67 (Dust / Immersion)

This product is covered by a 24 month warranty.
