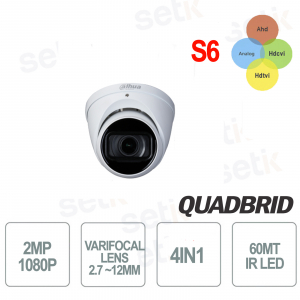

Dahua 2 MP 4in1 2.7mm-12mm IR 60 Dome S6 camera

Dahua 2 MP 4in1 2.7mm-12mm IR 60 Dome S6 camera
-57%

Dahua HAC-HDW1200T-Z-S6 outdoor camera with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG, 2Megapixel 2 MP resolution, Motorized optics 2.7mm ~ 12mm. 2 MP CMOS sensor. Smart IR illuminator 2 LEDs 60M , Day/Night (ICR), BNC Video Output.



Reference: HAC-HDW1200T-Z-S6

Brand: Dahua

FIND INSTALLER

€83.94

€195.20 -57%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


DAHUA HD VIDEO SURVEILLANCE CAMERA 2 MP 2.7 MM~ 12MM

Made by Dahua
Dahua 4in1 outdoor camera - S6 version
4in1: HDCVI / HDTVI / AHD / ANALOG - 2Megapixel 2 MP - Varifocal lens 2.7mm~12mm - CMOS 2MP
Smart IR illuminator 2 LEDs 60 MT - Day/Night (ICR) - OSD Menu - IP67 protection
Power supply NOT included - 24 month warranty

Product details

Telecamera Dome con risoluzione 2MP e ottica Varifocale 2.7mm~12mm
- S6 VERSION
- 4in1 dome camera - Dahua
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOGUE
- Switchable technologies via UTC Controller (not included)
- Resolution: 2Megapixel 2MP
- 2MP image sensor
- Varifocal lens 2.7 mm ~ 12mm
- Functions: Day/Night(ICR), BLC, HLC, DWDR
- OSD Multilingual menu
- Smart IR illuminator 2 LEDs 60MT
- Choice of CVI / TVI / AHD / ANALOG video output via 1 BNC port
- IP67 protection (dust / immersion)
- 12V DC power supply not included
- Suitable for outdoor and indoor environments
- Dimensions Φ122mm×104.8mm ( Φ4.80"×4.13")
- 24 month warranty

Data sheet

Model

HAC-HDW1200T-Z-S6

Room
Image Sensor 2MP CMOS
Effective Pixels 1920(H)×1080(V)
Scanning System Progressives
Electronic Shutter Speed PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
S/N Ratio >65dB
Minimum Illumination 0.01 lux@F1.6 (Color, 30 IRE)
0.001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
Fill Light Working Distance 60 m (196.9 ft)
IR On/Off Control Car;
IR LED Number 2
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Auto Focus N/A
Mount Type φ14
Focal Length 2.7mm-12mm
Max. Openings F1.6
Field of View H: 28.3°–98.2°; V: 15.8°–51.9°; D: 32.1°–116.7°
Iris Type Fixed
Close Focus Distance 0.8 m (2.62 ft)
Video
Frame Rate CVI: 1080P@25/30fps;
AHD: 1080P@25/30fps;
TVI: 1080P@25/30fps
CVBS: 960H
Resolution 1080P (1920×1080); 960H (960×576/960×480)
Day/Night Auto(ICR)/Color/B/W
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Car; White balance area
Gain Control Car
Noise Reduction 3D NO
Illumination Mode Smart IR
Mirror Yes
Privacy Masking Off/On (8 area, rectangle)
Certification
Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply 12V ±30% DC
Power consumption Max 6.4W (12V DC, IR on)
Environment
Operating Temperature

-30°C to +60°C (-22°F to 140°F);<95% (noncondensation)

Storage Temperatures -30°C to +60°C (-22°F to 140°F);<95% (noncondensation)
Protection Grade IP67
Anti-corrosion Level Basic Protection
Structure
Casing Metal
Dimensions Φ122mm×104.8mm ( Φ4.80"×4.13")
Net Weight 0.58 kg (1.28 lb)
Gross Weight

0.74 kg (1.63 lb)

Installation

Wall mount; ceiling mount; vertical pole mount

Further details

Tecnologia Quadribrida

This camera is a QUADRIBRID (4 integrated technologies)
These cameras are at the same time, Analog , AHD , Hdcvi and Hdtvi .

Tecnologia AHDTecnologia HDCVITecnologia HDTVI

1080P HDCVI Bullet Camera HAC-HDW1200M

This camera features a resolution of 2Megapixel 2MP 1080P FULL-HD

1/2.7" CMOS sensor

Ottica Varifocale This camera is equipped with 2.7mm ~ 12mm Varifocal lens
Illuminatore IR fino a 80mt

Infrared illuminator with 2 LEDs and approximate maximum range of 60m

This camera also features SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted depending on the object framed.

OSD_Menu

OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day/Night sensitivity, Shutter speed, White balance, light compensation and much more...

The OSD Menu is multi-language and can be managed both via DVR and UTC Controller (not included)

Multi-Technology:

The camera can switch from HDCVI to HDTVI, AHD or Analog via UTC controller (not included).

Allows you to adapt the lens to Night/Day vision

ICR The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from the inside towards the outside, etc.) the compensation of the light is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations


Click to enlarge

AGC_Camera The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

12VDC_Supply 12VDC power supply not included
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Downloads

Download the English brochure
Schema dettagliato con le dimensioni della telecamera HAC-HDW1200T-Z-2712-S5
