DAHUA-HDCVI-2 MEGAPIXEL-PTZ -STARLIGHT CAMERA FOR OUTDOOR

-57%

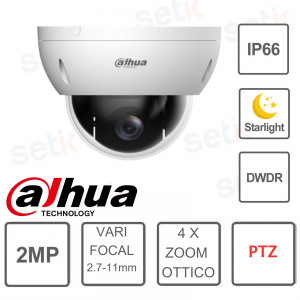

SD22204DB-GC - Dahua 2 Megapixel 2MP 1080P FULL HD HDCVI PTZ Camera, 4x Optical Zoom (2.7~11mm) and 1/2.8" CMOS sensor with Starlight Technology , Day/Night, BLC, HLC, Defog, DWDR - IP66 and IK10 Protection vandal-proof - Ideal for outdoor use.

4 in 1 camera: HDCVI/HDTVI/AHD/CVBS (CVBS only for debugging)

88.9 mm × Φ122.0 mm (3.50" × Φ4.80")

Reference: SD22204DB-GC

Brand: Dahua

EAN: 6923172591319

FIND INSTALLER

https://www.setik.biz/en/cameras/9632-dahua-sd22204db-gc-dahua-hdcvi-2-megapixel-ptz-starlight-camera-for-outdoor.html

€205.64

€478.24 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Technical Data Sheet Further Details Download

HDCVI STARLIGHT OUTDOOR CAMERA - PTZ - 2 MEGAPIXEL FULL HD - DWDR / DAHUA - SD22204DB-GC

Dahua HDCVI external camera - SD22204DB-GC
2Megapixel Full HD resolution - 4x optical zoom - 2.7-11mm varifocoal optics - 1/2.8" CMOS with Starlight technology
Day/Night - DWDR - - Defog - BLC - HLC - IP66 and IK10 protection (ideal for outdoor use) - Not equipped with IR illuminator - 24 month manufacturer's warranty.

Product details

HDCVI camera outdoor PTZ Dahua - SD22204DB-GC
2 Megapixel resolution
2.7-11mm varifocal lens
4x Optical Zoom
1/2.8" Sony® STARVIS™ CMOS sensor with Starlight Technology
Starlight Technology: Color Night Vision!
4 in 1 camera: HDCVI/HDTVI/AHD/CVBS (CVBS only for debugging)
Day/Night DWDR
Defog, EIS, BLC, HLC
Remote viewing with Dahua DMSS application
IP66 protection (Rain/Dust) - Suitable for indoor/outdoor environments
IK10 protection (vandalism)
Not equipped with IR illuminator
Dimension:88.9 mm × Φ122.0 mm (3.50" × Φ4.80")
Operating temperature: –30 °C to +60 °C
Diet:
12VDC,1.5A ±10%
24 month manufacturer's warranty

Data sheet

Room

Image Sensor

1/2.8" CMOS

Pixels

2 MP

Max.Resolution

1920 (H) × 1080 (V)

ROM

128MB

RAM

256MB

Electronic Shutter Speed

1/3 s–1/30,000 s

Scanning System

Progressives

Min. Illumination

0.005lux@F1.6 (Color, 30 IRE);
0.0005lux@F1.6 (B/W, 30 IRE)

Lens

Focal Length

2.7mm–11mm

Max. Openings

F1.6–F3.0

Field of View

H: 99.1°–31.9°
V: 53.4°–18.0°
D: 117.7°–36.6°

Optical Zoom

4×

Focus Control

Car; semi-auto; manual

Close Focus Distance

1 m (3.28 ft)

DORI Distance

Detect

Observe

Recognize

Identify

151.7 m (497.70 ft)

59.9 m (196.52 ft)

30.3 m (99.41 ft)

15.2 m (49.87 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 355°;
Tilt: 0° to +90° (When the vertical field of view is between 0° and 10°, the device case will block part of the image)

Manual Control Speed

Pan: 0.1°–100°/s
Tilt: 0.1°–60°/s

Preset Speed

Pan: 100°/s;
Tilt: 60°/s

Presets

300

Tours

8 (up to 32 presets per tour)

Power-off Memory

Yes

Idle Motion

Presets; Tours

PTZ Protocol

DH-SD
Pelco-P/D (Auto recognition)

Video

Resolution

1080p (1920 × 1080); 720p (1280 × 720); D1 (704 ×
576/704 × 480)

Video Frame Rate

1080p (25/30 fps); 720p (25/30/50/60 fps)

Day/Night

Yes

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2DNR; 3D NO

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

S/N Ratio

≥50dB

Function

CVI Product Output Mode

TVI;CVI;CVBS;AHD (CVBS is only used for debugging)

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpart B, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Port

Analog Output

1 channel (CVBS/CVI output, BNC)

RS-485

1 (baud rate range: 1200 bps–9600 bps)

Power

Power Supply

12VDC,1.5A ±10%

Power Consumption

Basic: 7W
Max.: 9W (PTZ)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95% (RH)

Protection

IP66; IK10; TVS 6000V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

88.9 mm × Φ122.0 mm (3.50" × Φ4.80")

Net Weight

0.6 kg (1.32 lb)

Gross Weight

0.65 kg (1.43 lb)

Further details

2Megapixel FULL HD 1080P resolution, which means 5 times the resolution of a common D1 camera!

Full HD 1920x1080p resolution.

4x Optical Zoom ( 2.7-11mm)

Generic PTZ Functions:

Pan/Tilt Range

Pan: 0° to 355°;
Tilt: 0° to +90° (When the vertical field of view is between 0° and 10°, the device case will block part of the image)

Manual Control Speed

Pan: 0.1°–100°/s
Tilt: 0.1°–60°/s

Preset Speed

Pan: 100°/s;
Tilt: 60°/s

Presets

300

Tours

8 (up to 32 presets per tour)

Power-off Memory

Yes

Idle Motion

Presets; Tours

PTZ Protocol

DH-SD
Pelco-P/D (Auto recognition)

1/2.8" sensor with STARLIGHT technology.

Low brightness, color vision even in night mode

With the Starlight CMOS sensor it is possible to have color shots even in night mode.

Normally, when you enter night mode, color vision becomes black/white.

With the SENSOR present, night shots will be clear and in color

Remote visibility on mobile using the Dahua DMSS application.

D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated into the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range

DEFOG
It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image

Allows you to adapt the lens to Night/Day vision

BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where the recording is difficult (entrances or exits of car parks, recording of license plates, presence of particular lights etc...)
