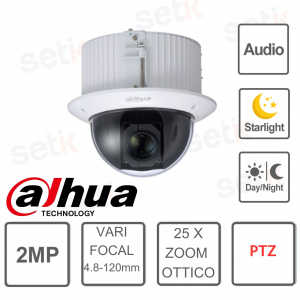

DAHUA-HDCVI-2MP-25X-STARLIGHT-PTZ CAMERA

-57%

SD52C225DB-HC Dahua HD CVI indoor PTZ camera, 2Megapixel 2MP FULL HD 1080P, with 25X Optical zoom (4.8mm~120mm) and 1/2.8" CMOS STARVIS™ sensor with Starlight technology. Day/Night, WDR 120dB TRUE , BLC, HLC, Audio, Alarm, RS485, Video Output, IK10. 4 in 1 HDCVI/HDTVI/AHD/CVBS Camera (only for debugging)

176.6 mm × Φ198.0 mm (6.95" × Φ7.80")

Reference: SD52C225DB-HC

Brand: Dahua

FIND INSTALLER

https://www.setik.biz/en/cameras/9627-dahua-sd52c225db-hc-dahua-hd-cvi-2mp-25x-starlight-ptz-dome-motorized-wdr-camera.html

€566.04

€1,316.38 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Technical Data Sheet Further Details Download

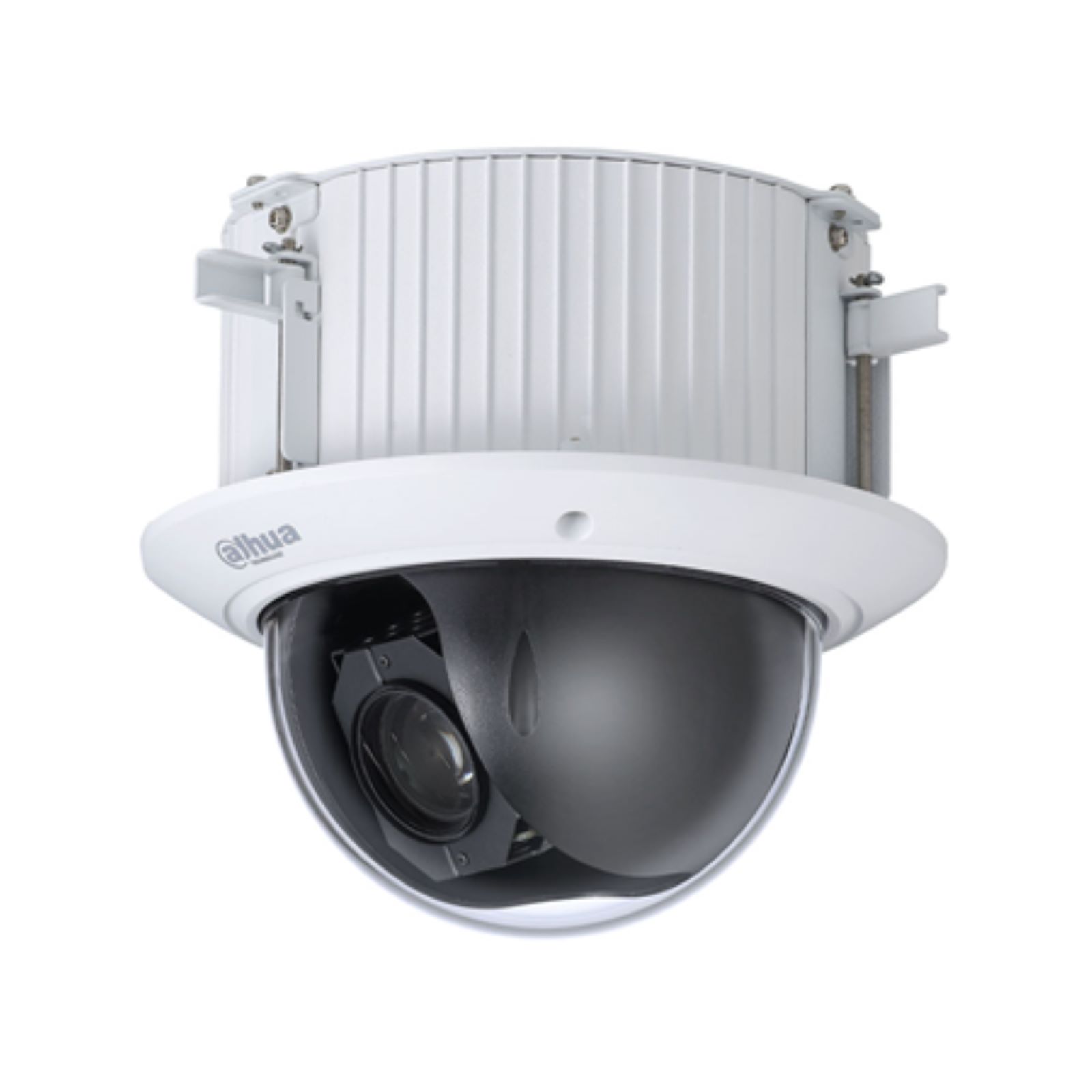

DAHUA PTZ 2MEGAPIXEL INDOOR CAMERA STARLIGHT HD CVI - 25X ZOOM

Dahua HD CVI camera
2 Megapixel 1080P FULL HD - 4.8mm~120mm lens (25X Zoom) - STARVIS CMOS Starlight sensor
Day/Night - WDR 120dB true - Audio / Alarm - RS485 - Video output
Not equipped with IR illuminator

4 in 1 HDCVI/HDTVI/AHD/CVBS Camera (only for debugging)

Power supply 24 VDC, 2.5 A ± 25% (Power supply included) - 24 month warranty

Product details

HD CVI indoor dahua dome camera
2Megapixel FULL HD 1080P resolution
4 in 1 HDCVI/HDTVI/AHD/CVBS Camera (for debugging only)
2MP Sony® STARVIS™ 1/2.8” CMOS image sensor
Starlight Technology: Color night vision
Varifocal lens 4.8mm~120mm ( 25X optical zoom )
Day/Night, BLC, HLC, 3D-NR
WDR 120dB
1 Audio Input
2 Alarm Inputs + 1 Alarm Output
RS485 port
Video output
IK10 protection (Vandalism)
Not equipped with IR illuminator
Power supply 24 VDC, 2.5 A ± 25% - power supply included
Dimensions 176.6 mm × Φ198.0 mm (6.95" × Φ7.80")
24 month warranty

Data sheet

Room

Image Sensor

1/2.8" CMOS

Pixels

2 MP

Max.Resolution

1920 (H) × 1080 (V)

ROM

128MB

RAM

256MB

Electronic Shutter Speed

1/3 s–1/30,000 s

Scanning System

Progressives

Min. Illumination

0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE)

Lens

Focal Length

4.8mm–120mm

Max. Openings

F1.6–F3.5

Field of View

H: 59.7°–3.5°;
V: 34.1°–2.0°;
D: 68.6°–4.0°

Optical Zoom

25×

Focus Control

Car; semi-auto; manual

Close Focus Distance

0.1 m–2 m (0.33 ft–6.56 ft)

Iris Control

Car; manual

DORI Distance

Detect

Observe

Recognize

Identify

1655.2 m (5430.45 ft)

653.8 m (2145.01 ft)

331.0 m (1085.96 ft)

165.5 m (542.98 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless;
Tilt: 0° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°–350°/s
Tilt: 0.1°–250°/s

Preset Speed

Pan: 500°/s;
Tilt: 500°/s

Presets

300

Tours

8 (up to 32 presets per tour)

Patterns

Scan

Power-off Memory

Yes

Idle Motion

Patterns; Presets; Scan; Tours

PTZ Protocol

DH-SD
Pelco-P/D (Auto recognition)

Video

Resolution

1080p (1920 × 1080); 720p (1280 × 720); D1 (704 ×
576/704 × 480)

Video Frame Rate

1080p (25/30 fps); 720p (25/30/50/60 fps)

Day/Night

Yes

BLC

Yes

WDR

120dB

HLC

Yes

White Balance

Car; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Car; manual

Noise Reduction

2DNR; 3D NO

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Yes

S/N Ratio

≥50dB

Function

CVI Product Output Mode

TVI;CVI;CVBS;AHD(CVBS is only used for debugging)

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpart B, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Port

Analog Output

1 channel (CVBS/CVI output, BNC)

RS-485

1 (baud rate range: 1200 bps–9600 bps)

Audio Input

1 channel (LINE IN, bare wire)

Alarm Input

2 (on-off value input: 0–5 VDC)

Alarm Output

Alarm Linkage

Scan; presets; tours; pattern; alarm digital output

Alarm Event

Alarm input

Power

Power Supply

24VDC,2.5A±25%

Power Consumption

Basic: 10.5W
Max.: 14W (PTZ)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Protection

IK10; TVS 6000V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

176.6 mm × Φ198.0 mm (6.95" × Φ7.80")

Net Weight

2.2kg (4.85lb)

Gross Weight

3.7 kg (8.16 lb)

Further details

	HD-CVI is the new technology in the world of video surveillance. By simply replacing the equipment (cameras and DVRs) in the analogue infrastructure, the resolution can reach up to 1920X1080 (FULL-HD). In this way it is possible to obtain the same results as the IP world but with a high cost containment. 4 in 1 HDCVI/HDTVI/AHD/CVBS Camera (only for debugging)
	This camera is suitable for indoor environments.
	This camera has a resolution of 2 Megapixels 1080P FULL HD
	This camera features PAN (HORIZONTAL) and TILT (VERTICAL) rotation Pan: 0° ~ 360° continuous Tilt: 0° ~ 90° auto flip 180°
	Equipped with 25X optical zoom (4.8mm~120mm) and 16X digital zoom
	1/2.8" CMOS STARVIS™ sensor with STARLIGHT technology. Low brightness, color vision even in night mode With the addition of the STARVIS feature we have significant advantages: - Backlit structure with 2.9 µm-square unit pixels - High sensitivity (two or more times greater than other products on the market) - Increased sensitivity near an area covered by infrared light - Supports WDR (multiple exposure WDR, DOL-WDR) - Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor it is possible to have color shots even in night mode. Normally, when you enter night mode, color vision becomes black/white. With the SENSOR present, night shots will be clear and in color
	Day/Night: allows you to adapt the lens to night/day vision
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
	HLC (High Light Compensation) allows for greater light management in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.
	BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations
	This camera has 1 audio input
	It is extremely useful to also have Inputs/Outputs in a CCTV system to be able to control relays or activate a recording following an event This camera has 2 inputs + 1 alarm output
	RS485 Directly on the camera, allows you to control the OSD menu and also the PTZ movements remotely.
	IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism
	This product is covered by a 24 month warranty.
