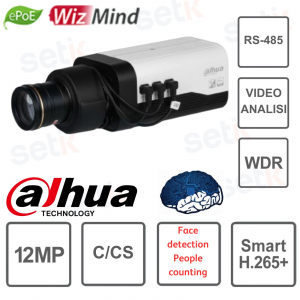

DAHUA-12 MP-BOXED CAMERA-C/CS-ARTIFICIAL INTELLIGENCE

-57%

WizMind IP ePoE ONVIF Box Camera Dahua IPC-HF71242F-ZX 12 Megapixel 12 MP CMOS 1/1.7" and C/CS lens. H.265+ , 5 video streams , Day/Night (ICR), 3DNR, Defog - Built-in microphone - Artificial Intelligence, Video Analysis , People Counting, Face Detection, Perimeter Protection, ANPR , Intelligent Search , Audio, Alarm, MicroSD Slot - Made of metal and plastic.

161.6 mm × 86.8 mm × 74 mm (6.36" × 3.42" × 2.91") (L × W × H)

Reference: IPC-HF71242F-Z-X

Brand: Dahua

FIND INSTALLER

https://www.setik.biz/en/cameras/9614-dahua-ipc-hf71242f-z-x-bullet-camera-ip-onvif-poe-12mp-motorized-starlight-artificial-intelligence-dahua.html

€710.31

€1,651.88 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Technical Data Sheet Further Details Download

DAHUA CAMERA - IPC-HF71242F-ZX-IP ONVIF® ePOE DAHUA BOXED 12MP - C/CS LENS - 5 STREAMS - ARTIFICIAL INTELLIGENCE

Dahua 12MP Boxed ONVIF® ePoE IP Camera - I PC-HF71242F-ZX
12 Megapixel 12MP Resolution - C/CS Mount Type Optics - CMOS 1/1.7" - H.265+ - Artificial Intelligence and Video Analysis
5 Video Stream - Day/Night(ICR) - DWDR - BLC - HLC - 3D NR - ANPR - Motion Detection - Defog - Audio 2in/1out / Alarm 2in/2out - 512GB MicroSD slot (not included) - RS485 - RJ45 1000M -

Product details

Dahua ONVIF® ePoE IP camera - IPC-HF71242F-ZX
12Megapixel 12MP resolution
C/CS Mount Type Optics
1/1.7” progressive CMOS image sensor
Video Compression up to H.265+
5 Video streams
DWDR , Day/Night(ICR), 3DNR,BLC, Defog, ROI, Mirror Mode, Privacy Masking
Video Analysis of abandoned object, moving object
Advanced Intelligent Functions : people counting, face detection, face&body detection, perimeter protection, ANPR, intelligent search, Video Metadata
Remote viewing with Dahua DMSS application
Alarm : 2 input + 2 output
Audio : 2 input + 1 output
RJ45 1000M Gigabit Ethernet LAN
RS-485
MicroSD slot (Max 512GB - not included )
Dimensions: 161.6 mm × 86.8 mm × 74 mm (6.36" × 3.42" × 2.91") (L × W × H)
12V DC power supply ( power supply NOT included )
Material: Metal and Plastic
Operating temperature: –30°C to +60°C
Power supply: 12V DC/24V AC/POE (802.3af); ePoE
Weight: 800g
Quality product
24 month warranty

Data sheet

Room

Image Sensor

1/1.7" CMOS

Max.Resolution

4000(H)×3000(V)

ROM

8GB

RAM

4GB

Scanning System

Progressives

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0009 lux@F1.6 (Color, 30 IRE)
0.0005 lux@F1.6 (B/W,30 IRE)

S/N Ratio

>56 dB

Lens

Lens Mount

C/CS

Iris Control Type

DC-Iris; P-Iris

Smart Events

IVS

Abandoned object; missing object

Intelligence

EPTZ

Yes

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

Face Recognition

There are two modes: General mode and counting mode.

General mode:

Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting.

Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 200,000 face pictures.

Counting mode:

Offers advanced customer counter, filters out specified faces from the face database, and exports reports both before and after removing duplicate faces.

PPE Detection

Triggers alarms when the detected object matches

or does not match all of the configured attributes

(workwear, hat, face mask, apron, gloves, shoe covers,

boots, seatbelt, safety vest)

People Counting

Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire people counting, people counting in area and queue management;

Heat Map

Yes

ANPR

ANPR: ANPR, track, priority, snapshot.

Vehicle attributes: License plate, vehicle type, vehicle color.

Other attributes: Seat belt, smoking, calling.

Support up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h.

Parking Space Management

Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple areas; display the total number of parking spaces and parking spaces that are available; trigger alarms based on a predefined number of vehicles.

Video Metadata

Motor vehicle, non-motor vehicle, face, and human body

detection; snapshot; snapshot optimization; optimal face

snapshot upload.

Motor vehicle attributes: License plate, vehicle type,

vehicle color, vehicle logo, seatbelt, smoking, and calling.

Generates ?ow statistics for people, motor vehicles and

non-motor vehicles based on the direction, and exports

reports.

Non-motor vehicle attributes: Type, vehicle color,

number of people, top type and color, and hat.

Human body attributes: Top and bottom type and color,

bag, hat, gender and umbrella.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codecs

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 4000 × 3000@(1–25/30 fps)
Sub stream: 1920 × 1080@(1–25/30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
Fourth stream: 1920 × 1080@(1–25/30 fps)
Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

Stream Capability

5 streams

Resolution

12M (4000×3000); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536); 3M (2304 × 1296) 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32kbps–16384kbps
H.265: 32kbps–12288kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

Scene Self-adaptation (SSA)

Yes

White Balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Car

Noise Reduction

3D NO

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; parking space management; scene changing; audio detection; defocus detection; external alarm; face detection; face recognition; video metadata; ANPR; people counting in area; stay alarm; people counting; people number error detection; people stay detection; security exception; PPE detection

Network

Network Port

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 340M)

Storage

FTP; SFTP; Micro SD card (support max. 512GB); NAS

Browsers

IE: IE11 and later
Chrome: Chrome 88.0.4324.190 and later
Firefox: Firefox 47.0.2 and later

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

RS-485

1 (baud rate range:1200 bps–115200 bps)

Audio Input

2 channels (3.5 mm JACK port)

Audio Output

1 channel (3.5 mm JACK port)

Alarm Input

2 channels in: wet contact, 5 mA 3–5 VDC

Alarm Output

2 channels out: 1,000mA 30 VDC/500 mA 50 VAC

Analog Output

2 channels out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC

Power Output

12 VDC power output, max. current 165 mA, peak current 700 mA

Power

Power Supply

12 VDC/24 VAC/PoE+ (802.3at)/ePoE

Power Consumption

Basic: 8.4W (12VDC); 8W (24VAC); 6.3W (PoE)

Max. (WDR+ intelligence on+ ICR switch): 17.1 W (12 VDC); 16.5W (24VAC); 15W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperatures

–30 °C to +60 °C (–22 °F to +140 °F)

Storage Humidity

10–95%

Structure

Casing Material

Metal + plastic

Product Dimensions

161.6 mm × 86.8 mm × 74 mm (6.36" × 3.42" × 2.91") (L × W × H)

Net Weight

0.80 kg (1.76 lb)

Gross Weight

1.02 kg (2.25 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera supports the ONVIF® standard
	Dahua's in-house designed ePoE technology adopts advanced 2D-PAM3 modulation from the physical layer and realizes full duplex transmissions over 800 meters at the speed of 10 Mbps, or 300 meters at the speed of 100 Mbps via Cat 5 or coaxial cable. Dahua ePoE technology offers a new way to realize long-distance transmission between IP camera and network switch. It allows for more flexible surveillance system design, improves reliability and saves construction and cabling costs.
	This camera has a resolution of up to 12 Megapixels (4000x3000) 12MP 1/1.7" progressive scan CMOS sensor.
	New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism.
	Video Stream - 5 Streams! Main stream: 4000 × 3000@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1920 × 1080@(1–25/30 fps) Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
	Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	Remote visibility on mobile using the Dahua DMSS application.
	AI \| Artificial intelligence This camera features Artificial Intelligence on board - Face Capture: Face capture is a software application that automatically captures faces from within a digital image or video frame from a video source. Dahua cameras use advanced deep learning algorithms, trained by a large number of sources that encompass facial data, allowing the camera to quickly and accurately locate faces from the video source and capture facial images. - Face Attribute: Through the use of deep learning algorithms to analyze facial images, Dahua cameras can extract up to six facial attributes from each frame, such as gender, age, expression (happy, calm, surprised, sad, and angry ), glasses, masks and moustaches. Customers can gain valuable data via facial attribute statistics. - Face Detection: Once facial features are extracted from captured faces, they are stored in a database where other images can be easily searched and compared. Once a match is found, the system outputs the result file. The Dahua Face Recognition camera supports a built-in database that stores up to 10,000 facial images, helping the camera achieve real-time acquisition and comparison. - Line crossing: The counting of people will start when a previously set line is crossed. - Perimeter crossing: The counting of people will start when they enter a previously set area. - People counting - Video Metadata - Intelligent Search
	Dahua ANPR cameras offer a full range of functions for license plate recognition. They integrate an algorithm that detects and captures license plate numbers and stores their details in a database The camera can capture and store screenshots of license plates directly to an SD Card without the need for an NVR Why choose a Dahua ANPR camera? The Dahua ANPR camera range incorporates high quality 2 megapixel images, varifocal lenses, anti-roll headlights and long-range IR LEDs for license plate recognition up to 40 meters away. The cameras offer a white list / black list function capable of triggering set events based on stored license plates. Furthermore... Clear recording of license plate numbers Database registration Trigger events inc. barrier control Integration with Dahua NVR Snapshot support on SD Card PoE Simple installation and use How and where can it be used? A Dahua ANPR camera is suitable for various types of areas, including parking entrances, barrier-controlled areas or lane monitoring. The camera can capture license plates up to a speed of 25 miles per hour ( 40km/h ) Entrances with gates or barriers Parking management Safety Bus lane monitoring Oil stations
	D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated into the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.
	This camera has 2 Audio Inputs + 1 Audio Output
	This camera has 2 Alarm inputs + 2 Alarm outputs
	It allows you to adapt the lens to night/day vision and the consequent management of the IR illuminator automatically.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations
	24 AC power supply not included
	Possibility of inserting a Micro SD up to a maximum of 512 GB - not included
	This product is covered by a 24 month warranty.
