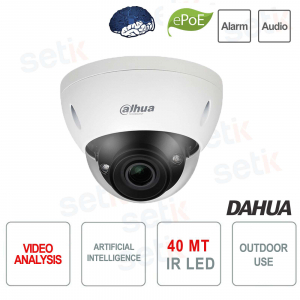

Dahua IPC-HDBW5541E-ZE-S3 version 3 Dome IP ONVIF POE outdoor camera with Artificial intelligence , 5Megapixel 5 MP, 1/2.7" CMOS sensor and 2.7-13.5mm motorized varifocal lens. 3 LED 40MT IR illuminator, quadruple stream , H.265+ , Day/Night ( ICR) , WDR 120dB , Face Capture, Face Attributes, Perimeter protection, People counting , Video Analysis, Audio, Alarm, Microsd slot, IP67 protection, IK10.
FIND INSTALLER
€368.93
€878.40 -58%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
POE OUTDOOR ARTIFICIAL INTELLIGENCE IP CAMERA; ePoE - 5 MEGAPIXELS - 2.7-13.5MM MOTORIZED - DAHUA
5Megapixel Resolution - 2.7-13.5mm Optics with Motorized Zoom - 1/2.7" CMOS Sensor - H.265+
IR illuminator 3 LEDs 4 0MT - Day/Night (ICR), WDR 120dB , Audio / Alarm, Video Analysis
Artificial Intelligence : Face Capture / Face Attributes / Perimeter Protection / People Counting
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- Video Compression up to H.265+
- Video Analysis: Abandoned/Lost objects
- Remote viewing via web browser, CMS (DSS/PSS) and DMSS
- ePoE protocol : Full duplex transmission of more than 800 meters at 10 Mbps or 300 meters at 100 Mbps via Cat5 or coaxial cable
- 12V DC power supply not included
- Suitable for outdoor environments
Data sheet
| Model | IPC-HDBW5541E-ZE-S3 | ||
| Room | |||
| Image Sensor | 1/2.7” 5Megapixel progressive scan CMOS | ||
| Effective Pixels | 2960(H)×1668(V) | ||
| RAM/ROM | 1GB/4GB | ||
| Scanning System | Progressives | ||
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s | ||
| Min. Illumination | 0.0009 lux@F1.5 (Color, 30 IRE) 0.0005 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) | ||
| S/N Ratio | >56 dB | ||
| IR Distance | Up to 40 m (131.23 ft) (IR) | ||
| IR On/Off Control | Auto;Zoomprio; Manual | ||
| IR LEDs | 3 (IR LED) | ||
| Pan/Tilt/Rotation Range | Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚ | ||
| Lens | |||
| Lens Type | Motorized vari-focal | ||
| Lens Mount | φ14 | ||
| Focal Length | 2.7mm–13.5mm | ||
| Max. Openings | F1.5 | ||
| Angle of View | H: 114°–32°; V: 58°–17°; D: 138°–36° | ||
| Iris Control | Car | ||
| Close Focus Distance | 0.8m (2.62ft) | ||
| Intelligence | |||
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection | ||
| Smart Object Detection | Smart abandoned object; smart missing object | ||
| SMD | SMD 3.0 | ||
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. | ||
| TO SSA | Yes | ||
| Face Attributes | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. | ||
| PeopleCounting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management; generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. | ||
| Heat Map | Yes | ||
| Video Metadata |
Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. | ||
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||
| Smart Sound Detection | Yes | ||
Video | |||
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||
| Smart Codecs | Smart H.265+; Smart H.264+ | ||
| AI Coding | AI H.265; AI H.264 | ||
| Video Frame Rate | Main stream: 2960 × 1668@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | ||
| Streaming Capability | 4 Streams | ||
| Resolution | 5M (2960 × 1668); 5M (2880 × 1620); 4M (2688 × 1520); 3.6M (2560×1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||
| Bit Rate Control | CBR/VBR | ||
| Bit Rate | H.264: 32kbps–16384kbps; H.265: 12kbps–11776kbps | ||
| Day/Night | Auto(ICR) / Color / B/W | ||
| BLC Mode | BLC / HLC / WDR(120dB) | ||
| Scene Self-adaptation (SSA) | Yes | ||
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom | ||
| Gain Control | Car | ||
| Noise Reduction | 3D DNR | ||
| Motion Detection | Off / On (4 areas, rectangular) | ||
| Region of interest | Yes (4 areas) | ||
| Electronic Image Stabilization (EIS) | Support | ||
| Smart IR | Support | ||
| Defog | Yes | ||
| Flip | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 ×1520) resolution and lower) | ||
| Mirror | Yes | ||
| Privacy Masking | 8 Areas | ||
| LDC | Yes | ||
| Audio | |||
| Built-in MIC | Yes | ||
| Compression | G.711a; G.711Mu; PCM; G.726; G.723 | ||
| Alarm | |||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection | ||
| Network | |||
| Network Port | RJ-45 (10/100 Enhancement Base-T) | ||
| SDK and API | Yes | ||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P | ||
Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI | ||
| User/Host | 20 (Total bandwidth: 80M) | ||
| Storage | FTP; SFTP; Micro SD card (support max. 512GB); NAS | ||
| Browsers | IE: IE 9 and later | ||
| Web Viewer | IE(versions newer than IE8), Chrome, | ||
| Management Software | SmartPSS Lite; DSS; DMSS | ||
| Smartphones | IOS, Android | ||
| Cyber Security | Configuration encryption; trusted execution; Digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification | ||
| Certification | |||
Certifications | CE-LVD: EN62368-1; | ||
| Port | |||
| Audio Input | 1 channel (RCA port) | ||
| Audio Output | 1 channel (RCA port) | ||
| Alarm Input | 2 channels in: wet contact, 5mA 3V–5V DC | ||
| Alarm Output | 1 channel out: wet contact, 300mA 12V DC | ||
| Power | |||
| Power Supply | 12 VDC/24 VAC/PoE (802.3af)/ePoE | ||
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. | ||
| Power Consumption | Basic: 3.9W (12VDC); 4.6W (24VAC); 5.6W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 10 W (12 VDC); 11.7W (24VAC); 12.1W (PoE) | ||
| Environment | |||
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | ||
| Operating Humidity | ≤95% | ||
| Storage Temperatures | –40 °C to +60 °C (–40 °F to +140 °F) | ||
| Storage Humidity | 10%–95% (RH), non-condensing | ||
| Protection | IP67; IK10 | ||
| Construction | |||
| Casing | Metal | ||
| Product Dimensions | Φ159.1 mm × 118.1 mm (6.26" × Φ4.65") | ||
| Net Weight | 0.91 kg (2.01 lb) | ||
| Gross Weight | 1.22 kg (2.69 lb) | ||
Further details
| AI | Artificial intelligence - Face Capture : Face capture is a software application that automatically captures faces from within a digital image or video frame from a video source . Dahua cameras use advanced deep learning algorithms , trained by a large number of sources that encompass facial data, allowing the camera to quickly and accurately locate faces from the video source and capture facial images. - Face Attribute : Through the use of deep learning algorithms to analyze facial images, Dahua cameras can extract up to six facial attributes from each frame , such as gender, age, expression (happy, calm, surprised, sad, and angry), glasses, masks and moustaches. Customers can gain valuable data via facial attribute statistics. - People counting: following line or area crossing - Perimeter protection: Intrusion, Line crossing (people&vehicle classification) |
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems. This camera supports ONVIF® Standard |
 |
Furthermore, it supports PoE and PoC power technology which has greatly simplified both construction and cabling. Dahua ePoE technology offers a new way to realize long-distance transmission between IP camera and network switch. It allows for more flexible surveillance system design, improves reliability and saves construction and cabling costs. |
 | This camera features a resolution of 5 Megapixels!
|
|
| Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | This camera features 2.7-13.5mm varifocal optics with motorized zoom |
 | Quality IR illuminator for better night vision. This camera also features SMART IR technology. |
 | Cloud function with Lechange (formerly Easy4IP) |
 | Remote visibility on mobile using the Dahua DMSS application. |
 | This camera provides VIDEO ANALYSIS (SMART DETECTION): |
 | This camera features: 1 Input: 5mA 5VDC |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.  |
 |
This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.  |
 | This camera features 1 audio input + 1 audio output |
 | Allows you to adapt the lens to Night/Day vision
|
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 | BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from the inside towards the outside, etc.) the compensation of the light is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | Possibility to insert Micro SD up to 256 GB (not included) |
 | Protection level IP67 (Dust / Immersion) |
 | IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism
|
 | 12VDC power supply not included  |
 | This product is covered by a 24 month warranty. |
