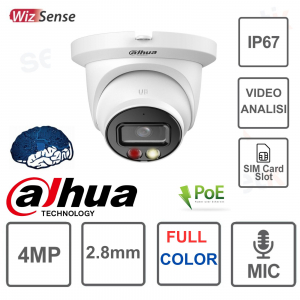

DAHUA DOME CAMERA-IP-4MP-2.8MM-WIZSENSE-WITH VIDEOANALYSIS

-57%

ONVIF POE IP Eyeball Camera - Dahua - IPC-HDW2449TM-S-IL - 4MP 4 Megapixel Resolution - CMOS 4MP 1/2.9" WizSense Technology - Starlight - 2.8mm Optics - IR 30m 1 (IR LED); 1 (Warm light) - Smart Codec H.265+ - Dual Stream - BLC -HLC - WDR 120dB - ROI - 3DNR - Artificial intelligence - FULL COLOR - Integrated microphone - Event alarm - Intelligent monitoring: Intrusion, tripwire (the two functions support classification and detection accurate of vehicles and people) - 256GB MicroSD slot (not included) - IP67 outdoor protection against dust and splashes - Made of plastic and metal. 99.1 mm × Φ121.9 mm (3.90" × Φ4.80")

Reference: IPC-HDW2449TM-S-IL

Brand: Dahua

EAN: 6923172580368

FIND INSTALLER

https://www.setik.biz/en/cameras/9554-dahua-ipc-hdw2449tm-s-il-ip-camera-poe-onvif-eyeball-4mp-28mm-optics-video-analysis-ir-30m.html

€141.12

€328.18 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical Data Sheet Further Details Download

DAHUA CAMERA | IPC-HDW2449TM-S-IL IP 4MEGAPIXEL EYEBALL IP POE ONVIF® FIXED - 2.8MM OPTIC -WIZSENSE- VIDEO ANALYSIS - MICROPHONE- FULL COLOR-STARLIGHT

ONVIF® PoE Eyeball IP camera - Outdoor - Dahua - IPC-HDW2449TM-S-IL
4MP 2688x1520p resolution - 2.8mm fixed lens - Compression up to H.265+ - 1/2.9" Full Color CMOS sensor: color vision in very low light conditions.
1 LED IR illuminator 30 meters and 30 meters warm light (double illumination) - WDR 120dB - BLC - HLC - 3DNR - Mirror - Privacy Masks - Artificial intelligence on board with Starlight technology : perimeter protection / Smart Search - Intelligent monitoring: Intrusion, tripwire (le two functions support classification and accurate detection of vehicles and people).

- Built-in microphone - Event alarm - 256GB Micro SD slot (not included) - RJ45 100M - IP67 outdoor protection - 24 month manufacturer's warranty - Made of plastic and metal - Supports PoE power supply -

Tecnologia WizSense

WIZSENSE TECHNOLOGY:
Launched by Dahua Technology, WizSense is a series of broad-based AI products and solutions that adopt independent AI chip and deep learning algorithm. It can recognize human and vehicle in an image with high accuracy, allowing users to focus on real targets. Powered by Dahua's advanced technology, WizSense makes your videos smart, simple and inclusive.

Intelligent refers to WizSense based on AI chip and deep learning algorithm. It provides various features that realize accurate alerts for people and vehicles, as well as rapid target search, maximizing resources to increase overall efficiency.
Simple means that WizSense offers simple setup, especially for SMD Plus which can be enabled with just one button. It makes customers' daily work easier and also empowers them to make better business decisions.
WizSense inclusiveness is the idea that everyone gains opportunities and benefits from artificial intelligence. With affordable pricing and easy setup of Dahua WizSense, AI is no longer limited to the ivory tower, but is instead applied to real-world scenarios.

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the artificial intelligence used is that which allows the creation of advanced devices for environmental analysis.

Product details

Telecamera IP Dome con risoluzione 4MP e ottica fissa 2.8mm IR LED 30MT

Eyeball camera - Outdoor - IP ONVIF® PoE - Dahua - IPC-HDW2449TM-S-IL
Resolution: 4 MP - 2688 (H) × 1520 (V)
1/2.9" 4MP CMOS image sensor with Full Color Technology
Starlight technology
Fixed lens: 2.8mm
Video compression up to H.265+
Dual Stream
Functions: WDR(120dB) , Day/Night(ICR), 3DNR, BLC, 3DNR, Mirror Mode, Privacy Masking
Motion Detection
WizSense technology
Artificial Intelligence: IVS (PErimeter Protection) and Smart Searching
Double lighting
IR illuminator 1 LED 30 Meters
30m warm light illuminator
Built-in microphone
IP67 protection (Dust/Immersion)
Suitable for indoor/outdoor environments
PoE protocol supported
MicroSD slot (up to 256GB not included)
Dimensions: 99.1 mm × Φ121.9 mm (3.90" × Φ4.80")
Material: metal and plastic
Operating temperature: –40 °C to +60 °C
Net weight: 0.46 kg
24 Months Italian Manufacturer's Warranty

Data sheet

Room

Image Sensor

1/2.9" CMOS

Max.Resolution

2688(H)×1520(V)

ROM

128MB

RAM

128MB

Scanning System

Progressives

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.006 lux@F1.6 (Color, 30 IRE)
0.0006 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.43 ft) (IR), 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Car; Manual

Illuminator Number

1 (IR LED); 1 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed focus

Lens Mount

M12

Focal Length

2.8mm

Max. Openings

F1.6

Field of View

2.8mm: H: 95°; V: 52°; D: 114°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (5.25 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

63.6 m (208.66 ft)

25.4 m

(83.33 ft)

12.7 m

(41.67 ft)

6.4 m

(20.99 ft)

3.6mm

85.4 m (280.18 ft)

34.2 m

(112.20 ft)

17.1 m

(56.10 ft)

8.5 m

(27.89 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Smart Codecs

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32kbps–6144kbps
H.265: 12kbps–6144kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120dB

White Balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto;Manual

Noise Reduction

3D NO

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception; SMD

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP

Interoperability

ONVIF (Profile S/Profile T); CGI; P2P; Milestones

User/Host

6 (Total bandwidth: 36M)

Storage

FTP; SFTP; Micro SD card (support max. 256GB)

Browsers

IE
Chrome
Firefox

Management Software

DSS;DMSS

Mobile Client

iOS;Android

Cyber Security

Configuration encryption; Trusted execution; Digests; Security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrades; Trusted boot; Generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 2.1W (12VDC); 2.5W (PoE)
Max. (H.265 + intelligence on + WDR + warm light): 4.4 W (12 VDC); 5.2W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperatures

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing Material

Inner core: Metal;
Cover: Metal;
Decoration ring: Plastic

Product Dimensions

99.1 mm × Φ121.9 mm (3.90" × Φ4.80")

Net Weight

0.46 kg (1.01 lb)

Gross Weight

0.65 kg (1.43 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera supports Onvif version!
	The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation
	This camera features a resolution of 4 Megapixels! Maximum resolution: 2688 (H) × 1520 (V), progressive image scanning. Supported resolutions: 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
	1/2.9" CMOS sensor, 4MP, with Full COLOR technology. Low brightness, color vision even in night mode With this CMOS sensor it is possible to have color shots even in night mode. Normally, when you enter night mode, color vision becomes black/white. With the SENSOR present, night shots will be clear and in color
	Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	This camera has a 2.8mm fixed lens
	Infrared illuminator with 1 LED and 30 meter range Double lighting: also includes a warm light illuminator up to 30m. This camera also features SMART IR technology. Through this technology , the light emitted by the LEDs is adapted depending on the object framed.
	Remote visibility on mobile using the Dahua DMSS application.
	This camera includes ARTIFICIAL INTELLIGENCE functions Perimeter protection and Smart Search.
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
	It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where recording is difficult (entrances or exits of car parks, recording of license plates, presence of particular lights etc...).
	3D-NR is the most advanced version of Noise Reduction management, it allows still images in the presence of little light and in motion, the currently most powerful solution for obtaining maximum results in the presence of little light.
	This camera is equipped with an on-board microphone
	Possibility of inserting a Micro SD up to a maximum of 256Gb - not included
	Protection level IP67 (Dust / Immersion)
	12V DC power supply NOT included!
	This product is covered by a 24 month warranty.
