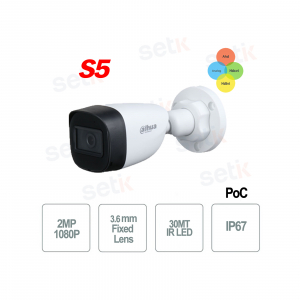

HD CVI 2MP 4in1 POC 3.6mm IR 30M Metal outdoor camera - S5 Dahua

HD CVI 2MP 4in1 POC 3.6mm IR 30M Metal outdoor camera - S5 Dahua
-58%

Dahua HD CVI outdoor surveillance camera Dahua HAC-HFW1200CM-A-POC-S5 , S5 bullet VERSION with 4 technologies in 1: HDCVI / HDTVI / AHD / TVI, Integrated MICROPHONE , 1080P FULL-HD 2MP , 3.6mm lens and sensor 2MP CMOS image. Smart IR illuminator 2 LEDs 30M, IP67 protection, PoC, CVBS output, Day/Night (ICR), Multilingual OSD menu, Metal



Reference: HAC-HFW1200CM-A-POC-S5

Brand: Dahua

FIND INSTALLER

€50.22

€119.56 -58%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


4IN1 BULLET CAMERA HDCVI / HDTVI / AHD / TVI - POC- 2MEGAPIXEL 3.6MM - IR 30 METERS - BUILT-IN MICROPHONE - S5 VERSION - DAHUA

Prodotto Dahua HD CVI 4in1 outdoor camera - Dahua
4in1: HDCVI / HDTVI / AHD / TVI - 2Megapixel 1080P FULL HD - 3.6mm fixed lens
IR illuminator 2 LEDs 30M - Day/Night(ICR), BLC / HLC / DWDR
IP67 protection (Dust/immersion) - 12V DC power supply (not included) - 24 month warranty

Product details

Telecamera Bullet con 4 tecnologie in 1 Dahua
  • S5 VERSION
  • HD CVI 4in1 outdoor camera - Dahua
  • 4 Technologies in 1: HDCVI / HDTVI / AHD / TVI
  • Technologies switchable via OSD Menu or UTC Controller (not included)
  • Resolution: 2Megapixel 2MP FULL HD 1080P
  • 3.6mm Fixed Lens
  • 1/2.7" CMOS image sensor
  • Day/Night(ICR), BLC, HLC, DWDR
  • Smart IR illuminator 2 LEDs 30MT
  • Built-in microphone
  • OSD Multilingual menu
  • Video Output: 1 Channel BNC high definition / CVBS video output (interchangeable)
  • 12V DC power supply (not included)
  • IP67 protection (Dust / Immersion) - Suitable for indoor / outdoor environments
  • PoC
  • Material: Metal
  • Dimension: 166.6mm×69.7mm×70.0mm(6.56"×2.75"×2.75")
  • 24 month warranty

Data sheet

Model HAC-HFW1200CM-A-POC-S5
Room
Image Sensor 2MP CMOS
Effective Pixels 1920(H)×1080(V)
Pixels 2MP
Scanning System Progressives
Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

S/N Ratio >65dB
Min. Illumination 0.02Lux/F1.9, 30IRE, 0Lux IR on
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Car; manual
Illuminator Number 2 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed lens
Mount Type M12
Focal Length 3.6mm
Max. Openings F1.9
Field of View D: 100°; H:84°; V: 45°
Iris Type Fixed iris
Close Focus Distance 0.8 m (2.6 ft)
DORI Distance D: 49.7 m (163.1 ft); W: 19.9 m (65.3 ft); R: 9.9 m (32.5 ft); I: 5 m (16.4 ft)
Video
Frame Rate CVI:
1080p@25/30fps;
720p@25/30fps;
AHD:
1080p@25/30fps;
720p@25/30fps;
TVI:
1080p@25/30fps;
720p@25/30fps;
CVBS: 960H
Resolution 1080P (1920×1080); 720P (1280×720); 960H (960×576/960×480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
White Balance Car/Area WB
Gain Control Car; manual
Noise Reduction 2D NO
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications
Certifications

CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port
Audio Output One channel built-in mic
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply 12V ±30% DC
Power Consumption Max 2.8W (12 VDC, IR on); POC (AF)
Environmental
Operating Consumption

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Storage condition -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Ingress Protection & Vandal Resistance IP67
Construction
Casing Metal throughout the whole casing
Dimensions 166.6mm×69.7mm×70.0mm(6.56"×2.75"×2.75")
Net Weight 0.33 kg (0.73 lb)
Gross Weight 0.43 kg (0.95 lb)

Further details

4 tecnologie in 1 This camera is a QUADRIBRID (4 integrated technologies)
These cameras are at the same time Analog , AHD , HDCVI and HDTVI .

Tecnologia AHDTecnologia HDCVITecnologia HDTVI
Risoluzione 2MP 1080P FULL-HD

2MP resolution, means 5 times the resolution of a common D1 camera:
1/2.7" CMOS image sensor

Ottica fissa 2.8mm This camera is equipped with a 2.8mm fixed lens
Illuminatore IR fino a 30mt

Infrared illuminator with REAL range up to 30MT for night vision.

SMART IR technology .
The light emitted by the LEDs is adapted depending on the object framed.
Illuminatore Smart IR

Menu OSDController UTC

OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day/Night sensitivity, Shutter speed, White balance, light compensation and much more...

The OSD Menu is multi-language

Multi-Technology:

The camera can switch from HDCVI to HDTVI, AHD or Analog via OSD Menu or UTC controller (not included).

Controller Dahua UTC Controller

Funzione Day/Night

It allows you to adapt the lens to night/day vision and the consequent management of the IR illuminator automatically.
Esempio Funzione Day/Night

Funzione IR CUT FILTER

THE IR CUT FILTER IS A MECHANICAL FILTER THAT ALLOWS CORRECT DISPLAY OF IMAGES IN DAYTIME VIEWING CONDITIONS, FILTERING THE TYPICAL INFRARED FREQUENCIES, THUS IMPROVING THE QUALITY OF THE IMAGE. IN NIGHT-TIME CONDITIONS THE FILTER IS REMOVED AS IT IS NECESSARY TO CAPTURE THE TYPICAL IR FREQUENCIES.
Esempio Funzione IR Cut Filter

AGC Automatic Gain Control

The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Esempio funzione AGC Automatic Gain Control

Funzione BLC compensazione luce

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations

Esempio Funzione BLC con vantaggi
Funzione DWDR

D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated into the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

Alimentazione 12V DC This camera requires 12V DC power supply for operation.
Power supply NOT included!
Connettore Alimentatore 12V DC
Materiale con cui è stato creato il dispositivo This camera features Metal Body
24 mesi di garanzia

This product is covered by a 24 month warranty.

Downloads

Download the English brochure
Schema con le dimensioni della telecamera <div class=

4IN1 BULLET CAMERA HDCVI / HDTVI / AHD / ANALOG 2MEGAPIXEL 2.8MM - IR 30 METERS - BUILT-IN MICROPHONE - S5 VERSION - DAHUA

Prodotto Dahua HD CVI 4in1 outdoor camera - Dahua
4in1: HDCVI / HDTVI / AHD / ANALOG - 2Megapixel 1080P FULL HD - 2.8mm fixed lens
IR illuminator 2 LEDs 30M - Day/Night(ICR), BLC / HLC / DWDR / AGC
IP67 protection (Dust/immersion) - 12V DC power supply (not included) - 24 month warranty

Product details

Telecamera Bullet con 4 tecnologie in 1 Dahua
  • S5 VERSION
  • HD CVI 4in1 outdoor camera - Dahua
  • 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOGUE
  • Technologies switchable via OSD Menu or UTC Controller (not included)
  • Resolution: 2Megapixel 2MP FULL HD 1080P
  • 2.8mm Fixed Lens
  • 1/2.7" CMOS image sensor
  • Day/Night(ICR), BLC, HLC, AGC, DWDR
  • Smart IR illuminator 2 LEDs 30MT
  • Built-in microphone
  • OSD Multilingual menu
  • Video Output: 1 Channel BNC high definition / CVBS video output (interchangeable)
  • 12V DC power supply (not included)
  • IP67 protection (Dust / Immersion) - Suitable for indoor / outdoor environments
  • Material: Metal
  • Dimension: 166.6mm×69.7mm×70.0mm(6.56"×2.75"×2.75")
  • 24 month warranty

Data sheet

Model HAC-HFW1200CM-A-S5
Room
Image Sensor 1/2.7 inch CMOS
Effective Pixels 1920(H)×1080(V)
Pixels 2MP
Scanning System Progressives
Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

S/N Ratio >65dB
Min. Illumination 0.02Lux/F1.9, 30IRE, 0Lux IR on
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Car; manual
Illuminator Number 2
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed focus
Mount Type M12
Focal Length 2.8mm
Max. Openings F1.9
Field of View 119° x 101° x 54° (diagonal x horizontal x vertical)
Iris Type Fixed iris
Close Focus Distance 0.5 m (1.7 ft)
Video
Frame Rate CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
AHD: 1080P@25/30fps; 720P@25/30fps;
TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
CVBS: 960H
Resolution 1080P (1920×1080); 720P (1280×720); 960H (960×576/960×480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Car; manual
Gain Control Car; manual
Noise Reduction 2D NO
Smart IR Yes
Electronic Defog Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications
Certifications

CE (EN55032:2015, EN 61000-3-2:2014, EN 61000- 3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port
Audio Output One channel built-in mic (-A)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply 12V ±30% DC
Power Consumption Max 2.7W (12V DC, IR on)
Environmental
Operating Consumption

-40°C to +60°C (-40°F to 140°F); <95% (noncondensation)

Storage conditions -40°C to +60°C (-40°F to 140°F); <95% (noncondensation)
Ingress Protection & Vandal Resistance IP67
Construction
Casing Metal throughout the whole casing
Dimensions 166.6mm×69.7mm×70.0mm(6.56"×2.75"×2.75")
Net Weight 0.33 kg (0.73 lb)
Gross Weight 0.43 kg (0.95 lb)

Further details

4 tecnologie in 1 This camera is a QUADRIBRID (4 integrated technologies)
These cameras are at the same time Analog , AHD , HDCVI and HDTVI .

Tecnologia AHDTecnologia HDCVITecnologia HDTVI
Risoluzione 2MP 1080P FULL-HD

2MP resolution, means 5 times the resolution of a common D1 camera:
1/2.7" CMOS image sensor

Ottica fissa 2.8mm This camera is equipped with a 2.8mm fixed lens
Illuminatore IR fino a 30mt

Infrared illuminator with REAL range up to 30MT for night vision.

SMART IR technology .
The light emitted by the LEDs is adapted depending on the object framed.
Illuminatore Smart IR

Menu OSDController UTC

OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day/Night sensitivity, Shutter speed, White balance, light compensation and much more...

The OSD Menu is multi-language

Multi-Technology:

The camera can switch from HDCVI to HDTVI, AHD or Analog via OSD Menu or UTC controller (not included).

Controller Dahua UTC Controller

Funzione Day/Night

It allows you to adapt the lens to night/day vision and the consequent management of the IR illuminator automatically.
Esempio Funzione Day/Night

Funzione IR CUT FILTER

THE IR CUT FILTER IS A MECHANICAL FILTER THAT ALLOWS CORRECT DISPLAY OF IMAGES IN DAYTIME VIEWING CONDITIONS, FILTERING THE TYPICAL INFRARED FREQUENCIES, THUS IMPROVING THE QUALITY OF THE IMAGE. IN NIGHT-TIME CONDITIONS THE FILTER IS REMOVED AS IT IS NECESSARY TO CAPTURE THE TYPICAL IR FREQUENCIES.
Esempio Funzione IR Cut Filter

AGC Automatic Gain Control

The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Esempio funzione AGC Automatic Gain Control

Funzione BLC compensazione luce

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations

Esempio Funzione BLC con vantaggi
Funzione DWDR

D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated into the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

Alimentazione 12V DC This camera requires 12V DC power supply for operation.
Power supply NOT included!
Connettore Alimentatore 12V DC
Materiale con cui è stato creato il dispositivo This camera features Metal Body
24 mesi di garanzia

This product is covered by a 24 month warranty.

Downloads

Download the English brochure
Schema con le dimensioni della telecamera HAC-HFW1200C-A-S5
" width="500" height="362" />
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
