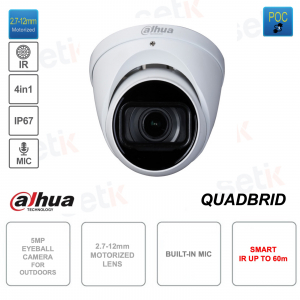

Outdoor Eyeball Camera - 5MP - 2.7-12mm - Microphone - POC - 4in1 - S2 Version

Outdoor Eyeball Camera - 5MP - 2.7-12mm - Microphone - POC - 4in1 - S2 Version
-57%

Dahua - Outdoor camera HAC-HDW1500T-ZA-POC-S2 - S2 version - With 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOGUE, Power via POC - 5MP 2880x1620 resolution - 2.7mm-12mm motorized lens - Smart illuminator IR 2 LEDs 60m - Day/Night (ICR), Microphone , Video Output BNC - DWDR - BLC - HLC - AGC - AWB - Metal - IP67 protection ideal for outdoors.



Reference: HAC-HDW1500T-Z-A-POC-S2

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

4IN1 EYEBALL CAMERA - DAHUA - 5MP - MOTORIZED LENS 2.7 MM~ 12MM - MICROPHONE - POC POWER SUPPLY - S2 VERSION - OUTDOOR - HAC-HDW1500T-ZA-POC-S2

Made by Dahua
Dahua Eyeball outdoor camera - 4in1 - HAC-HDW1500T-ZA-POC-S2 - S2 version
4in1: HDCVI / HDTVI / AHD / ANALOG via 1 BNC channel only - 5MP 2880x1620 resolution - 1/2.7" CMOS sensor - 2.7mm~12mm Varifocal lens - Starlight technology for color vision, even at night - Smart IR illuminator (2 LED), with range up to 60m - Day/Night (ICR) - DWDR - AGC - AWB - 2DNR - Mirror Mode - Privacy Masking - Power supply via POC (Power Over Coax) - IP67 protection ideal for outdoors - Built-in microphone - Case 100 % metal - Power supply NOT included - 24 month manufacturer's warranty.

Product details

Telecamera Dome con risoluzione 2MP e ottica Varifocale 2.7mm~12mm
- 4in1 Eyeball camera - Dahua - HAC-HDW1500T-ZA-POC-S2
- S2 version
- POC (Power Over Coaxial) power supply
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOGUE
- Resolution: 5MP 2880x1620
- Varifocal lens 2.7mm-12mm
- Functions: Day/Night(ICR), BLC, HLC, AGC, DWDR
- Built-in microphone
- Illuminator : Smart IR 2 LEDs 60MT
- Choice of CVI / TVI / AHD / ANALOG video output takes place via 1 BNC port
- IP67 protection (dust / immersion)
- Suitable for outdoor and indoor environments
- Dimensions : φ122mm × 104.8mm
- 24 month manufacturer's warranty

Construction

Casing

Aluminium

Dimensions

Φ122mm×104mm (Φ4.8"×4.1")

Net Weight

0.45kg (0.99lb)

Gross Weight

0.61kg (1.34lb)

Further details

POC - POWER OVER COAX:

This new technology allows common coaxial cameras to be powered directly via the video cable, over which the signal is sent using the same transmission medium. This technical concept is very similar to PoE, already widely used on IP devices and even before on old analog telephones.

The distance coverage of this technology depends on the quality of the cable and the power required by the camera, in any case the guaranteed distances are greater than those of typical 12V power supplies, which have a decidedly greater loss.

Below you will find a purely indicative table from Dahua:

Tecnologia Quadribrida

This camera is a QUADRIBRID (4 integrated technologies)
These cameras are at the same time, Analog , AHD , Hdcvi and Hdtvi .

Tecnologia AHDTecnologia HDCVITecnologia HDTVI

Resolution 5.0 Megapixel (2560x1920)

This camera features a resolution of 5 MP 2880x1620, progressive scan

5MP 1/2.7" CMOS sensor, with starlight technology

Ottica Varifocale This camera is equipped with 2.7mm ~ 12mm Varifocal lens
Illuminatore IR fino a 80mt

Infrared illuminator with 2 LEDs and approximate maximum range of 60m

This camera also features SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted depending on the object framed.

Questo DVR presenta ingressi / uscite audio This camera features a built-in microphone
Allows you to adapt the lens to Night/Day vision

ICR The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from the inside towards the outside, etc.) the compensation of the light is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations


Click to enlarge

AGC_Camera The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

12VDC_Supply 12VDC power supply not included
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Downloads

Download the English brochure
Schema dettagliato con le dimensioni della telecamera HAC-HDW1200T-Z-A-POC-S5
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
