Dahua - HAC-HFW1200CM-IL-A-S6 external bullet surveillance camera - S6 version - 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG switchable - 2Megapixel 1080P FULL-HD , 2.8mm fixed lens - 2MP CMOS sensor - Equipped with 2 illuminators (1 warm light + 1 IR) with a range of 20m each - DWDR , 3DNR, BLC, HLC, AGC, AWB, Mirror Mode, Privacy Masking - Audio: 1 channel in - Integrated microphone on board - Ideal for use in outdoor IP67 - One of the best bullet cameras - Metal case.
FIND INSTALLER
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
Description Product Details Technical Data Sheet Further Details Download

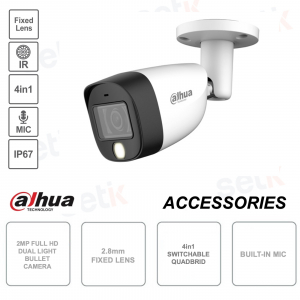

OUTDOOR BULLET CAMERA - DAHUA - SWITCHABLE 4IN1 - 2MP FULL HD 1080P - 2.8MM OPTIC - DUAL ILLUMINATION - SMART IR 20M - MICROPHONE - S6 VERSION - HAC-HFW1200CM-IL-A-S6
S6 version - 4in1: HDCVI / HDTVI / AHD / ANALOG switchable on single BNC port - 2MP Resolution Full HD 1080P - 2.8mm fixed lens - 2MP CMOS sensor - 20m Smart IR illumination (2 illuminators: 1 IR + 1 warm light) - DWDR - HLC, BLC, AWB, AGC, 3DNR - Privacy Masks (8 rectangular zones) - On-board microphone - 1 input audio channel - IP67 protection, ideal for use in systems set up outdoors - Made of metal - Ideal for installation on vertical pole, wall or ceiling.
Product details
- S6 version
- Smart IR 20m
- 2.8mm fixed lens
- IP67 protection (rain / immersion / dust), ideal for use in video surveillance systems set up outdoors
- 12V DC power supply not included
- Made of plastic
- Operating temperature: –40 °C to +60 °C
- 24 month manufacturer's warranty
Data sheet
| HAC-HFW1200CM-IL-A-S6 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 2MP CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max.Resolution | 1920 (H) × 1080 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressives | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | PAL: 1/25 s–1/100000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >65 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | IR: 20 m (65.62 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Car | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
This camera is a QUADRIBRID (4 integrated technologies) Switch Technologies: The camera can switch from HDCVI to HDTVI, AHD or Analog via BNC connector. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | This camera features a resolution of 2Megapixel 2MP! 2MP FUll HD 1920x1080p CMOS sensor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | This camera is equipped with a 2.8mm fixed lens. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Smart IR infrared illuminator and approximate maximum range of 20m 2x on-board illuminators: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated into the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | HLC (High Light Compensation) allows for greater light management in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from the inside towards the outside, etc.) the compensation of the light is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Built-in microphone! 1 audio IN input! | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Protection level IP67 (Dust / Immersion) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | 12VDC power supply not included  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | This product is covered by a 24 month warranty. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
