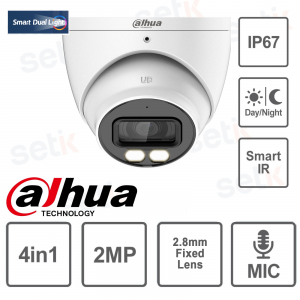

DAHUA DOME CAMERA 4 IN 1 - 2MP-2.8MM - INTEGRATED MICROPHONE

-57%

DAHUA - HAC-HDW1200T-IL-A-S6 - 4in1 2MP camera - 4in1: HDCVI/AHD/HDTVI/CVBS - 2.8mm lens - C2 MP CMOS sensor - Smart Dual Light up to 40m - Day/Night Auto(ICR)/ Color/B/W- 3D NR - DWDR- DC 12V power supply - IP67 protection ideal for outdoor use - With built-in microphone.

Reference: HAC-HDW1200T-IL-A-S6

Brand: Dahua

EAN: 6923172591890

FIND INSTALLER

https://www.setik.biz/en/cameras/9514-dahua-hac-hdw1200t-il-a-s6-dome-camera-4in1-full-color-2mp-smart-dual-illuminator-40m-microphone-28mm-lens.html

€43.54

€101.26 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical Data Sheet Further Details Download

HAC-HDW1200T-IL-A-S6 | DAHUA DOME CAMERA 4 IN 1 - 2MP - 2.8MM OPTICS - SMART DUAL LIGHT 40M - BUILT-IN MICROPHONE - FOR OUTDOORS

Dahua outdoor HDCVI 4in1 Dome 2MP camera - HDW1200T-IL-A-S6

4 Technologies in 1: HDCVI / HDTVI / CVBS / AHD - 2Megapixel 1080P - 2.8mm fixed lens - 2MP" CMOS sensor - BLC; HLC; DWDR- 3DNR - Incorporates Microphone - 40Meter IR illuminator with 4LEDs (2 warm light; 2 IR light ) - IP67 protection for external mounting - Ideal for video surveillance systems in outdoor environments - 12VDC power supply (Power supply not included).

Dahua Smart Dual Light Technology: What is it?

Dahua Smart Dual Light technology adopts an intelligent algorithm to accurately detect targets. The IR illuminator is normally turned on at night. When the target is detected by the camera, the warm light turns on and the camera records color video and key event information. When the subject is outside the monitored area, the warm light turns off and the IR illuminator turns on again, helping to reduce light pollution in the area.

Product details

4in1 eyeball camera - Dahua - HAC-HDW1200T-IL-A-S6
4 Technologies in 1: HDCVI / HDTVI / CVBS / AHD
2MP CMOS image sensor
Dual Illuminator with range up to 40m 4 Illuminators (2x warm light; 2x IR light)
2.8mm fixed lens
Smart Dual Light technology
BLC; HLC; DWDR-3D NO
Built-in microphone
IP67 protection (Rain / Diving)
Made of Metal and Plastic
Power: 12 VDC ± 30% (power supply not included)
Operating temperature: –40 °C to +60 °C (–40 °F to 140 °F); < 95% (without condensation)
24 month manufacturer's warranty

Data sheet

Room

Image Sensor

2MP CMOS

Max.Resolution

1920 (H) × 1080 (V)

Scanning System

Progressives

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30s–1/100000s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)

Illuminator On/Off Control

Car

Illuminator Number

2 (Warm light); 2 (IR light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed focus

Auto Focus

Lens Mount

M12

Focal Length

2.8mm

Max. Openings

F2.0

Field of View

2.8mm: H: 102°; V: 60°; D: 129°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

41.1 m

(135.83 ft)

16.5 m

(42.13 ft)

8.3 m

(27.23 ft)

4.1 m

(13.45 ft)

Video

Video Frame Rate

CVI:
PAL: 1080p@25fps;
NTSC: 1080p@30fps;
AHD:
PAL: 1080p@25fps;
NTSC: 1080p@30fps;
TVI:
PAL: 1080p@25fps;
NTSC: 1080p@30fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto; White balance area

Gain Control

Car

Noise Reduction

3D NO

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

1 channel

Power

Power Supply

12VDC ±30%

Power Consumption

Max 4.1W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperatures

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

φ106.0 mm × 99.2 mm (φ4.17" × 3.91")

Net Weight

0.45kg (0.99lb)

Gross Weight

0.58kg (1.28lb)

Installation

Wall mount; ceiling mount; vertical pole mount

Further details

	This camera is a QUADRIBRID (4 integrated technologies) These cameras are at the same time, Analog , AHD , Hdcvi and Hdtvi .
	This camera is equipped with a 2.8mm fixed lens.
	This camera has a resolution of 2 Megapixels
	Infrared illuminator with approximately maximum range of 40m Double lighting: 2 warm lights and 2xIR Smart Dual Light Technology: Smart Dual Light (default): Switches between IR illuminator and warm light when a target is detected IR mode (optional): Only the IR illuminator is on. It is suitable for scenes where additional warm light is not required, significantly reducing light pollution. Warm light mode (optional): Only warm light is on. It is suitable for scenes that require color video shooting.
	This camera features a built-in microphone.
	Allows you to adapt the lens to Night/Day vision
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from the inside towards the outside, etc.) the compensation of the light is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations
	Protection level IP67 (Dust / Immersion)
	12VDC power supply not included
	This product is covered by a 24 month warranty.
