IN PROMOTION
-35%

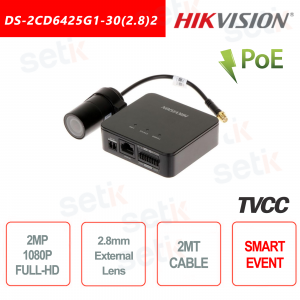

Hikvision DS-2CD6425G1-30(2.8mm)2m IP PoE camera with 2MP 2Megapixel 1080P FULL-HD resolution and 2.8mm external lens with 2m cable . 1/2.8" CMOS sensor, compression up to H.265+, Motion detection and Smart Functions (intrusion, line crossing, perimeter, unattended baggage, removed objects, etc...). WDR 120dB, ROI, BLC, HLC, Defog, 1x RJ45 Ethernet LAN, 1x MicroSD Slot (up to 256GB not included), 1x input + 1x audio output, 1x input + 1x alarm output, 1x RS485, reset key, compatible with iVMS-4200, Hik-Connect. 77.5 mm × 69 mm × 26 mm (3.1" × 2.7" × 1.0")
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
HIKVISION IP POE CAMERA 2MEGAPIXEL FULL-HD 1080P - 2.8MM EXTERNAL LENS WITH 2M CABLE - SMART FUNCTIONS
2Megapixel 2MP FULL-HD 1080P PoE IP camera / 2.8mm external lens with 2m cable - Hikvision
1/2.8" CMOS sensor / Video compression up to H.265+ / WDR 120dB / ROI / Defog / MicroSD slot (max 256GB - not included)
Audio: 1 input + 1 output / Alarm: 1 input + 1 output / RS485 / RJ45 Ethernet LAN / Reset key
2m_SMALL%C3%B2.png "Dahua lens - DS-2CD6425G0-30(2.8mm)2m")
Product details
- PoE IP camera with Hikvision external optics
- 2Megapixel 2MP 1080P FULL-HD resolution
- 2.8mm external lens with 2m cable
- 1/2.8" CMOS sensor
- Compression up to H.265+
- Triple stream
- Smart functions: Intrusion detection/line crossing/perimeter entry and exit/unattended baggage, object removal/audio exception detection/defocus detection/scene change
- Motion detection
- ROI
- Compatible with iVMS-4200, Hik-Connect
- Day/Night, BLC, HLC,
- Audio: 1 input + 1 output
- Alarm: 1 input + 1 output
- RJ45 LAN Ethernet: 1
- RS485: 1
- MicroSD slot (up to 256GB - not included)
- Reset key: yes
- Dimensions: 254mm × 164mm × 130mm (10" × 6.5" × 5.1")
Data sheet
| Model | DS-2CD6425G1-30(2.8mm)2m |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max.Resolution | 1920×1080 |
| Min. Illumination | Color: 0.002 Lux @ (F1.2, AGC ON) |
| Shutter Time | 1/3 s to 1/100,000 s |
| Lens | |
| Focal Length & FOV | 2.8 mm: horizontal FOV: 107.8°, vertical FOV: 57.9°, diagonal FOV: 126.7° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Openings | 2.8mm: F2.0 |
| Video | |
| Mainstream | 50Hz: 25fps (1920×1080, 1280×720) 60Hz: 30fps (1920×1080, 1280×720) |
| Sub Stream | 50Hz: 25fps (640×480, 640×360, 320×240) 60Hz: 30fps (640×480, 640×360, 320×240) |
| Third Stream | 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240) |
| Video compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| H.265 Type | Baseline Profile/Main Profile/High Profile |
| H.265 | Main Profile |
| Bit Rate Control | CVR/BVR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of interest (ROI) | Support 1 fixed region for main stream |
| Audio | |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | 8kHz/16kHz/32kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TL |
| Simultaneous Live View | Up to 15 channels |
| APIs | Open Network Video Interface, ISAPI, SDK, ISUP 5.0 |
| User/Host | Up to 32 users 3 level: administrator, operator, and user |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Client | iVMS-4200, Hik-Connect |
| Web Browsers | Plug-in required live view: IE10, IE11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Image parameters switch | Yes |
| Image settings | Saturation, brightness, contrast, and sharpness adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120dB |
| Image Enhancement | BLC, HLC, defog, 3D DNR |
| Privacy Mask | Yes |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC card, up to 256GB |
| Audio | 1 input (line in), 1 output (line out) |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 mA) |
| RS485 | 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset key | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconnected), video quality diagnosis |
| Smart Events | Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Audio exception detection, defocus detection, scene change detection |
| Linkages | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning |
| General | |
| Power | 12 VDC ± 20%, 0.25 A, max. 3 W, two-core terminal block PoE: 802.3af, Type 1, Class 3, 36 V to 57 V,0.1 A to 0.07A, max. 3.65W |
| Dimension | Main body: 77.5 mm × 69 mm × 26 mm (3.1" × 2.7" × 1.0") L30: Ø 26 mm × 50 mm (Ø 1.0" × 2.0") |
| Package dimensions | Kit/Main body: 254 mm × 164 mm × 130 mm (10" × 6.5" × 5.1") Chamber: 219 mm × 139 mm × 100 mm (8.6" × 5.5" × 3.9") |
| Weight | Main body: approx. 90 g (0.2 lb.) Chamber: approx. 90 g (0.2 lb.) |
| With Package Weight | Main body: approx. 456 g (1.0 lb.) Package approx. 776 g (1.7 lb.) Room approx. 451 g (1.0 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese |
| General Function | One-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter |
| Length of lens cable | 2 m (6.6 ft.) and 8 m (26.2 ft.) optional |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015 |
| Safety | UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Further details
2m_SCHEMA.jpg "Dimensions DS-2CD6425G0-20(2.8mm)2m")
