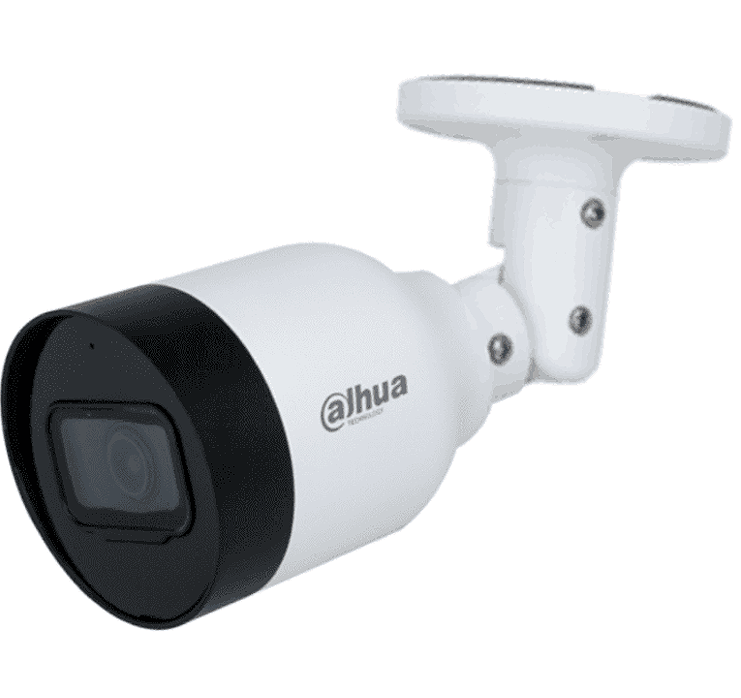

Dahua IP Camera ONVIF® PoE 8MP 3.6mm Bullet IR 30M Microphone

IN PROMOTION -60%

IPC-HFW1830S-S6 Dahua Outdoor ONVIF PoE bullet IP camera 8Megapixel 4K ULTRA-HD, 3.6mm lens, 1/2.7" CMOS sensor. Compression up to H.265+, 30MT IR illuminator, ROI, DWDR, 3D NR, HLC, BLC, Motion Detection, Built-in Microphone, IP67 protection suitable for outdoor environments. 162.1 mm × Φ70.1 mm (6.38" × Φ2.76")

Reference: IPC-HFW1830S-S6

Brand: Dahua

EAN: 6923172506085

FIND INSTALLER

https://www.setik.biz/en/cameras/9284-dahua-ipc-hfw1830s-s6-dahua-ip-camera-onvif-poe-8mp-36mm-bullet-ir-30m-microphone.html

€121.51

€303.78 -60%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical Data Sheet Further Details Download

IPC-HFW1830S-S6 DAHUA | ONVIF POE BULLET IP CAMERA 8MP 8MEGAPIXEL 3.6MM - BUILT-IN MICROPHONE - IR 30 METERS

Dahua ONVIF PoE IP Bullet Camera - Entry Level Series
8Megapixel 4K ULTRA-HD Resolution, 3.6mm Fixed Lens, H.265+ Video Compression, 1/2.7" Sensor
30MT Smart IR LED Illuminator - Built-in Microphone - ROI, DWDR, 3D NR, HLC, BLC, Motion Detection
IP67 protection - 12V power supply not included - 24 month warranty - 162.1 mm × Φ70.1 mm (6.38" × Φ2.76")

Product details

Telecamera IP ONVIF® POE da esterno Dahua 8MP

- Dahua ONVIF® PoE outdoor IP camera - Entry Level series

- 8Megapixel 4K ULTRA-HD resolution
- 3.6mm fixed lens
- 1/2.7" CMOS image sensor

- Video Compression up to H.265+
- Day/Night (ICR), ROI, DWDR, 3D NR, HLC, BLC

- 30 MT Smart IR LED illuminator

- Incorporates microphone
- Suitable for outdoor and indoor environments

- IP67 protection (Dust / Immersion)

- 12V DC power supply not included

- PoE protocol
- Dimensions 162.1 mm × Φ70.1 mm (6.38" × Φ2.76")
- 24 month warranty

Data sheet

Model	IPC-HFW1830S-S6
Room
Image Sensor	1/2.7" CMOS
Effective Pixels	3840(H)×2160(V)
ROM	16MB
RAM	256MB
Scanning System	Progressives
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.04 Lux@F2.0 (Color, 30 IRE) 0.004 Lux@F2.0 (B/W, 30 IRE) 0 Lux (Illuminator on)
S/N Ratio	> 56 dB
IR Distance	30 m (98.43 ft) (IR)
IR On/Off Control	Auto/Manual
IR LEDs	1 (IR LED)
Pan/Tilt/Rotation Range	Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type	Fixed focus
Lens Mount	M12
Focal Length	3.6mm
Max Openings	F2.0
Angle Of View	Horizontal: 87°; Vertical: 47°; Diagonal: 104°
Iris control	Fixed
Close Focus Distance	1.9 m (6.23 ft)
Video
Compression	H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codecs	Smart H.265+; Smart H.264+
Frame Rate	Main stream: 3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	2 streams
Resolution	3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 32kbps–8192kbps H.265: 12kbps–8192kbps
Day/Night	Auto(ICR)/Color/B/W
BLC Mode	BLC/HLC/ DWDR
White Balance	Car; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	OFF/ON (4 areas, rectangular)
Region Of interest	Yes (4 areas)
Smart IR	Yes
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror	Yes
Privacy Masking	4 areas
Audio
Built-in MIC	Yes
Compression	G.711a; G.711Mu; G.726; PCM
Alarm
Alarm event	Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception
Network
Ethernet	RJ-45 (10/100 Base-T
SDK and API	Yes
Cyber Security	Video encryption; configuration encryption; Digests; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast
Interoperability	ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestones
User/Host	6 (Total bandwidth: 48M)
Storage	FTP
Web Viewer	IE, Chrome, Firefox
Management Software	Smart PSS; DSS; DMSS
Smartphones	IOS, Android
Certifications
Certifications	CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
Electrical
Power Supply	12V DC/PoE (802.3af)
Power Consumption	Basic: 2.4W (12V DC); 2.9W (PoE) Max. (ICR + H.265 + max. resolution + main stream + DWDR + IR intensity): 4.4W (12V DC); 5.2W (PoE)
Environmental
Operating Conditions	–40°C to +60°C (–40°F to +140°F)
Operating Humidity	≤95%
Storage Conditions	–40°C to +60°C (–40°F to +140°F)
Ingress Protection	IP67
Construction
Casing	Metal

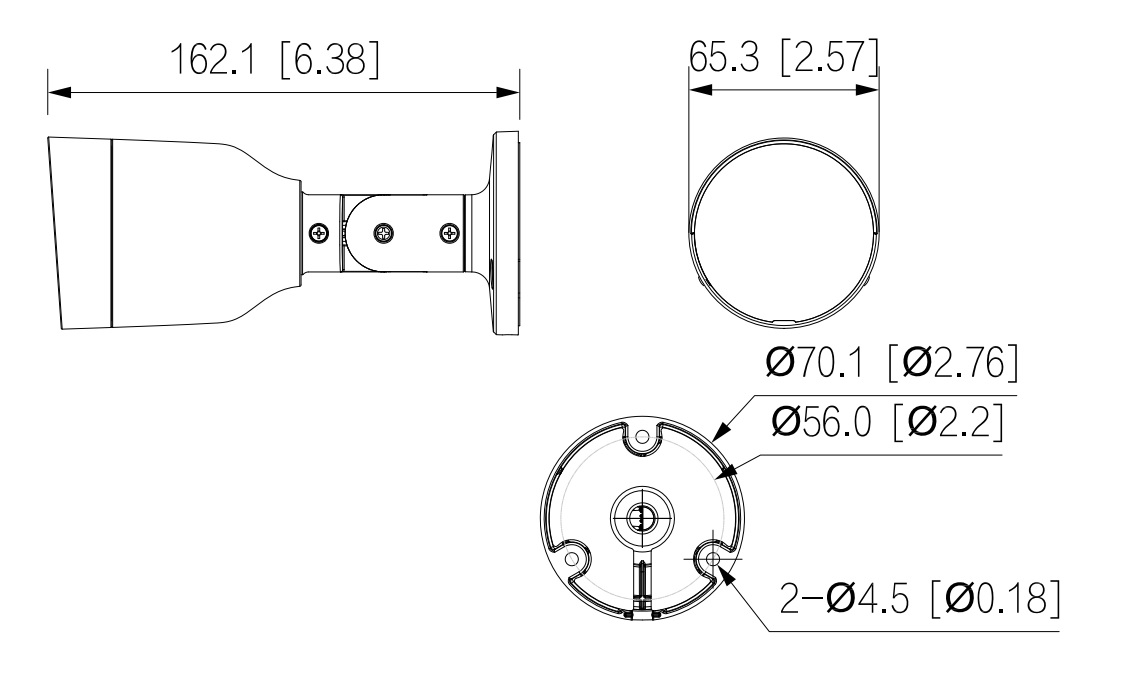

Dimensions	162.1 mm × Φ70.1 mm (6.38" × Φ2.76")
Net Weight	0.32 kg (0.71 lb)
Gross Weight	0.45 kg (0.99 lb)

Further details

	Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems.
	The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation
	New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism.
	This camera has a resolution of 8Megapixel : 1/2.7” 8Megapixel progressive scan CMOS image sensor
	This camera features a built-in microphone
	Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	This camera has a 3.6mm fixed lens
	Infrared illuminator with approximate maximum range of 30m This camera also features SMART IR technology. Through this technology, the light emitted by the LEDs is adapted depending on the object framed.
	This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
	Allows you to adapt the lens to Night/Day vision
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from the inside towards the outside, etc.) the compensation of the light is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations Click to enlarge
	The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
	3D-NR is the most advanced version of NOISE REDUCTION management. It allows still images both in the presence of low light and movement. The currently most powerful solution for obtaining maximum results in the presence of low light.
	12VDC power supply NOT included
	This product is covered by a 24 month warranty.
