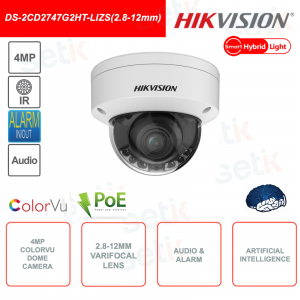

Hikvision ColorVu IP POE Dome Camera 4MP 2.8-12mm Motorized Smart Hybrid Light IR 40M

Hikvision ColorVu IP POE Dome Camera 4MP 2.8-12mm Motorized Smart Hybrid Light IR 40M
-35%

ColorVu Series | DS-2CD2747G2HT-LIZS(2.8-12mm) Hikvision 4 Megapixel 4MP dome PoE IP camera and 2.8-12mm motorized varifocal lens. Smart Hybrid Light technology with 3 additional lighting modes (IR - White Light - Intelligent) range up to 40 meters . Perimeter protection, face capture, motion detection and scenario change. Audio and Alarm supported, WDR 130dB, ROI, BLC, HLC, 3D DNR, Slot for 512GB MicroSD (not included), reset key, 1x RJ45 10/100M Ethernet LAN, Triple Stream, compression up to H265+. Also ideal for outdoor environments IP67 and IK10, metal. Ø 141 mm × 112 mm (Ø 5.55" × 4.41")



Reference: DS-2CD2747G2HT-LIZS(2.8-12mm)

Brand: Hikvision

FIND INSTALLER

€563.82

€867.42 -35%
taxes included
Tax included
 Available in 5 days
 starting



DS-2CD2747G2HT-LIZS(2.8-12mm) | HIKVISION IP POE 4MP DOME SMART HYBRID LIGHT CAMERA WITH COLORVU IR 40MT TECHNOLOGY

Made by Hikvision




Hikvision IP PoE Dome Camera | ColorVu Series
4 Megapixel 4.0 MP 4MP / 2.8-12mm motorized lens / Compression up to H.265+ / Triple Stream
Smart Hybrid Light with ColorVu : Color vision even at night and 3 additional lighting modes (IR, White light, Intelligent)
Video analysis : Perimeter protection, face capture, scenario change and motion detection // Audio and Alarm Inputs/Outputs
WDR 130dB, BLC, HLC, 3DNR, ROI - 100M RJ45 LAN - 512GB MicroSD card slot (not included) - Power supply not included - 24 month warranty


ColorVu Series:

Hikvision ColorVu technology provides 24/7 vibrant, color-filled images thanks to advanced F1.0 lenses and high-performance sensors. The F1.0 super aperture collects more light to produce brighter images. Advanced sensor technology can largely improve the utilization of available light.

VIVID DETAILS EVEN AT NIGHT
ColorVu cameras capture vivid color details, thanks to sensor and lens technology.

HIGH BRIGHTNESS

The lens of these cameras is an F1.0 . Such a large aperture allows it to collect a large amount of light and capture color images even in the dark.

SENSOR WITH SURPRISING QUALITY

The sensor installed in ColorVu products has a sensitivity of 0.0005 Lux and has allowed a notable improvement in the quality of the shots.
Thanks to the BBAR coating and ED glass, the images provided are without backlight effects and with reduced bright glare.

ACUSENSE TECHNOLOGY - EXTREME INTELLIGENCE

ColorVu products are also extremely intelligent thanks to the Acusense algorithm present. Reduction of false alarms.

SML TECHNOLOGY - WHITE LED ON BOARD

All the cameras in this line have an integrated white LED, with many adjustable functions, all adjustable during installation; from courtesy light, to smart activation in conditions of total absence of light.

SIMPLIFIED COMMISSIONING

Thanks to the 4 pre-configured profiles and the possibility of creating two customized ones, ColorVu products allow easy installation for professionals in the sector.


Smart Hybrid Light Technology:

What is it about?

Conventional cameras with IR light provide black and white images which usually result in a loss of detail. Although white light cameras offer colorful images, when the light is always on it may be disturbing.

To solve these critical points, Hikvision has created a new supplementary lighting technology: the Smart Hybrid Light. Security cameras with Smart Hybrid Light provide three additional lighting modes. Users can benefit from selecting the ideal lighting mode for their applications.


How does it work?

Security cameras equipped with Smart Hybrid Light allow users to flexibly switch between three additional lighting modes, adapting to virtually any need or application.

POE (Power Over Ethernet):

The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation

Resolution:

This camera features a resolution of 4Megapixel 4.0MP 4MP

Motorized Varifocal Lens:

This camera features a motorized 2.8-12mm varifocal lens.
Ideal for installation and monitoring



H.265+ compression



What is H.265+?

An intelligent algorithm self-developed by Hikvision which can greatly reduce the bitrate of video based on standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for greater use of ultra HD surveillance cameras, such as 8 MP and 12 MP cameras.



HIK-CONNECT

Hik Connect allows you to control the device remotely

Audio

There is 1 input + 1 audio output

Alarm

There is 1 input + 1 alarm output

ROI (Region Of Interest):

The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
Ultra Smart Funzione ROI

Day/Night:

It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

ULTRA WDR up to 130dB


WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.

BLC (Back Light Compensation):

it is one of the 3 possible steps in managing images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc.) light compensation is one of the most as complex as possible, the BLC function allows discreet adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):

Integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

3D-DNR:

More advanced version of NOISE REDUCTION management. It allows still images both in the presence of low light and movement. The currently most powerful solution for obtaining maximum results in the presence of low light.

MICRO SD SLOT:

512GB Micro SD slot ( NOT INCLUDED )

Diet:

To operate this camera, a 12 VDC ± 25%, 0.66 A, power supply is required (not included)

APIs

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface , RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browsers

Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

SNR

≥ 52 dB

Wide Dynamic Range (WDR)

130dB

Privacy Mask

4 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB

Audio

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Reset Key

Yes

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

Smart Events

Scene change detection

Linkages

Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning, trigger alarm output

Deep Learning Function

Face Capture

Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

Power

12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.5W

Material

Metal

Dimension

Ø 141 mm × 112 mm (Ø 5.55" × 4.41")

Package Dimension

244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")

Weight

Approx. 820 g (1.8 lb.)

With Package Weight

Approx. 1200 g (2.6 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

Heartbeat, mirror, password reset via email, pixel counter, anti-banding

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish , Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7

Safety

UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU

Protection

IP67: IEC 60529-2013, IK10: IEC 62262:2002

Further details

Downloads

Download the English brochure
