Wizmind | IPC-HDBW5241R-ASE-S3 Dahua PoE AI Outdoor PoE IP camera , with Artificial Intelligence , 2 Megapixel 2MP , 1/2.8" Deeplight CMOS sensor , 2.8mm lens, compression up to H.265+ . Smart IR illuminator 1 LED 50MT , Day /Night (ICR), WDR 120dB, SMD, Face Capture, Perimeter Protection, People Counting, Heat Map, Standard Video Analysis, Audio, Alarm, MicroSD Slot (Max. 512GB - Not Included!), IP67/IK10
€168.29
€442.86 -62%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

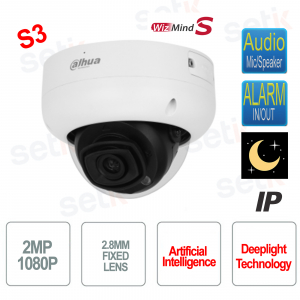

OUTDOOR IP ONVIF® POE CAMERA - 2 MEGAPIXELS WITH ARTIFICIAL INTELLIGENCE - DAHUA
2Megapixel resolution - 2.8mm lens - CMOS 1/2.8" Deeplight - SMD 3.0 - Compression up to H.265+
IR illuminator 1 LED 50M - Day/Night (ICR) - WDR 120dB - Audio/Alarm - MicroSD slot
Artificial Intelligence: Face Capture, Perimeter Protection, People Counting, Heat Map
WIZMIND S TECHNOLOGY: |
Product details
- Outdoor AI IP camera Onvif PoE - Dahua
- Wizmind
- Resolution 2Megapixel 2MP
- 2.8mm fixed lens
- 1/2.8” sensor with Deeplight Technology
- Video compression up to H.265+
- 4 Streams
- WDR 120dB - Day/Night (ICR) - 3DNR,AWB,AGC,BLC
- Smart IR illuminator 1 LED 50MT
- Artificial Intelligence : Face Capture, Perimeter Protection, People Counting
- Standard Video Analysis: Objects abandoned / lost
- SMD 3.0
- Remote viewing with DMSS / P2P
- Audio : 1 Input + 1 Output
- Alarm : 1 Inputs + 1 Output
- Micro SD memory slot (Up to 512GB - not included)
- IP67 / IK10 protection (indoor/outdoor)
- Material: Metal
- Power supply NOT included
- 24 months warranty
Data sheet
model | IPC-HDBW5241R-ASE-S3 |
Room | |
Image Sensor | 1/2.8” CMOS |
Effective Pixels | 1920(H)×1080(V) |
ROM/RAM | 4GB / 1GB |
Scanning System | Progressives |
Electronic shutter speed | Auto/Manual 1/3s–1/100,000s |
Min Illumination | 0.0007 lux@F1.6(Color, 30 IRE) 0.0004 lux@F1.6(B/W, 30 IRE) 0 lux (Illuminator on) |
S/N Ratio | >56dB |
IR Distance | 50m (164.04ft) (IR) |
IR On/Off Control | Car; manual |
IR LEDs | 2 (IR LEDs) |
Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° |
lens | |
LensType | Fixed-Focal |
Lens mount | M12 |
Focal Length | 2.8mm |
Max. Openings | F1.6 |
angle of view | H: 106°; V: 56°; D: 127th |
Iris Control | Fixed |
Close Focus Distance | 0.7m (2.30ft) |
Smart Events | |
IVS | abandoned object; missing object |
Heatmap | Yes |
Professional, intelligent | |
IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
SMD 3.0 | Less false alarm, longer detection distance |
Face Detection | face detection; track; snapshots; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one inch photo or custom; snapshot strategies (real-time snapshots, quality priority and optimization snapshots); face angle filter; optimization time setting |
People Counting | Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video | |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codecs | Smart H.265+; Smart H.264+ |
AI Coding | AI H.265; AI H.264 |
Video Frame Rate | Main stream: 1080p@1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps) ) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
Stream Capability | 4 streams |
Resolution | 1080p (1920×1080); 1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352×288/352×240) |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 32kbps–12032kbps H.265: 12kbps–7424kbps |
Day/Night | Auto(ICR)/Color/B/W |
BLC extension | Yes |
HLC extension | Yes |
wdr extension | 120dB |
Scene Self-adaptation (SSA) | Yes |
White Balance | Car; natural; street lamp; outdoors; manual; regional custom |
Gain Control | Car |
Noise reduction | 3D NO |
motion detection | OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) | Yes (4 areas) |
defog | Yes |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
Mirrors | Yes |
Privacy Masking | 8 areas |
Audio | |
Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
Alarm Event | No SD cards; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people-gathering; parking detection; scenes changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMDs; people counting in the area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
SDKs and APIs | Yes |
Cyber Security | configuration encryption; trusted execution; digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrades; trusted boot; firmware encryption; generation and importing of X.509 certification |
NetworkProtocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; smtp; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI |
User/Host | 20 (Total bandwidth: 80M) |
Storage | FTP; SFTP; Micro SD card (support max. 512GB); NOS |
Browsers | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
management software | Smart PSS Lite; DSS; DMSS extension |
Mobile Clients | iOS; android |
Port | |
Audio inputs | 1 channel (RCA port) |
Audio Outputs | 1 channel (RCA port) |
Alarm Inputs | 1 channel in: wet contact, 5 mA 3V–5 VDC |
Alarm Output | 1 channel out: wet contact, 300mA 12V DC |
General | |
Power Supply | 12VDC/PoE (802.3af)/ePoE |
power consumption | Basic: 4.1W (12VDC); 5.2 W (PoE) Max. (H.265 + WDR+ Intelligence on + IR on): 6.8 W (12 VDC); 8.8W (PoE) |
Operating Conditions | –40°C to +60°C (–40°F to +140°F) |
Operating Humidity | ≤95% |
Storage Temperatures | –40°C to +60°C (–40°F to +140°F) |
Ingress Protection/ Vandal Resistance | IP67; IK10 |
Casing | Metal |
Dimensions | 94.0mm × Φ122.0mm (3.70" × Φ4.80") |
Net Weight | 712.9 g (1.57 lb) |
Gross Weight | 986 g (2.17 lb) |
Further details
New WizMind Series | S series Based on deep learning algorithms, the Dahua WizMind S-series network camera offers a number of intelligent functions that greatly improve the accuracy of audio and video analysis. It supports video metadata, intelligent sound detection, face detection, perimeter protection, people counting and more. | |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera is ONVIF® compatible | |
Dahua's in-house designed ePoE technology adopts advanced 2D-PAM3 modulation from the physical layer, and realizes full duplex transmission over 800 meters at 10Mbps speed, or 300 meters at 100Mbps speed via Cat 5 or coaxial cable. Dahua ePoE technology provides a new way to realize long distance transmission between IP camera and network switch. It allows for more flexible surveillance system design, improves reliability, and saves construction and wiring costs. | |
AI | Artificial intelligence - Face Capture : Face capture is a software application that automatically captures faces from within a digital image or video frame from a video source . Dahua cameras use advanced deep learning algorithms , formed from a large number of sources that pack facial data, allowing the camera to quickly and accurately locate faces from the video source and capture facial images. - People counting: after crossing the line or zone - Perimeter protection: Intrusion, Line crossing (people&vehicles classification) - Heat map
| |
This camera features 2Megapixel 1080P FULL HD resolution | |
This camera has a fixed 2.8mm lens | |
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression | |
IPC WizMind S series has upgraded Starlight and Starlight+ low light effects to a higher level called Deeplight. Deeplight cameras use deep learning algorithms to process images, effectively reducing noise, resulting in better images with greater clarity in low-light environments or at night. | |
Stream 1: 1080p@1–25/30fps) Stream 2: D1@(1–25/30fps) Stream 3: 1080p@(1–25/30fps) Stream 4: 720p@(1–25/30fps) | |
Quality IR illuminator for better night vision. This camera is also equipped with SMART IR technology. | |
Remote visibility on mobile using the Dahua DMSS application. | |
This camera also provides basic video analysis functions: - Recognition of lost, abandoned objects | |
This camera features 1 audio input + 1 audio output | |
This camera has 1 input + 1 alarm output | |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light. | |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present. | |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. | |
This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image. | |
It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog | |
Protection level IP67 ( Dust / Immersion ) | |
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism | |
Possibility to insert Micro SD up to a maximum of 512Gb - not included | |
Power supply NOT included | |
This product is covered by a 24 month guarantee. |
