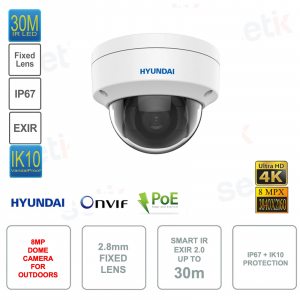

IP POE ONVIF Dome Camera - Outdoor - 4K Ultra HD 8MP - 2.8mm - Smart IR 30m - IP67 - IK10

IP POE ONVIF Dome Camera - Outdoor - 4K Ultra HD 8MP - 2.8mm - Smart IR 30m - IP67 - IK10

HYU-1027 - Equivalent SF-IPD934W-8E - 8MP 4K Ultra HD IP POE ONVIF Camera - 8MP 1/2.5" CMOS Sensor - 2.8mm Fixed Lens - Smart Codec H.265+ and Dual Stream Video - Smart IR 30m EXIR 2.0 - BLC, HLC, WDR 120dB, 3D-DNR - ROI - Mirro Mode - Privacy Masks - RJ45 100M - IP67 and IK10 protection against vandalism - In aluminum alloy - Weight 400g.

Reference: HYU-1027

Brand: Hyundai Security

FIND INSTALLER

€254.09

taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity


Videosorveglianza Hyundai Security

Description Product Details Data Sheet Further Details Download

HYUNDAI DOME CAMERA 8 MEGAPIXEL - 4K ULTRA HD - 2.8MM FIXED LENS - IP POE ONVIF® - SMART IR 30 MT - IP67 - IK10 - HYUNDAI - HYU-1027

Hyundai Security

HYU-1027 - Hyundai Dome IP POE ONVIF DA outdoor camera 8MP and smart IR illuminator 30 meters
1/2.5" 8MP CMOS sensor - 2.8mm fixed lens - Dual Stream With Smart Codec H.265+ - Day/night with removable mechanical filter - 3D-DNR, BLC, HLC, WDR 120 dB - ROI - RJ45 100M LAN Ethernet - IP67 protection for outdoors and IK10 against vandalism - Aluminum alloy body - Weight 400g.

Product details

Gamma di prodotti Hyundai

HYUNDAI CATALOG:

Are you looking for a HYUNDAI product but couldn't find it on our website?

Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email.

This camera is ONVIF® compatible

Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems.

The advantage of a PoE camera is obvious: it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system. A PoE camera ensures constant voltages and simple installation
Fixed OpticsThis camera is equipped with a 2.8mm fixed lens.
4K Ultra HD Resolution

New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
Greater detail available, greater sense of depth and realism.

This camera has an 8Mpx 3480x2160 resolution

This camera has a resolution of 8Mpx

Built-in 1/2.5" CMOS sensor 8MP 4K Ultra HD 3840x2160p!

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Illuminatore IR 20 MT

EXIR technology

SMART IR illuminator with a maximum range of 30 meters!

EXIR 2.0 TECHNOLOGY

This technology remedy the classic annoyances of the traditional IR illuminator.

In detail:

1) NO IR REFLECTION OR BLEEDING:

Having the IR LEDs positioned separately from the camera lens completely eliminates possible internal IR reflections and IR Bleeding, a serious problem on dome cameras due to the presence of the glass dome.

2) BEST IR COVERAGE:
Usually, the IR is integrated in a circular array with various LEDS around the lens.

This most often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.

3) LESS ISSUES WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the hotter IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so with flat-faced EXIR cameras, on which the contact surfaces are much smaller.

Tecnologia EXIR 2.0

Funzione Day/Night Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Esempio Funzione Day/Night
ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
Backlight Compensation

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations.

Esempio Funzione BLC con vantaggi

Filtro IR CUT The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Esempio Funzione IR Cut Filter
Funzione ROI This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image. Ultra Smart Funzione ROI
IP67 protection against dust and immersion

Protection level IP67 ( Dust / Immersion )

Ideal professional solution for video surveillance systems set up outdoors!

IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism


12V 3A power supply A 12VDC power supply is required for the operation of this camera (not included)
12V DC power supply
Garanzia 3 anni This product is covered by the manufacturer's 3-year warranty!

Data sheet

HYU-1027

8 megapixel 1/2.5" CMOS image sensor

Resolution: 8MP (3840x2160), 4MP (2560x1440), 1080P (1920x1080), 720P (1280x720), VGA (640x480), Q720P (640x360)

H.265+, H.265 and MJPEG video compression

Stream 1: 8MP, 4MP, 1080P, 720P (12.5/15fps)

Stream 2: VGA, Q720P (25/30fps)

Day/Night mode with removable mechanical filters (ICR)

0.01 lux F2.0 (colour), 0 lux IR On

Smart IR: 30 meters (EXIR 2.0)

2.8mm fixed optics

Angle of view: 102°(H), 53°(V), 123°(D)

Imaging modes: BLC, HLC, WDR 120dB, 3D-DNR

1 fixed ROI zones for main stream and sub stream

Mirror mode, saturation, brightness, contrast, sharpness, gain and white balance adjustable via client software or web browser

4 privacy masks

Network interface: RJ45 (10/100M) auto adaptive

Network protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP, 802.1x, SSL/TLS, PPPoE

Onvif (S/G), ISAPI, SDK, ISUP support

Up to 32 users and 6 remote views

Compatible with IE, Chrome, Firefox browsers

Plug&Play connection with NEXTGEN NVR

Compatible with DDNS DEMES

Power supply: 12V DC (±25%) / PoE (802.3af)

Power consumption: 5W (12V) / 6.5W (PoE)

Operating Temperature -30°C ~ +60°C

Humidity: <95% (non-condensing)

IP67 degree of protection

Vandal proof IK10

Aluminum alloy housing

Dimensions: Ø110 x 82.4mm

Weight: 400g
