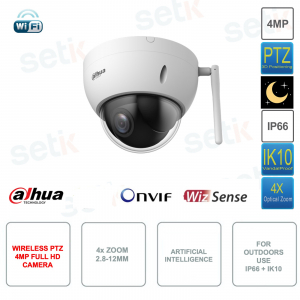

SD22404DB-GNY-W - Dahua WIRELESS WIFI IP POE ONVIF PTZ 4 Megapixel Camera, 4x Optical Zoom (2.8~12mm) and 1/2.8" CMOS sensor with Starlight Technology, H.265+ Smart - Triple Stream, Day/Night (ICR ), BLC, HLC, AGC, Motion Detection, ROI, EIS, Defog, DWDR - Artificial Intelligence - WIFI 2.4Ghz - MicroSD 512GB slot (not included) - RJ45 LAN 100M - IP66 and IK10 anti-vandal protection - Ideal for outdoor use - TVS 6000V lightning protection.
FIND INSTALLER
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
STARLIGHT POE ONVIF IP CAMERA FOR OUTDOORS - PTZ - 4MP - WIFI - H.265+ / DWDR / ARTIFICIAL INTELLIGENCE - DAHUA - SD22404DB-GNY-W
4MP 2560x1440p Resolution - 4x Optical Zoom - 2.8-12mm Varifocoal Lens - H.265+ Compression and Triple Stream - 1/2.8" Starlight CMOS
Artificial Intelligence with perimeter protection, SMD and Face Detection - WIFI 2.4Ghz band 150Mbps - PFA Technology - Day/Night (ICR) - DWDR - EIS - Defog - BLC - HLC - AWB - Digital Zoom 16x - Motion Detection - RJ45 LAN 100M - 152GB MicroSD slot (not included) - IP66 and IK10 protection (ideal for outdoor use) - Without IR illuminator - 24 month manufacturer's warranty.
Product details
- Outdoor ONVIF® POE WIFI IP camera - PTZ - Dahua - SD22404DB-GNY-W
- Resolution4 Megapixels 2560x1440p
- 2.8-12mm varifocal lens
- 4x Optical Zoom + 16x digital zoom
- 1/2.8" CMOS sensor with Starlight Technology
- Starlight technology: Color night vision!
- WIFI 2.4Ghz (802.11n; IEEE802.11b; 802.11g)
- Video compression up to H.265+
- Triple Stream
- Artificial Intelligence Features: Perimeter Protection, SMD and Face Detection
- Day/Night(ICR), DWDR
- Motion Detection, ROI, Defog, EIS, BLC, HLC
- Remote viewing with Dahua DMSS application
- IP66 protection (Rain/Dust) - Suitable for indoor/outdoor environments
- IK10 protection (vandalism)
- TVS 6000V lightning protection.
- MicroSD slot (up to 512GB - not included)
- Equipped with IR illuminator
- Dimension: 89mm×Φ122mm
- Operating temperature: –30 °C to +60 °C
- Diet:
12VDC, 1A ± 10%
POE (802.3af) - 24 month manufacturer's warranty
Data sheet
Wifi| SD22404DB-GNY-W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/2.8" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pixels |
4MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max.Resolution |
2560(H)×1440(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ROM |
128MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM |
512MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
1/1s–1/30,000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressives |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min Illumination |
Color: 0.005lux@F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wi-Fi–Wireless Standard |
802.11n; IEEE802.11b; 802.11g |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wi-Fi–Wireless Frequency Range |
2.4GHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wi-Fi–Wireless Transmission Rate |
150Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
NetworkProtocol |
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; smtp; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS extension |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF(Profile S&G&T); P2P; CGI; SDKs |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Streaming Method |
Unicast/Multicast |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User/Host |
20 (total bandwidth: 64M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
FTP; Micro SD card (512GB); NOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browsers |
IE 9 and later versions |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
management software |
DSS; DMSS extension |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Clients |
iOS; android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE: CE-LVD: IEC 62368-1/ CE-EMC/EN55032/ EN61000-3-3/EN IEC61000-3-2/EN50130-4/EN55035 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Linkage |
Capture; presets; tours; patterns; recordings; alarm digital input; send email |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Event |
Motion/Tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12VDC, 1A ± 10% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
power consumption |
Basic: 2.7W Max.: 4.8W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30°C to +60°C (–22°F to +140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
≤ 95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperatures |
–30°C to +60°C (–22°F to +140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
≤ 95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP66, IK10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
89mm × Φ122mm (3.50" × Φ4.80") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.5kg (1.10lbs) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.7kg (1.54lbs) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 |
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. This camera is ONVIF® compatible |
 |
4MP 4 Megapixel 2560x1440p resolution |
 |
Mainstream: 4M/3M/1080p/1.3M/720p@(1–25/30fps) Sub stream 1: D1/VGA/CIF@(1–25/30fps) Sub stream 2: 720p@(1–25/30 fps) |
 |
4x Optical Zoom ( 2.8-12mm) + 16x Digital Zoom |
 |
It supports 3D Intelligent Positioning with DH-SD protocol. In addition to the movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets Generic PTZ Functions: Pan/Tilt Range: Pan: 0° to 355° Tilt: 0° to +90° Manual Control Speed: Pan: 0.1°/s–100°/s Tilt: 0.1°/s–60°/s??????? Preset Speed: Pan: 100°/s; Tilt: 60°/s Presets: 300 PTZ Mode: 5 Patterns, 8 Tours Idle Motion: Patterns; Presets; Tours Protocol: SD Pelco-P/D(Auto recognition) |
|
|
1/2.8" Sony® STARVIS™ sensor with STARLIGHT technology. Low brightness, color vision even in night mode With the Starlight CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black/white. With the SENSOR present, night shots will be clear and in colour
|
 |
It has WIFI wireless technology WiFi: Yes Wi-Fi–Wireless Standard: 802.11n; IEEE802.11b; 802.11g Wi-Fi–Wireless Frequency Range: 2.4GHz Wi-Fi–Wireless Transmission Rate: 150Mbps |
|
|
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
This camera features ARTIFICIAL INTELLIGENCE functions |
 |
Remote visibility on mobile using the Dahua DMSS application. |
 |
D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.  |
 |
DEFOG It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 |
This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 |
It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically |
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies. This improves the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entrances or exits of parking lots, shooting of license plates, presence of particular lights, etc...) |
 |
IP66: Guarantees protection from dust and water jets (rain) |
 |
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 |
Possibility to insert Micro SD up to a maximum of 512GB - not included |
 |
12V DC power supply NOT included in the package
|
 |
This product is covered by a 24 month guarantee. |
