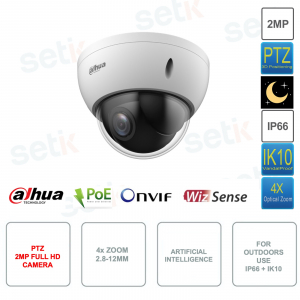

PTZ Starlight IP POE ONVIF Camera - 2MP Full HD - 2.8-12mm 4x Zoom - Artificial Intelligence - For Outdoor

PTZ Starlight IP POE ONVIF Camera - 2MP Full HD - 2.8-12mm 4x Zoom - Artificial Intelligence - For Outdoor
-57%

SD22204DB-GNY - Dahua 2 Megapixel POE ONVIF PTZ IP Camera, 4x Optical Zoom (2.8~12mm) and 1/2.8" CMOS sensor with Starlight Technology , H.265+ Smart - Triple Stream, Day/Night (ICR), BLC, HLC, AGC, Motion Detection, ROI, EIS, Defog, DWDR - Artificial intelligence - 512GB MicroSD slot (not included) - RJ45 LAN 100M - IP66 and IK10 vandal-proof protection - Ideal for outdoor use.



Reference: SD22204DB-GNY

Brand: Dahua

EAN: 6923172541253

FIND INSTALLER

€219.28

€509.96 -57%
taxes included
Tax included
 Available from 30 December 2024
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


POE IP CAMERA ONVIF STARLIGHT FOR OUTDOOR - PTZ - 2MEGAPIXEL FULL HD - H.265+ / DWDR / ARTIFICIAL INTELLIGENCE - DAHUA - SD22204DB-GNY

Made by Setik
Dahua ONVIF® POE IP external camera - SD22204DB-GNY
2Megapixel Full HD Resolution - 4x Optical Zoom - 2.8-12mm varifocoal optics - H.265+ and Triple Stream Compression - CMOS 1/2.8" Starlight
Artificial Intelligence with perimeter protection, SMD and Face Detection - PFA Technology - Day/Night (ICR) - DWDR - EIS - Defog - BLC - HLC - AWB - Digital Zoom 16x - Motion Detection - RJ45 LAN 100M - 152GB MicroSD slot (not included) - IP66 and IK10 protection (ideal for outdoor use) - Not equipped with IR illuminator - 24 month manufacturer's warranty.

Product details

Telecamera Videosorveglianza Speed Dome PTZ Dahua
  • Outdoor POE IP camera ONVIF® PTZ Dahua - SD22204DB-GNY
  • 2 Megapixel resolution
  • 2.8-12mm varifocal lens
  • 4x Optical Zoom + 16x digital zoom
  • 1/2.8" Sony® STARVIS™ CMOS sensor with Starlight Technology
  • Starlight Technology: Color Night Vision!
  • Video compression up to H.265+
  • Triple Stream
  • Artificial Intelligence Features: Perimeter Protection, SMD and Face Detection
  • Day/Night(ICR), DWDR
  • Motion Detection, ROI, Defog, EIS, BLC, HLC
  • Remote viewing with Dahua DMSS application
  • IP66 protection (Rain/Dust) - Suitable for indoor/outdoor environments
  • IK10 protection (vandalism)
  • MicroSD slot (up to 512GB - not included)
  • Not equipped with IR illuminator
  • Dimension: 89mm × Φ122mm
  • Operating temperature: –30 °C to +60 °C
  • Diet:
    12VDC, 1A ±10%
    POE (802.3af)
  • 24 month manufacturer's warranty

Data sheet

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS
SD22204DB-GNY

Room

Image Sensor

1/2.8" CMOS

Pixels

2 MP

Max.Resolution

1920 (H) × 1080 (V)

ROM

128MB

RAM

256 MB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressives

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6

Lens

Focal Length

2.8mm–12mm

Max. Openings

F1.6–F3.0

Interoperability

ONVIF(Profile S&G&T); P2P; CGI; SDK

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64M)

Storage

FTP; Micro SD card (512GB); NAS

Browsers

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
iOS 10 and later versions.

Management Software

DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE: CE-LVD: IEC 62368-1/ CE-EMC/EN 55032/EN IEC 61000-3-2/EN55024/EN55035/EN50130-4

FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014

Port

Alarm Linkage

Capture; presets; tours; pattern; recordings on SD card; alarm digital input; send email

Alarm Event

Motion/Tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

Power

Power Supply

12VDC, 1A ±10%
POE (802.3af)

Power Consumption

Basic: 2.3W
Max.: 6.1W

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤ 95%

Storage Temperatures

–30 °C to +60 °C (–22 °F to +140 °F)

Storage Humidity

≤ 95%

Protection

IP66, IK10

Structure

Product Dimensions

89mm × Φ122mm (3.50" × Φ4.80")

Net Weight

0.5kg (1.10lb)

Gross Weight

0.7 kg (1.54 lb)

Further details

PoE power supply The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation
ONVIF® All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems.

This camera is ONVIF® compatible
2.0MPX

2Megapixel FULL HD 1080P resolution, which means 5 times the resolution of a common D1 camera!

Full HD 1920x1080p resolution.

Main stream: 1080p/1.3M/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)
Zoom Ottico da 4x

4x Optical Zoom ( 2.8-12mm) + 16x Digital Zoom

Infrared illuminator Supports Intelligent 3D Positioning with DH-SD protocol. In addition to movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets

Generic PTZ Functions:

Pan/Tilt Range: Pan: 0° to 355° Tilt: 0° to +90°
Manual Control Speed: Pan: 0.1°/s–100°/s Tilt: 0.1°/s–60°/s???????
Preset Speed: Pan: 100°/s; Tilt: 60°/s
Presets: 300
PTZ Mode: 5 Patterns, 8 Tours
Idle Motion: Pattern; Presets; Tours
Protocol: SD Pelco-P/D(Auto recognition)

1/2.8" Sony® STARVIS™ sensor with STARLIGHT technology.

Low brightness, color vision even in night mode

With the Starlight CMOS sensor it is possible to have color shots even in night mode.

Normally, when you enter night mode, color vision becomes black/white.

With the SENSOR present, night shots will be clear and in color

Smart H.265+ video encoding

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

This camera includes ARTIFICIAL INTELLIGENCE functions
- Perimeter protection
- Face detection
- SMD

Full HD

Remote visibility on mobile using the Dahua DMSS application.

DWDR function

D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated into the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
DEFOG
It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
Funzione ROI This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
Ultra Smart Funzione ROI
Day/Night

It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically

ICR

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies. This improves image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

BLC

BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where the recording is difficult (entrances or exits of car parks, recording of license plates, presence of particular lights etc...)

Protezione IP66 contro polvere e getti d'acqua IP66: Guarantees protection from dust and water jets (rain)

IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism

MicroSD Recording

Possibility of inserting a Micro SD up to a maximum of 512GB - not included

12VDC_Supply

12V DC power supply NOT included in the package

Italian Guarantee icon This product is covered by a 24 month warranty.

Downloads

Download the English brochure
Dimensioni della telecamera  SD22204UE-GN-W
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
