AI IP ONVIF PoE camera Dahua IPC-HF5241F-ZE-S3 - Indoor box - S3 version - 2 Megapixel FUll HD resolution - 1 / 2,8 "CMOS sensor 2 megapixels STARVIS with H.265+ and 4 Video Streams , attack CCS optics - , Day/Night (ICR), WDR 120dB, ROI, Motion Detection, EIS, Defog, AWB - On board microphone - Audio - Alarm - RJ45 LAN - RS485 - MicroSD 512GB slot - On board artificial intelligence - Metal body .
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
AI IP BOXED CAMERA S3 VERSION - UP TO 2 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - AUDIO - ALARM - DAHUA - IPC-HF5241F-ZE-S3
IP ONVIF® POE Boxed Camera - Dahua - IPC-HF5241F-ZE-S3
S3 version - 2Megapixel 2 MP - CCS lens mount - 1/2.8" 2MP CMOS sensor -
Day/Night(ICR) - WDR 120dB - ROI - Audio 2in/1out and Alarm 2in/2out - Integrated microphone
Indoor Camera - 512GB MicroSD slot (not included) - Cloud P2P - 24 months manufacturer's warranty.
Product details
- Resolution: 2 Megapixel FULL HD
- Optics with CCS attachment (not supplied)
- Video Compression up to H.265+ with 4 Video Streams
- 2MP 1/2.8” CMOS image sensor
- Day/Night (ICR) - ROI - WDR 120dB - Defog
- Without IP66 protection (Indoor)
- Remote viewing with DMSS
- Power Supply: 12VDC/24VAC/PoE (802.3af)/ePoE
- 24 months warranty
Data sheet
| IPC-HF5241F-ZE-S3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max.Resolution | 1920(H)×1080(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 4GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 1GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressives | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3s–1/100,000s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min Illumination | With 10mm–40mm lens: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >56dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens mount | C/CS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Object Detection | Smart abandoned object; smart missing object | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD 3.0 | Less false alarm, longer detection distance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TO SSA | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection | face detection; track; snapshots; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshots, quality priority and optimization snapshots); face angle filter; optimization time setting. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Counting | Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Heatmap | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshots; snapshot optimization; optimal face snapshot upload. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Sound Detection | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codecs | Smart H.265+; Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Coding | AI H.265; AI H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Mainstream: 1080p@(1–25/30fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability | 4 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 1080p (1920×1080); 1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352×288/352×240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | H.264: 32kbps–12032kbps; H.265: 12kbps–7424kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Auto(ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2 channels out: dry contact, 1,000mA 30V DC/500mA 50V AC
analog output
1 channel (CVBS output: BNC)
Power
Power Supply
12VDC/24VAC/PoE (802.3af)/ePoE
power consumption
Basic: 4.8W (12VDC); 5.0W (24VAC); 5.6W (PoE)
Max. (H.265+ WDR+ Intelligence on): 8.8 W (12 VDC); 10.5W (24VAC); 11.1W (PoE)
environment
Operating Temperature
–30°C to +60°C (–22°F to +140°F)
Operating Humidity
≤95%
Storage Temperatures
–40°C to +60°C (–40°F to +140°F)
Storage Humidity
10%–95% (RH), non-condensing
structure
Casing material
Metal

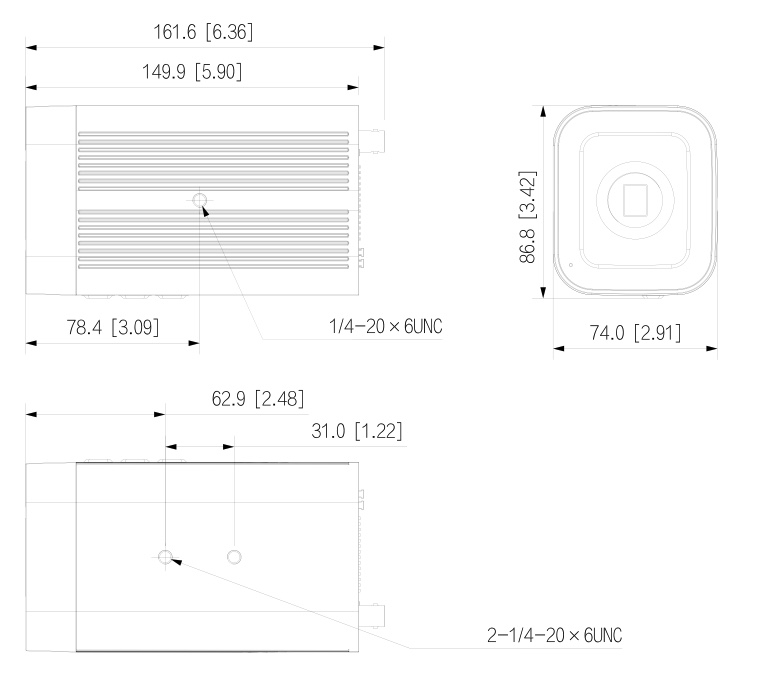

Product Dimensions
161.6mm × 86.8mm × 74.0mm (6.36" × 3.42" × 2.91") (L × W × H)
Net Weight
0.76kg (1.68lbs)
Gross Weight
0.98kg (2.16lbs)
Further details
| AI | Artificial intelligence - Face Detection : Face capture is a software application that automatically captures faces from within a digital image or video frame from a video source . Dahua cameras use advanced deep learning algorithms , formed from a large number of sources that pack facial data, allowing the camera to quickly and accurately locate faces from the video source and capture facial images. - Perimeter Protection: Dahua's perimeter protection features have greatly improved the accuracy. Perimeter protection reduces false alarms and reduces the pixel count requirement for object detection. - People Counting: This feature uses advanced image processing technology to capture insights from within images. The camera combines this information with a deep learning algorithm for analyzing it and detects human bodies and tracks objects of interest, in real time. The camera also provides entry and exit statistics for a single individual with an accurate count of 95% - Heat map - TO SSA - SMD 3.0 - Intelligent sound detection - Video Metadata - Smart Searching |
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. This camera supports the ONVIF® standard |
  |
Dahua ePoE technology provides a new way to realize long distance transmission between IP camera and network switch. It allows for more flexible surveillance system design, improves reliability, and saves construction and wiring costs. ECO-Savvy 3.0! Improvements introduced: - Most powerful chip that combines intelligence, efficiency and ease of use. - Higher FPS already starting from 1080P resolution - Wide range of built-in features: intelligent detection, including face detection, tripwire detection and intrusion detection. - Starlight technology - WDR enhancement technology (140dB) - Triple video streams
|
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | This camera features a resolution of 2Megapixel 2 MP! 1/2.8" 2Megapixel CMOS sensor |
 | Camera suitable for indoor environments! Without IP66 protection and IR illuminator! |
 | Cloud function |
 | Remote visibility on mobile using the Dahua DMSS application. |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 | Allows you to adapt the lens to Night/Day vision
|
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 | BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shooting from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations |
| This camera has 2 Audio inputs and 1 Audio output Integrated microphone |
 | This camera has 2 inputs + 2 alarm outputs |
 | Possibility to insert Micro SD up to a maximum of 512GB (not included) |
 | RS485 port present |
 | Power supply:
|
 | This product is covered by a 24 month guarantee. |
