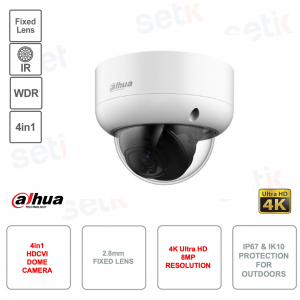

HDCVI Dome Camera 4K Ultra HD 8MP - 4in1 - 2.8mm fixed lens - Smart IR 40m - S2 Version

HDCVI Dome Camera 4K Ultra HD 8MP - 4in1 - 2.8mm fixed lens - Smart IR 40m - S2 Version
-57%

Dahua - HDCVI 4in1 Dome Camera - Outdoor - HAC-HDBW1801EA-S2 - S2 Version - 4in1 CVI/CVBS/AHD/TVI switchable, on coaxial cable - 8MP 4K Ultra HD resolution - 2.8mm fixed lens - 4K 3840x2160p progressive CMOS sensor - Smart IR 40m (3 IR illuminators) - WDR 120dB - AWB - Day/Night (ICR) - HCL - BLC - Defog - Mirror Mode - 3DNR - Video output on BNC port - IP67 protection from outdoor and IK10 against vandalism - Power supply 12 VDC - Metal.



Reference: HAC-HDBW1801EA-S2

Brand: Dahua

EAN: 6923172544360

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

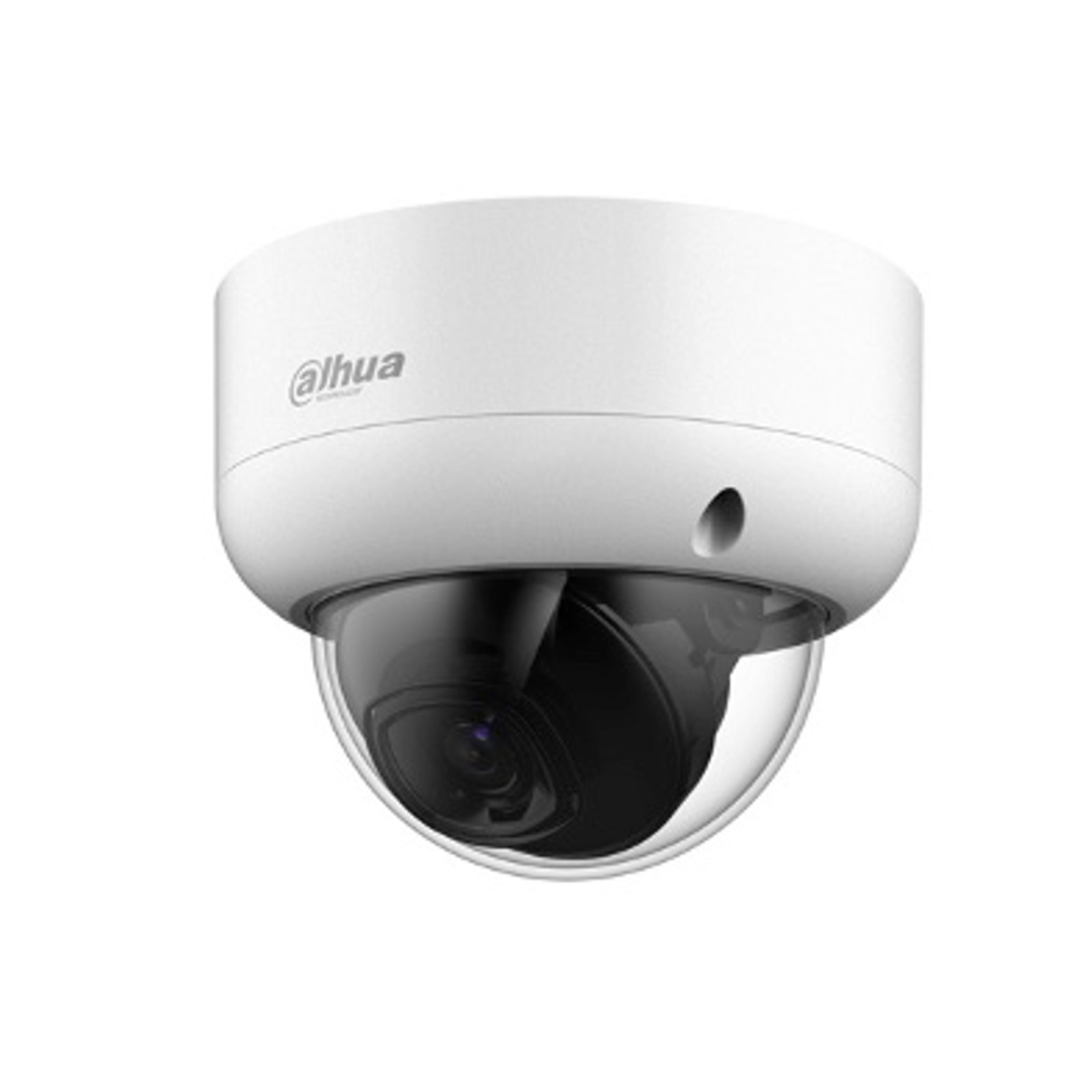

OUTDOOR DOME CAMERA - DAHUA - 4K ULTRA HD 8MP - 2.8MM - 4IN1 - WDR 120dB - SMART IR 40m - IP67 / IK10 PROTECTION - S2 VERSION - HAC-HDBW1801EA-S2

Made by Dahua
Dome Dahua 4in1 outdoor camera - 4K Series - HAC-HDBW1801EA-S2
S2 version - 4in1: HDCVI / HDTVI / AHD / ANALOG switchable - 8MP 4K Ultra-HD 3840x2160p - 2.8mm fixed lens - 4K CMOS sensor - Smart IR 3 illuminators 40m - Day/Night (ICR) - WDR 120dB - BLC/HLC/ Electronic Defog/3DNR/Mirror/Privacy - Metal case - IP67 and IK10 protection against vandalism - Ideal for outdoor systems - 12 VDC power supply - Power supply NOT included - 24 months warranty - For pole or wall mounting. or ceiling.

Product details

Telecamera Bullet con risoluzione 8MP e ottica fissa 2.8mm
- Outdoor surveillance camera - Dahua - HAC-HDBW1801EA-S2
- S2 version
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG, switchable, on coaxial cable
- Resolution: 4K ULTRA-HD up to 8Megapixel 3840x2160p, progressive scan
- 4K CMOS image sensor
- 2.8mm fixed lens
- Day/Night(ICR), BLC, HLC, AGC, 3DNR, Electronic Defog, AWB
- WDR 120dB
- Smart IR 3 LED illuminator up to 40m
- Choice of CVI / TVI / AHD / ANALOG video output
- Video output on BNC port
- Power supply: 12VDC ± 30%
- Suitable for indoor and outdoor environments
- Metal casing
- Protection: IP67 (indoor/outdoor)
- Protection: IK10, ideal for protecting against vandalism
- Dimensions: Φ112.0mm × 89.1mm
- Weight: 0.45kg
- Operating temperature: –40 °C to +60 °C
- Installation: wall, ceiling, vertical pole
- 24 months manufacturer's warranty

Data sheet

HAC-HDBW1801EA-S2

Room

Pixels

8MP

Image Sensor

4K CMOS

Max.Resolution

3840(H)×2160(V)

Scanning System

Progressives

Electronic Shutter Speed

Net Weight

0.45kg (0.99lb)

Gross Weight

0.64kg (1.41lbs)

Installation

wall mount; ceiling mount; vertical pole mount

Further details

Tecnologia Quadribrida

This camera is a FOUR HYBRID (4 Integrated Technologies)
These cameras are at the same time Analog , Ahd , Hdcvi and Hdtvi .

Tecnologia AHDTecnologia HDCVITecnologia HDTVI

4K Risoluzione Ultra HD

New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
Greater detail available, greater sense of depth and realism.

Questa telecamera ha una risoluzione 8Mpx 3480x2160

This camera has a resolution of 8Megapixel 4K ULTRA-HD

4K Ultra-HD 3840x2160p progressive scan image sensor.

Fixed opticsThis camera features a 2.8mm fixed lens
Illuminatore IR fino a 50mt

Infrared illuminator with 3 illuminators, and approximate maximum range of 40m.

This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted according to the object framed.

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
Allows you to adapt the lens to Night/Day vision

ICR extension The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.

BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shooting from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations


Click to enlarge

AGC_Camera The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Protezione IP67 contro polveri e immersioni Protection level IP67 ( Dust / Immersion )


IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism

TLC_DEFOG.jpg DEFOG (electronic)
It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
Material from which the device was created
This camera features a metal frame.
12VDC_Supply 12VDC power supply not included
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.

Downloads

Download the English brochure
