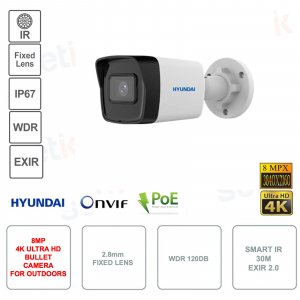

Outdoor POE ONVIF IP Bullet Camera - 8MP 4K ULTRA HD - 2.8mm lens - IP67 - Smart IR 30m EXIR 2.0

Outdoor POE ONVIF IP Bullet Camera - 8MP 4K ULTRA HD - 2.8mm lens - IP67 - Smart IR 30m EXIR 2.0

HYU-1025 - Equivalent SF-IPB025W-8E - Hyundai IP POE ONVIF video surveillance camera - 8MP 4K ULTRA HD resolution - Ideal for outdoor use - 2.8mm fixed lens - 8MP 3840x2160p CMOS 1/2.8" sensor - Smart IR 30m EXIR 2.0 - H. 265+ Smart Codec with Dual Stream - Day/Night (ICR) - BLC, HLC, WDR 120dB, 3D-DNR - ROI - RJ45 Ethernet LAN 100M interface - IP67 protection, ideal for outdoor use - Made of plastic and metal - Power supply 12V DC/ PoE.



Reference: HYU-1025

Brand: Hyundai Security

FIND INSTALLER

€244.76

taxes included
Tax included
 Available in 5 days
 starting


Description Product Details Data Sheet Further Details Download

OUTDOOR IP POE ONVIF BULLET CAMERA - 8MP 4K ULTRA HD RESOLUTION - 2.8MM FIXED LENS - SMART IR 30M EXIR 2.0 - IP67 - HYUNDAI - HYU-1024

Hyundai Security

HYU-1025 - HYUNDAI SECURITY - IP POE ONVIF 8MP Bullet Outdoor Camera
SF-IPB025W-8E equivalent
2.8mm fixed lens - 1/2.8" 8MP 4K Ultra HD CMOS sensor - 3840x2160p progressive scan resolution - EXIR 2.0 Smart IR Illuminator 30m - H.265+ Smart Codec - Dual Stream - WDR120dB - BLC - 3DNR - ROI - Interface RJ-45 LAN Ethernet 10/100M network - In plastic and metal - Up to 32 users and 6 remote views - Ideal for outdoor use, with IP67 protection (Rain/Dust) - Extended 3 Year Hyundai Warranty!

Product details

Gamma di prodotti Hyundai

HYUNDAI CATALOG:

Are you looking for a HYUNDAI product but couldn't find it on our website?

Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email.

This product complies with the Onvif standard

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera is ONVIF® compatible

PoE power supply The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation
4K Ultra HD Resolution New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
Greater detail available, greater sense of depth and realism.
This camera has an 8Mpx 3480x2160 resolution

This camera has a resolution of 8 Megapixels!

8MP 4K Ultra HD progressive scan CMOS sensor with 3840x2160p resolution.

Ottica fissa This camera is equipped with a 2.8mm fixed lens
Smart H.265+ video encoding

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

IR illuminator up to 30mt

EXIR technology

Smart IR Illuminator with EXIR 2.0 Technology.

Maximum range 30 meters

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the object framed.
Tecnologia Smart IR

INTEGRATED EXIR 2.0 TECHNOLOGY.

This technology remedy the classic annoyances of the traditional IR illuminator.

In detail:

1) NO IR REFLECTION OR BLEEDING:

Having the IR LEDs positioned separately from the camera lens completely eliminates possible internal IR reflections and IR Bleeding, a serious problem on dome cameras due to the presence of the glass dome.

2) BEST IR COVERAGE:
Usually, the IR is integrated in a circular array with various LEDS around the lens.

This most often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.

3) LESS ISSUES WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the hotter IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so with flat-faced EXIR cameras, on which the contact surfaces are much smaller.

Tecnologia EXIR 2.0

Filtro IR CUT

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Esempio Funzione IR Cut Filter

Icon Day/Night function Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Example Day/Night function
ULTRA_WDR_TLC.jpgULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
ROI function This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
IP67 protection against dust and immersion IP67: Guarantees protection from dust and water jets (rain)
Alimentazione 12V DC

A 12VDC power supply is required for the operation of this camera (not included)

PoE Power Supported.
Alimentazione 12V DC

Garanzia 3 anni This product is covered by a 3 Year Warranty!

Data sheet

HYU-1025

1/2.8" 8 megapixel CMOS image sensor

Resolution: 8MP (3840x2160), 5MP (2592x1944), 4MP (2688x1520), 1080P (1920x1080), 720P (1280x720), VGA (640x480), Q720P (640x360)

H.265+, H.265, H.264+, H.264, H.264 and MJPEG video compression

Stream 1: 8MP (12.5/15fps), 5MP (20fps), 4MP, 1080P, 720P (25/30fps)

Stream 2: 720P, VGA, Q720P (25/30fps)

Day/Night mode with removable mechanical filters (ICR)

0.01 lux F2.0 (colour), 0 lux IR On

Smart IR: 30 meters (EXIR 2.0)

2.8mm fixed optics

Viewing angle: 108°(H), 60°(V), 127°(D)

Imaging modes: BLC, HLC, WDR 120dB, 3D-DNR

1 fixed ROI zone for main stream

Image rotation, saturation, brightness, contrast, sharpness, gain and white balance adjustable via client software or web browser

4 privacy masks

Network interface: RJ45 (10/100M) auto adaptive

Network protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP

Onvif(S), ISAPI, SDK support

Up to 32 users and 6 remote views

Compatible with IE, Chrome, Firefox browsers

Plug&Play connection with NEXTGEN NVR

Compatible with DDNS DEMES

Power supply: 12V DC (±25%) / PoE (802.3af)

Power consumption: 5W (12V) / 6.5W (PoE)

Operating temperatures -30°C ~ +60°C

Humidity: <95% (non-condensing)

IP67 degree of protection

Metal and plastic housing

Dimensions: 69.1 (W) x 66 (H) x 170.8 mm

Weight: 270g
