HYU-1026 - Equivalent SF-IPD820WA-5E - Hyundai Dome IP POE ONVIF video surveillance camera - 5MP 2560x1920p resolution with progressive scan - 2.8mm fixed lens - 1/2.7" 5MP CMOS sensor - Smart H.265+ and Dual Stream Codec - BLC, WDR 120dB, 3D-DNR - ROI - Day/Night(ICR) - RJ45 100M LAN interface - IP67 / IK10 outdoor protection against vandalism - Metal and plastic body.
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

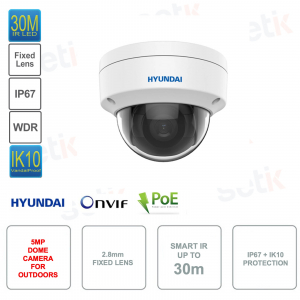

OUTDOOR IP POE ONVIF DOME CAMERA - 5MP - 2.8MM LENS - SMART IR 30M - IP67 AND IK10 PROTECTION - HYUNDAI SECURITY - HYU-1026
5Megapixel resolution 2560x1920 - 2.8mm fixed lens - 5MP 1/2.7" CMOS sensor - Smart IR with range up to 30m - WDR120dB - HLC - BLC - 3DNR - ROI - RJ45 100M network interface - TCP/IP network protocols - 32 users and 6 remote views - IP67 protection, ideal for outdoor video surveillance systems - IK10 protection against vandalism - Hyundai 3 Year Extended Warranty!
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports Onvif version |
 | This camera features a resolution of 5Megapixel 5 MP! Supported resolutions: |
 | Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
| This camera is equipped with a 2.8mm fixed lens. |
| Smart IR illuminator Maximum range 30 meters |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entries or exits of car parks, shooting of license plates, presence of special lights, etc...).  |
 | Protection level IP67 ( Dust / Immersion ) |
 | IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 | A 12VDC power supply is required for the operation of this camera (not included)  |
 | This product is covered by a 3 Year Warranty! |
Data sheet
| model | HYU-490 |
| Room | |
| Image Sensor | 5MP CMOS sensor |
| digital resolution | 2560x1944 |
| Minimum Illumination | 0.01 lux F1.2 color (AGC On) / 0 lux IR On |
| lens | 2.7 ~ 13.5mm (103°~32.1°) motorized lens |
| Day & Night | IR cut filter |
| IR Illuminator | Smart IR: 20 meters |
| OSD menus | via coax |
| White Balance | ATW/MWB, AGC |
| Backlight compensation | BLC, HLC |
| Gain Control | 3D-DNR , real WDR 120dB |
| Other | Mirror mode, sharpness and brightness adjustment |
| Working temperatures | -40°C~+60°C |
| RH: | ?90% (without condensation) |
| Ingress Protection | IP67 / IK10 |
| Material | Metal case |
| power supplies | 12V DC (±25%) |
| consumption | Max. 6W |
| Dimensions | 145x111.3mm |
| Weight | 860 g |
