HYU-1039 - Equivalent SF-T940-WIDE-5P4N1 - Hyundai Dome 4in1 camera - 4 technologies in 1: CVI/TVI/AHD/CVBS switchable - 5MP 2560x1944 resolution - 5MP CMOS sensor - 2.4mm wide angle lens - Smart IR up to 30m - OSD via coaxial - AGC - AWB - MWB - DWDR - 3DNR - Day/night(ICR) - BLC, HLC, Global - IP67 protection - Metal body - 12V DC power supply - Ideal for outdoor video surveillance systems.
FIND INSTALLER
discover the available quantity

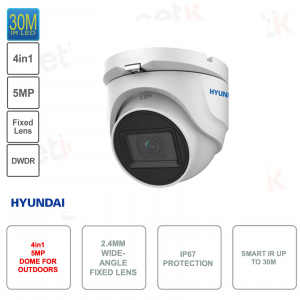

HYUNDAI DOME CAMERA 5MEGAPIXEL - 4in1 CVI TVI AHD CVBS - 2.4MM FIXED WIDE ANGLE LENS - SMART IR30 - OUTDOOR IP67 - HYU-1039
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 | This camera is a FOUR HYBRID (4 Integrated Technologies) These cameras are at the same time Analog , Ahd , Hdcvi and Hdtvi .    |
| FIXED OPTICS This camera is equipped with a 2.4mm fixed wide angle lens |
 | This camera features a resolution of 5MP 2560x1944, progressive scan. 5MP CMOS sensor |
| Infrared illuminator, with an approximate maximum range of 30 meters.
|
 | DAY/NIGHT Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present. |
 | BLC (Back Light Compensation) It is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shooting from inside out, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations |
 | HLC (High Light Compensation) allows for greater light management, in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.  |
 | D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.  |
 | IP67: Guarantees protection against dust and immersion |
 | A 12VDC power supply is required for the operation of this camera (not included)  |
 | This product is covered by the manufacturer's 3-year warranty. |
Data sheet
| HYU-1039 |
5 megapixel CMOS sensor |
Digital resolution: 5MP (2560x1944), 4MP (2560x1440), 1080P (1920x1080) |
Frames per second: 20fps @5MP (TVI/AHD), 25/30fps @4MP (TVI/CVI/AHD), 25/30fps @1080P (TVI) |
4-in-1 video output (switchable) |
Day/night mode with removable mechanical filters (ICR) |
0.01 lux F1.2 color / 0 lux IR On |
Smart IR up to 30 metres |
2.4mm wide angle optics |
Viewing angle: 110°(H), 81°(V), 137°(D) |
OSD via coaxial |
Picture modes: BLC, HLC, Global, Digital WDR, 2D-DNR |
Brightness, sharpness, mirror and Smart IR adjustment |
Auto and manual white balance |
Automatic gain control |
Power supply: 12V DC (±25%) |
Power consumption: 4.3W (max.) |
Operating temperature range: -40°C ~ +60°C |
Relative humidity: <90% (non-condensing) |
Degree of protection IP67 |
Metal housing |
Dimensions: Ø82.6 x 90 x 79.37mm |
Weight: 289g |
