HYU-1024 - Equivalent SF-IPB025WA-5E - Hyundai IP POE ONVIF video surveillance camera - 5MP resolution - Outdoor use - 2.8mm fixed lens - 5MP 1/2.7" CMOS sensor - Smart IR 30m - H.265+ Smart Codec with Dual Stream - Day/Night (ICR) - BLC, WDR 120dB, 3D-DNR - ROI - RJ45 Ethernet LAN 100M interface - IP67 protection, ideal for outdoor use - In plastic and metal - 12V DC/PoE power supply.
FIND INSTALLER
Description Product Details Data Sheet Further Details Download

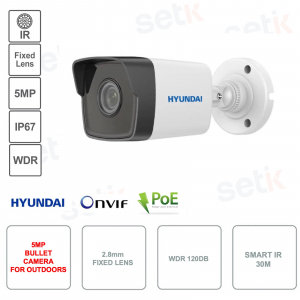

OUTDOOR IP POE ONVIF BULLET CAMERA - 5MP RESOLUTION - 2.8MM FIXED LENS - WDR120DB - IP67 - HYUNDAI - HYU-1024
HYU-1024 - HYUNDAI SECURITY - IP POE ONVIF Bullet Outdoor Camera
SF-IPB025WA-5E equivalent
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera is ONVIF® compatible |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
 | This camera has a resolution of 5 Megapixels 5MP progressive scan CMOS sensor with 2560x1920p resolution. |
 | This camera is equipped with a 2.8mm fixed lens |
 | Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
| LIGHTING Maximum range 30 meters This camera is also equipped with SMART IR technology.
|
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 | IP67: Guarantees protection from dust and water jets (rain) |
 | A 12VDC power supply is required for the operation of this camera (not included) PoE Power Supported. |
 | This product is covered by a 3 Year Warranty! |
Data sheet
| HYU-1024 |
5 megapixel 1/2.7" CMOS image sensor |
Resolution: 5MP (2560x1920), 4MP (2560x1440), 3MP (2304x1296) 1080P (1920x1080), 720P (1280x720), VGA (640x480), Q720P (640x360), QVGA (320x240) |
H.265+, H.265, H.264+, H.264, H.264 and MJPEG video compression |
|
Stream 1: 5MP (12.5/15fps), 4MP (20fps), 3MP, 1080P, 720P (25/30fps) |
Stream 2: VGA, Q720P, QVGA (25/30fps) |
Day/Night mode with removable mechanical filters (ICR) |
0.028 lux F2.0 (colour), 0 lux IR On |
Smart IR: 30 meters |
2.8mm fixed optics |
View angle: 100°(H), 74°(V), 130°(D) |
Imaging modes: BLC, WDR 120dB, 3D-DNR |
1 fixed ROI zone for main stream and sub-stream |
Saturation, brightness, contrast and sharpness adjustable via client software or web browser |
Network interface: RJ45 (10/100M) auto adaptive |
Network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1x |
Onvif (S/G), ISAPI support |
Up to 32 users and 6 remote views |
Compatible with IE, Chrome, Firefox and Safari browsers |
Plug&Play connection with NEXTGEN NVR |
Compatible with DDNS DEMES |
Power supply: 12V DC (±25%) / PoE (802.3af) |
Power Consumption: 5W (12V) / 6.5W (PoE) |
Operating Temperature -30°C ~ +60°C |
Humidity: <95% (non-condensing) |
IP67 degree of protection |
Metal and plastic housing |
Dimensions: Ø70 x 172.7 mm |
Weight: 300g |
