SD6CE245GB-HNR - Dahua - IP POE ONVIF PTZ camera - 2MP Full HD resolution - 1/2.8" 2MP FUll HD CMOS sensor with STarlight technology / 24/7 color vision) - 3.95-177.75mm varifocal lens (45x optical zoom) - IR 6LEDs 250m - Artificial Intelligence - Day/Night (ICR) - BLC - HLC - WDR120DB - AGC - 3DNR - AWB - Audio - Alarm - RJ45 - RS485 - CVBS Video Out - Protection IP67 outdoor / TVS8000 from lightning / IK10 from acts vandalism - For outdoor use.
FIND INSTALLER
€1,264.81
€2,941.42 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

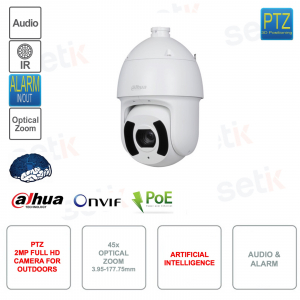

IP POE SPEED DOME PTZ CAMERA - 2 MEGAPIXEL FULL HD - 45x 3.95-177.75mm - STARLIGHT - AUTO TRACKING - IR 250M - ARTIFICIAL INTELLIGENCE - DAHUA - SD6CE245GB-HNR
Product details
- ONVIF® POE PTZ IP camera - Dahua - SD6CE245GB-HNR
- 2Megapixel 2MP 1080P FULL-HD resolution
- 1/2.8" STARVIS™ CMOS sensor with Starlight technology
- Starlight technology: Thanks to the sensor, color shots even at night
- H.265+
- Triple Stream
- 45x Optical Zoom (3.95-177.75mm) + 16x digital Zoom
- Defog, WDR 120dB, EIS, ROI, Day/Night(ICR), Motion Detection
- 6 LED IR illuminator with range up to 250m
- Video Analysis: Face Detection, Perimeter Protection, SMD, Quick Pick, Auto Tracking 3.0
- Audio: 1 in + 1 out
- Alarm: 7 inputs + 2 outputs
- RS-485 port
- CVBS analog BNC video output
- IP67 Protection (Dust / Immersion)
- IK10 protection (from shocks, ideal against vandalism)
- Lightning protection TVS8kV
- MicroSD slot (Max 512GB - not included)
- Dimensions: 337.4mm × Φ209mm
- Operating temperature: –40 °C to +70 °C
- Net Weight: 5.8Kg
- Accessories included: Wall bracket, power supply.
- Power Supply: 24VDC, 2.5A
- Support PoE power supply
- 24 months warranty
Data sheet
| SD6CE245GB-HNR | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixels | 2MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max.Resolution | 1920(H)×1080(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 4GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 1GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | 1/1s–1/30,000s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressives | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min Illumination | 5.9 kg (13.00 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 9.6kg (21.16lbs) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation PoE is the first generation technology, PoE+ is the latest standard . PoE+ (IEEE 802.3at) (High PoE) |
 | It supports 3D Intelligent Positioning with DH-SD protocol. In addition to the movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets Generic PTZ Functions: Pan/Tilt Range Manual Control Speed Speed presets Presets Tours Patterns Scan Power-off Memory Idle motion PTZ Protocol |
 | This camera features 2 Megapixel 1080P FULL HD resolution |
 | 45x Optical Zoom (3.95-177.75mm, varifocal ) + 16x Digital Zoom |
| 1/2.8" CMOS STARVIS™ sensor with STARLIGHT technology. Low brightness, color vision even in night mode
With the addition of the STARVIS feature we have significant advantages: - Backlit structure with 2.9 µm-square unit pixel - High sensitivity (two or more times greater than other products on the market) - Increased sensitivity in the vicinity of an area covered by infrared light - Supports WDR (multiple exposure WDR, DOL-WDR) - Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black/white. With the SENSOR present, night shots will be clear and in colour
|
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | This camera features ARTIFICIAL INTELLIGENCE functions: |
 | This camera features the AUTO TRACKING function. |
 | This camera is equipped with an IR 6 LED illuminator with a maximum range of about 250m This camera is also equipped with SMART IR technology.
|
 | This camera features 1 Audio input + 1 Audio Output |
 | This camera has 7 Alarm input + 2 Alarm output |
 | RS-485 for PTZ commands (remotely controllable cameras) |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | Last Function present ONLY in the Sony Effio-V, It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 | This camera features the EIS function. The EIS (image stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where the weather conditions can make the image unstable  |
 | Possibility to insert Micro SD ( Max 512GB - not included ) |
 | Protection level IP67 ( Dust / Immersion ) |
 | IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 | Made in metal. |
 | This product is covered by a 24 month guarantee. |
