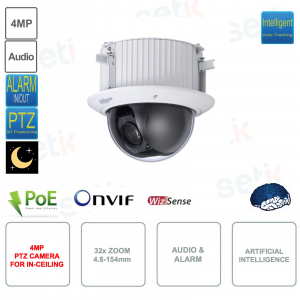

ONVIF POE IP PTZ Camera - 4MP - 32x 4.8-154mm - Artificial Intelligence - Ceiling Mount

Product details

• Starlight PTZ Camera with Starvis CMOS Sensor and 32x Optical Zoom (4.8-154mm) - SD52C432GB-HNR
• IP POE ONVIF
• For ceiling recessed installation
• Resolution 4MP 2560x1440p
• 1/2.8" STARVIS CMOS image sensor with Starlight technology!
• Starlight Technology: Color Night Vision
• Onboard AI: Face Detection, Perimeter Protection, SMD, Quick Pick
• Intelligent Auto Tracking
• Smart H.265+ Codec for Storage Optimization
• PTZ: Allows Pan (Horizontal) / Tilt (Vertical) / Zoom movement
• 32x zoom
• 4.8-154mm varifocal lens
• Digital Zoom: 16x
• Day/Night, BLC, HLC, Electronic Defog, AWB, BLC, HLC, 2D/3DNR
• WDR (120dB)
• Alarm: 2 alarm inputs and 1 alarm output
• Audio: 1 RCA input and 1 RCA output
• RJ-45 10/100M port
• IK10 Vandal Proof Protection
• Lightning protection (TVS 6000V)
• MicroSD card slot up to 512GB (not included)
• Operating temperature of functions: –30°C to +60°C
• Dimensions: 176.6mm × Φ198.0mm
• Weight: 2.2Kg
• Power supply included
• Supports PoE+
• Power supply: 24 VDC/2.5 A ± 25%
• 24 month warranty

Technical data sheet

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems

This camera supports Onvif

This camera features a resolution of 4MP, 2560x1440p

1/2.8" STARVIS™ CMOS sensor with STARLIGHT technology.

Low brightness, color vision even in night mode

With the addition of the STARVIS feature we have significant advantages:

- Back-illuminated structure with 2.9 µm-square unit pixel

- High sensitivity (twice or more times greater than other products on the market)

- Increased sensitivity when near an area covered by infrared light

- Support WDR (Multiple exposure WDR, DOL-WDR)

- Versatile Interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2)

With the Sony CMOS sensor, you can get color shots even in night mode.

Normally, when entering night mode, the color vision changes to black/white.

With the SENSOR present, night shots will be clear and in color

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.

AI | Artificial Intelligence
This camera features Artificial Intelligence on board
This means that it has a wide range of advanced features such as:

- Perimeter protection: Intrusion, Line crossing (people & vehicles classification)

- Face detection

- Quick Pick

- SMD 4.0

This camera features AUTO TRACKING function.
The system will detect objects moving in a specific video surveillance area and automatically enlarge it for a better view of the tracked object.

Supports Intelligent 3D Positioning with DH-SD protocol. This system allows not only movement on the camera axis but also positioning in terms of depth, and the same can be stored in the Presets

Generic PTZ Functions:
Pan/Tilt Range: Tilt: 0° to +90°, auto flip 180 Pan: 0° to 360° endless
Manual Control Speed: Pan: 0.1°/s–350°/s; Tilt: 0.1°/s–250°/s
Preset Speed : Pan: 500°/s; Tilt: 500°/s
Presets: 300
PTZ Mode: 8 (up to 32 presets per tour), 5 scan and 5 pattern
Power off Memory: Support
Idle Motion: Preset/Tour/Pattern/Scanning
Protocol: DH-SD,

IK10 is the highest level of protection from direct damage. This allows the camera to be used even if there are risks of vandalism
