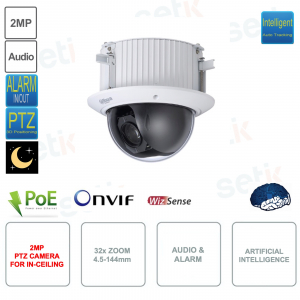

ONVIF POE IP PTZ Camera - 32x 4.5-144mm - Artificial Intelligence

ONVIF POE IP PTZ Camera - 32x 4.5-144mm - Artificial Intelligence
-57%

SD52C232GB-HNR - Dahua IP POE ONVIF recessed ceiling surveillance camera - 2MP resolution - Varifocal lens 4.5-144mm 3x Optical Zoom - H.265+ codec - 1/2.8" STARVIS Starlight CMOS sensor - Artificial intelligence - Audio - Alarm - WDR 120dB - HLC - BLC - Defog - AWB - AGC - 3DNR - IK10 and TVS 6000V vandal-proof lightning protection - 512GB MicroSD card slot (not included) - Power supply 24 VDC/2.5 A ± 25% (includes power supply) - Supports PoE+ .



Reference: SD52C232GB-HNR

Brand: Dahua

EAN: 6923172585431

FIND INSTALLER

€941.13

€2,188.68 -57%
taxes included
Tax included
 Available in 5 days
 starting

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


DAHUA PTZ STARLIGHT CAMERA - ZOOM 32X 4.5-144MM - STARVIS CMOS - AUDIO - ALARM - ARTIFICIAL INTELLIGENCE - IK10 PROTECTION - TVS6000V - 2SD52C232GB-HNR

Made by Setik
Dahua PTZ Starlight camera - 32x Optical Zoom - SD52C232GB-HNR
For recessed ceiling - 1080P 2MP resolution - 32x zoom, 4.5-144mm optics - CMOS 1/2.8" STARVIS™ CMOS Starlight - Codec H.165+ -
Day/Night - WDR 120dB - Defog - AWB - BLC - HLC - 2D/3DNR - ROI - Mirror - EIS - Audio 1in/1out RCA + Alarm 2in/1out - 512GB MicroSD card slot (sold separately) - IK10 protection from vandalism and against lightning TVS 6kV - 24 month manufacturer's warranty.
Artificial Intelligence on board : Perimeter Protection, Face Detection, Auto Tracking, SMD, Quick Pick.

Product details

  • Starlight PTZ camera with Starvis CMOS sensor and 32x optical zoom (4.5-144mm) - SD52C232GB-HNR
  • IP POE ONVIF
  • For ceiling recessed
  • 2Megapixel 1080P 2MP 2MP FULL-HD resolution
  • 1/2.8" STARVIS CMOS image sensor with Starlight technology!
  • Starlight Technology: Color night vision
  • Artificial Intelligence on board: Face Detection, Perimeter Protection, SMD, Quick Pick
  • Intelligent Auto Tracking
  • Smart H.265+ codec for optimizing storage space
  • PTZ: Allows Pan (Horizontal) / Tilt (Vertical) / Zoom movement
  • 32x zoom
  • 4.5mm~144mm lens
  • Digital Zoom: 16x
  • Day/Night, BLC, HLC, Electronic Defog, AWB, BLC, HLC, 2D/3DNR
  • WDR (120db)
  • Alarm: 2 alarm inputs and 1 alarm outputs
  • Audio: 1 input and 1 RCA output
  • RJ-45 10/100M port
  • IK10 Vandal Proof protection
  • Lightning protection (TVS 6000V)
  • MicroSD card slot up to 512GB (not included)
  • Function operating temperature: –30°C to +60°C
  • Dimensions: 176.6mm × Φ198.0mm
  • Weight: 2.2Kg
  • Power supply included
  • Supports PoE+
  • Power: 24 VDC/2.5 A ± 25%
  • 24 month warranty

Data sheet

SD52C232GB-HNR

Room

Image Sensor

1/2.8" STARVIS™ CMOS

Pixels

2 MP

Max.Resolution

1920 (H) × 1080 (V)

ROM

4GB

RAM

1 GB

Electronic Shutter Speed

1/1–1/30000 s

Scanning System

Progressives

Min. Illumination

Color: 0.005Lu×@F1.6
B/W: 0.0005Lu×@F1.6

The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation
Supports the PoE+ standard
ONVIF®

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems

This camera supports Onvif

Risoluzione 1080P FULL-HD 2 Megapixel

This camera features a resolution of 2Megapixel 2MP 2MPX 1080P FULL-HD!

1/2.8" CMOS STARVIS™ sensor with STARLIGHT technology.

Low brightness, color vision even in night mode

Starvis logo

With the addition of the STARVIS feature we have significant advantages:

- Backlit structure with 2.9 µm-square unit pixels

- High sensitivity (two or more times greater than other products on the market)

- Increased sensitivity near an area covered by infrared light

- Supports WDR (multiple exposure WDR, DOL-WDR)

- Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2)

With the Sony CMOS sensor it is possible to have color shots even in night mode.

Normally, when you enter night mode, color vision becomes black/white. NOSTARLIGHTBUIO.jpg

With the SENSOR present, night shots will be clear and in color


32X optical zoom 32x Optical Zoom (4.5-144mm) + 16x Digital Zoom Smart H.265+ video coding

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+


AI | Artificial intelligence
This camera features Artificial Intelligence on board
This means it has a wide range of advanced features such as:

- Perimeter protection: Intrusion, line crossing (people&vehicle classification)

- Face detection

- Quick Pick

- SMD 4.0


This camera features the AUTO TRACKING function.
The system will identify objects moving in a specific video-surveillance area and will automatically enlarge it for a better view of the tracked object.

Infrared illuminator

Supports Intelligent 3D Positioning with DH-SD protocol. In addition to movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets

Generic PTZ Functions:
Pan/Tilt Range: Tilt: 0° to +90°, auto flip 180 Pan: 0° to 360° endless
Manual Control Speed: Pan: 0.1°/s–350°/s; Tilt: 0.1°/s–250°/s
Preset Speed : Pan: 500°/s; Tilt: 500°/s
Presets: 300
PTZ Mode: 8 (up to 32 presets per tour), 5 scans and 5 patterns
Power-off Memory: Support
Idle Motion: Preset/Tour/Pattern/Scanning
Protocol: DH-SD,

Full HDIt is extremely useful to also have Inputs/Outputs in a CCTV system to be able to control relays or activate a recording following an event
This camera has 2 alarm inputs and 1 alarm output. Ingresso Audio This camera features 1 Audio input and 1 RCA Audio output. ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
ELECTRONIC DEFOG
It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example imageIcon High Light Compensation Function HLC (High Light Compensation) allows for greater light management in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.
Image example of HLC High Light Compensation functionIcon Day/Night function Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
Example Day/Night functionTLC_IK10_VandalProof.jpg

IK10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism

MicroSD Recording

Possibility of inserting a Micro SD up to a maximum of 512GB - not included, sold separately

Dual Encoding This product is covered by a 24 month warranty.

Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
