TIOC IP POE ONVIF PTZ Camera - 4MP - 5x 2.7-13.5mm - Artificial Intelligence - Outdoor

BEST PRICE -58%

SD3E405DB-GNY-A-PV1 - Dahua IP Poe ONVIF TIOC PTZ Camera with Artificial Intelligence (Perimeter Protection, Face Detection, Auto Tracking and SMD) - 4MP - 2.7-13.5mm 5x zoom lens, 1 / 2.8 "4MP CMOS sensor - Active Deterrence - IR 50m - H.265+ Smart Codec - Triple Stream, DWDR , Day/Night, BLC, HLC, 2D/3D-NR, AWB, AGC, MicroSD slot up to 512GB (not included) - RJ-45 - Built-in speaker and microphone - Two-way audio - Alarm - Lightning protection TVS600V - IP66 outdoor protection - Supports PoE+.

Reference: SD3E405DB-GNY-A-PV1

Brand: Dahua

EAN: 6923172548184

FIND INSTALLER

https://www.setik.biz/en/cameras/9120-dahua-sd3e405db-gny-a-pv1-tioc-ip-poe-onvif-ptz-camera-4mp-5x-27-135mm-artificial-intelligence-outdoor.html

€316.15

€752.74 -58%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Data Sheet Further Details Download

POE ONVIF TIOC PTZ IP CAMERA - 4MP - ARTIFICIAL INTELLIGENCE - AUDIO - ALARM - DAHUA - SD3E405DB-GNY-A-PV1

Dahua ONVIF® IP outdoor camera - SD3A405-GN-PV1
4Megapixel resolution - 2.7-13.5mm varifocal lens - H.265+ compression - 1/2.8" 4MP CMOS
Artificial Intelligence: Perimeter Protection, Face Detection, SMD Plus, Auto Tracking - Active Deterrence - IR 50m - Day/Night (ICR) - DWDR - Day/Night, BLC, HLC, 2D/3D DR, 512GB MicroSD Slot (not included ) - Built-in microphone and speaker - Two-way audio - 1in/1out alarm - RJ45 10/100M network interface - IP66 outdoor protection - TVS6000V lightning protection - PoE+ support - Power supply 12 VDC, 2A ± 10%.

Product details

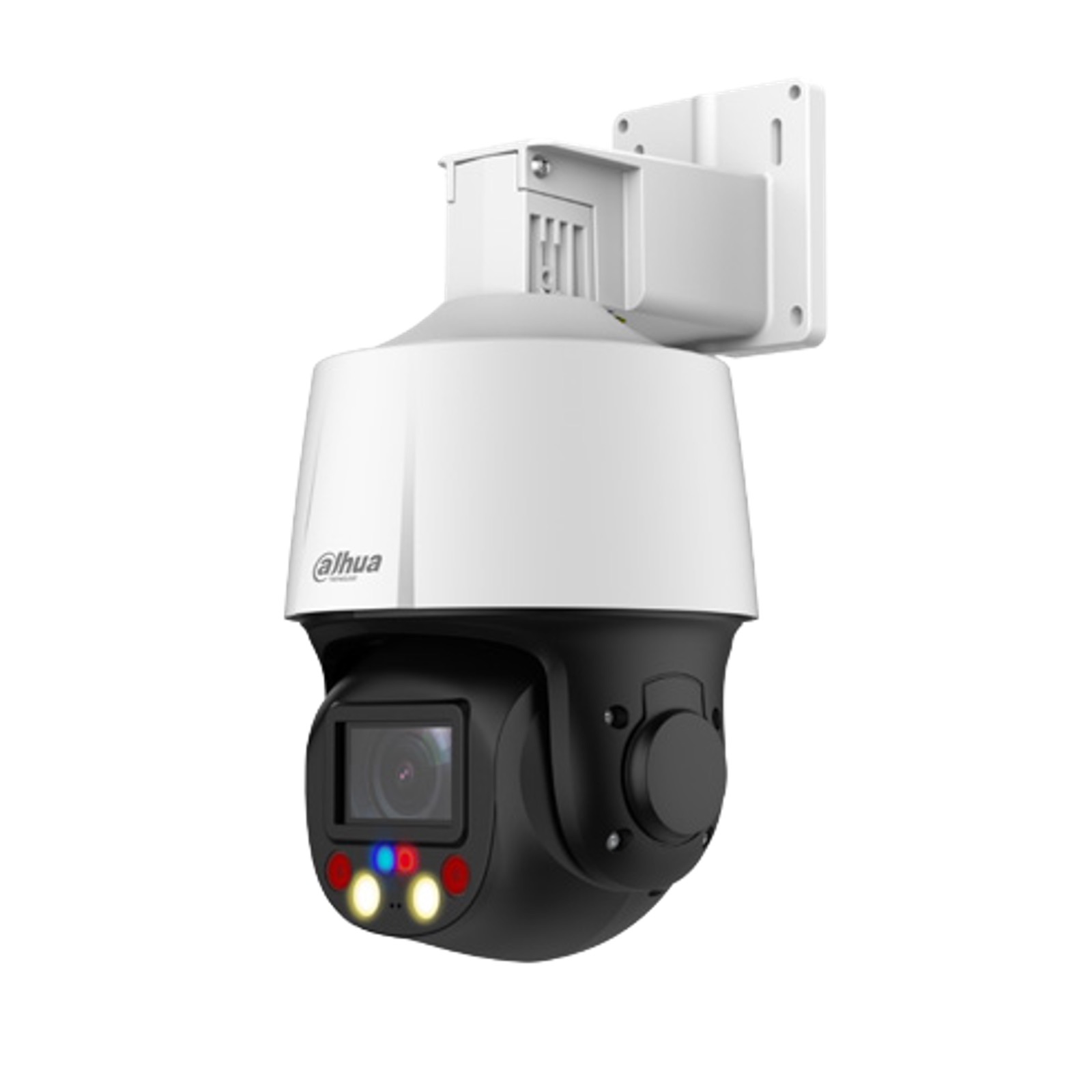

IP camera outdoor ONVIF® PTZ Dahua - SD3E405DB-GNY-A-PV1
4Megapixel 2560x1440p progressive scan resolution
Varifocal lens 2.7-13.5mm 5x Optical Zoom
1/2.8" CMOS sensor with 4MP
IR technology: Night vision up to 50m
30m warm light illuminator
Active deterrence with sound and light signals
24/7 viewing
Video compression up to H.265+
Triple Stream Video
Artificial Intelligence functions (Perimeter Protection, Face Detection, SMD Plus, Auto Tracking)
Day/Night(ICR)
Digital WDR
BLC, HLC, AWB, 2D/3D NR, Motion Detection
Remote viewing with Dahua DMSS
IP66 protection (Rain/Dust) - Suitable for indoor/outdoor environments
TVS 6000V lightning protection
MicroSD memory card slot (up to 512GB capacity - not included)
Speaker
Integrated microphone
Two-way audio
1 input and 1 alarm output
Dimensions: 165.5mm × 140mm × 271.6mm
Item weight: 1.5kg
Operating temperature: -30°C to +60°C
Humidity: up to 95%

Data sheet

SD3E405DB-GNY-A-PV1

Room

Image Sensor

1/2.8" CMOS

Pixels

4MP

Max.Resolution

2560(H)×1440(V)

ROM

128MB

RAM

512MB

Electronic Shutter Speed

1/1s–1/30,000s

Scanning System

Progressives

Min Illumination

Color: 0.005lux@F1.6
B/W: 0.0005lux@F1.6
0 lux (IR light on)

Illumination Distance

50m (164.04ft) (IR)
30m (98.43ft) (Warm light)

Illuminator On/Off Control

Zoom Prior; Manual; Car; Off

Image stabilization

Electronic (EIS)

defog

Electronic

digital zoom

16×

Image Rotation

180°

S/N Ratio

≥55dB

Audio

Audio compression

G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; pcm extension

Network

Network Port

RJ-45 (10/100Base-T)

NetworkProtocol

FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;SMB;HTTP;SSL;DHCP ;SMTP;Qos;RTSP;ARP

Interoperability

CGI;SDK;ONVIF (Profile S&G&T);P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64M)

Storage

FTP/SFTP; Micro SD card (512GB); NOS

Browsers

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions

management software

DMSS;DSS Pro

Mobile Clients

iOS;Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014

Port

Audio inputs

1 channel (LINE IN, bare wire, built-in mic (mutually exclusive))

Audio Outputs

1 channel (LINE OUT, bare wire; built-in speaker (mutually exclusive))

Alarm Linkage

Capture; recording; send email; presets; alarm digital input; audio; warning light

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

I/O alarms

1/1

Audio I/O

1/1

Power

Power Supply

12VDC, 2A ± 10%
PoE+ (802.3at)

power consumption

Basic: 4.5W
Max.: 15W (illuminator + PTZ + speaker + heating glass)

environment

Operating Temperature

–30°C to +60°C (–22°F to +140°F)

Operating Humidity

≤95%

Protection

IP66, TVS 6000V lightning proof; surge protection; voltage transient protection

structure

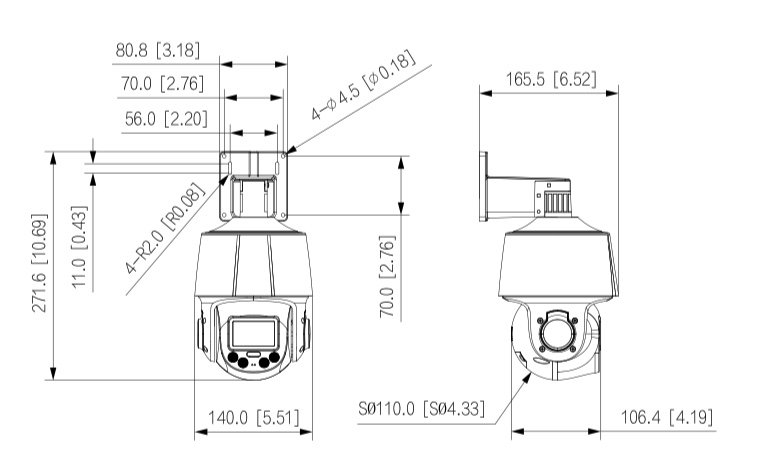

Product Dimensions

165.5mm × 140mm × 271.6mm (6.52" × 5.51" × 10.69") (L × W × H)

Net Weight

1.5kg (3.31lbs)

Gross Weight

2.1kg (4.63lbs)

Further details

The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

This product complies with the Onvif standard

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera is ONVIF® compatible

Resolution:

4 Megapixel 2560x1440p resolution, progressive scan.

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

This camera is equipped with a double IR LED illuminator with a maximum range of about 50m.

Optics:

This camera features a 2.7-13.5mm varifocal lens.

5x optical zoom

It supports 3D Intelligent Positioning with DH-SD protocol. In addition to the movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets

Generic PTZ Functions:

Pan/Tilt Range
Pan: 0° to 355° Tilt: –15° to +90°

Manual Control Speed
Pan: 0.1°/s–36°/s Tilt: 0.1°/s–25.8°/s

Speed presets
Pan: 35.7°/s; Tilt: 27.1°/s

Presets
300

Power-off Memory
Yes

Idle motion
Presets

Artificial intelligence:

This camera features VIDEO ANALYSIS (IVS) functions with ARTIFICIAL INTELLIGENCE:

- Perimeter protection
- Face detection
-SMD Plus

This camera features the AUTO TRACKING function.
The system will identify the objects moving in a given video surveillance area and will automatically enlarge it for a better view of the tracked object.

Digital Wide Dynamic Range (WDR)

D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range

Day/Night:

It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically

IR Cut Filter:

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies. This improves the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

BLC (Black Light Compensation):

BLC is one of the 3 contrast image management solutions. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entrances or exits of parking lots, shooting of license plates, presence of particular lights, etc...)
