POE ONVIF ANPR IP camera - Dahua - ITC413-PW4D-IZ3 - 8-32mm Varifocal lens - 4MP resolution - IR illumination for ANPR up to 20m and 60m for Video Monitoring - WDR 140dB, HLC, BLC - Artificial Intelligence : Vehicle Recognition and Metadata - Video Analysis - IP67 and IK10 vandal-proof outdoor protection - Audio - Alarm - Built-in microphone - RS485 - Supports Wiegand -
FIND INSTALLER
€823.10
€1,914.18 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
IP POE ONVIF ANPR CAMERA - 8-32mm VARIFOCAL LENS - ARTIFICIAL INTELLIGENCE - AUDIO - MICROPHONE - ALARM - DAHUA - ITC413-PW4D-IZ3

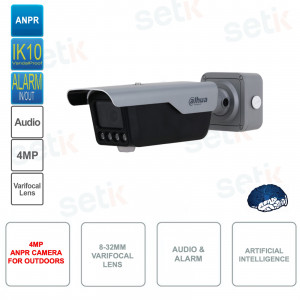

POE ONVIF ANPR IP Camera with Artificial Intelligence - Dahua - ITC413-PW4D-IZ3
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, on the other hand, the artificial intelligence used is the one that allows the creation of advanced devices for environmental analysis. This camera allows: |
Product details
- CMOS image sensor 1/1.8"” progressive scan CMOS
Vehicle recognition
-RS485
- Can be installed on cable tray
- Operating temperature: –40 °C to +70 °C
- 24 months manufacturer's warranty
Data sheet
| ITC413-PW4D-IZ3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Number of Connections
10
Intelligence
AI Recognition
Recognizes vehicle types, vehicle signs, vehicle color, vehicle plate, plate, vehicle without plate.
Video Metadata
Displays the intelligent frame, plate and vehicle paths.
Vehicle Brand
Recognizes 147 vehicle logos.
Vehicle Color
Recognizes 12 colors: Grey, black, white, silver, blue, green, purple, red, orange, pink, brown, and yellow.
Vehicle Type Recognition
Recognizes 10 vehicle types: Large Bus, Heavy Truck, Medium Truck, Sedan, Van, Light Truck, Medium Bus, SUV, MPV, Pickup
Country and Region Supported by ANPR
Baseline support:
GCC (UAE, Saudi Arabia, Morocco, Oman, Iraq, Egypt, Jordan, Qatar, Kuwait, Bahrain, Lebanon)
Europe (Netherlands, France, Germany, Britain, Italy, Poland, Belgium, Bulgaria, Serbia, Slovakia, Spain, Denmark, Turkey, Israel, Czech Republic, Bosnia and Herzegovina, Switzerland, Austria, Hungary, Romania, Lithuania, Latvia, Sweden , Estonia, Portugal, Greece, Slovenia, Luxembourg, Palestine, Lebanon, Ireland, Finland, Norway, Croatia, North Macedonia)
Russian-speaking regions (Russia, Ukraine, Kyrgyzstan, Uzbekistan, Moldova, Lithuania, Latvia, Georgia, Azerbaijan, Turkmenistan)
SADC (Uruguay, Paraguay, Brazil, Argentina, Chile, Colombia, Peru, Ecuador, Guyana)
North America (United States, Canada)
Can be customized:
Mongolia, Japan, Philippines, Vietnam, Laos, Cambodia, myanmar, Thailand, Malaysia, Singapore, Indonesia, Bangladesh, India, Pakistan, Curacao, Mexico, Guatemala, Costa Rica, Australia, New Zealand, Tunisia, Algeria, Ethiopia, Tanzania, Uganda, Equatorial Guinea, Nigeria, Zambia, Mozambique, South Africa, Mauritius
Capture rate
In the recommended installation and lighting condition, the vehicle capture rate ≥ 99%
Recognition rate
In the recommended installation and lighting condition, the recognition rate for positive and departing vehicles≥ 96%; the recognition rate for European vehicle plates ≥ 98%
General
remote control
Yes
Communication Band
433MHz; 868MHz
Remote Control Distance
15 m (49.21 ft) (In an open, undisturbed environment)
Power Supply
12 VDC, 2A and POE:802.3at,Type 2,Class 4,(44V to 57V), 0.455A to 0.351A,max.20W
power consumption
Power consumption under different conditions:
No lighting < 6W
Lighting <12W
Speaker and Red/Blue Light Warning on < 17W
Protection
IK10; IP67
Material
Aluminum alloy body+Plastic
Product Dimensions
395.0mm × 120.8mm × 127.8mm (15.55" × 4.76" ×
5.03") (L×W×H)
Packaging Dimensions
447.0mm × 240.0mm × 233.0mm (17.60" × 9.45" × 9.17")
Net Weight
2.3kg (5.07lbs)
Gross Weight
3.2kg (7.05lbs)
Storage Humidity
–40°C to +70°C (–40°F to +158°F)
Storage Temperatures
≤ 95% (non condensing)
Operating Temperature
–30°C to +65°C (–22°F to +149°F)
Operating Humidity
10%–90% (noncondensing)
Certifications
CE-EMC; CE-LVD; CE-RED; FCC
Further details
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
 | |
| AI | Artificial intelligence Allows: |
 | Dahua's ANPR cameras offer a full range of functions for license plate recognition. They integrate an algorithm that detects and captures license plate numbers and stores the details in a database
How and where can it be used? A Dahua ANPR camera is suitable for various types of areas, including parking entrances, barrier-controlled areas or lane monitoring. The camera can capture license plates up to a speed of 25mph ( 40km/h )  |
 | This camera has a resolution of 4Megapixel. Supported Resolutions:
|
 | This camera features 8-32mm varifocal lens |
 | 4 integrated illuminators. ANPR sensing distance: 20m Video Monitoring: 60m. |
 | WDR at 140dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
 |
|
 | IP67 protection, from dust and immersion, ideal for use in video surveillance systems set up outdoors. |
 |
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 | 2 alarm inputs and 2 alarm outputs |
 | 1 RCA audio input, microphone and speaker on board! (2W) |
 | This product is covered by a 24 month guarantee. |
