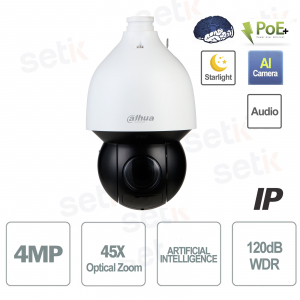

Dahua SD5A445GB-HNR AI Series Outdoor ONVIF PoE IP Camera with 4Megapixel resolution with Artificial Intelligence , varifocal motorized lens with 45X optical zoom (3.95~177.75mm), 1/2.8" STARVIS™ CMOS sensor with Starlight Technology . H.265+ , Triple Stream, WDR 120dB , Electronic Defog, EIS, ROI, Perimeter Protection , SMD Plus, Face Detection, Auto-tracking, Video Structuring, PFA Technology, Video Analysis, Audio, Alarm, Cloud P2P, MicroSD Slot, IP67/IK10/TVS 6000, Includes Bracket and Power Supply
FIND INSTALLER
€1,300.47
€3,096.36 -58%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
IP PTZ CAMERA 4MP EXTERNAL ONVIF POE WITH ARTIFICIAL INTELLIGENCE - VARIFOCAL LENS - STARLIGHT - 45X ZOOM
IP camera ONVIF POE Dome PTZ Dahua4Megapixel resolution - Varifocal lens 3.95~177.7 mm ( 45x zoom) - 1/2.8" STARVIS™ Starlight CMOS sensor
➽ ON BOARD: Artificial Intelligence: Perimeter Protection, SMD Plus, Face Detection, Video Structuring - Auto-Tracking
|
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- PoE Outdoor ONVIF IP AI Camera - Dahua
- 4Megapixel resolution
- Motorized varifocal lens 3.95~177.75 mm (45x optical zoom)
- 1/2.8" STARVIS™ CMOS sensor with Starlight Technology
- Starlight technology: Color night vision
- Video Compression up to H.265+
- Triple Stream
- Day/Night(ICR), AWB,AGC,BLC,HLC 2D / 3D-NR, Defog, EIS, ROI, WDR (120db)
- Smart IR Illuminator 4 LEDs 150MT
- Artificial Intelligence: Perimeter Protection - SMD Plus - Face Detection - Auto-Tracking - Video Structuring
- Standard Video Analysis : Objects abandoned / lost
- PFA technology: Sharp image throughout the zoom process, focus reduction
- Alarm: 2 alarm inputs and 1 alarm outputs
- Audio: 1 input + 1 output (wired - no connector)
- Cloud P2P with Easy4ip APP
- microSD-Card slot (Max 512GB not included)
- Protection IP67 (outdoors), IK10 and TVS 6000 (lightning)
- Metal
- PoE+ protocol (802.3at)
- Dimension:Φ190mm×332mm (7.48"×13.07“)
- Arm and power supply included
- 24 months warranty
Data sheet
| model | SD5A445GB-HNR |
| Room | |
| Image Sensor | 1/2.8" STARVIS™ CMOS |
| Max.Resolution | 4MP |
| Effective Pixels | 2560(H)×1440(V) |
| ROM | 4GB |
| RAM | 1GB |
| Electronic Shutter Speed | 1/1s–1/30,000s |
| Scanning System | Progressives |
| Min Illumination |
Color: 0.005lux@F1.6 |
| IR Distance | 150m (492.13ft) |
| IR On/Off Control | Zoom Prio/Manual/SmartIR |
| IR LEDs | 4 |
| lens | |
| Focal Length | 3.95mm–177.75mm |
| Max Openings | F1.6–F4.95 |
| Angle Of View | H: 70.3°–1.8°; V: 37°–1°; D: 69.3°–2° |
| optical zoom | 45x |
| Focus control | Auto/Semi-Auto/Manual |
| Close Focus Distance | 0.01m–3m |
| Iris Control | Auto/Manual |
| PTZ | |
| Pan/Tilt Range | Pan: 0°–360°; Tilt: -15°–+90° |
| Manual Control Speed | Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s |
| Speed presets |
Pan: 400°/s; Tilt: 300°/s |
| Presets | 300 |
| Tours | 8 (up to 32 presets per tour) |
| Pattern Number | 5 |
| Scan Number | 5 |
| Speed adjustment | Yes |
| Power-off Memory | Support |
| Idle motion | Presets/Tours/Patterns/Scans |
| protocol | DH-SD Pelco-P/D (Auto recognition |
| artificial intelligence | |
| Video Structuralisation | Support human, motor vehicle and non-motor vehicle image capture |
| perimeter protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
| SMD Plus | Support |
| Face Detection | Support |
| Auto Tracking | Support |
| General Intelligence | |
| Event Triggers | Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly |
| General IVS | Object Abandoned/Missing |
| Video | |
| Compression | H.265/H.265+/H.264+/H.264/MJPEG(Sub Stream) |
| Streaming Capability | 3 streams |
| Resolution |
4M (2560×1440); 3M (2048×1536); 3M (2304× |
| Frame Rates |
Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 |
| Bit Rate Control | CBR/VBR |
| Bit rate | H.264: 96kbps–14848kbps, H.265: 38kbps–8960kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC extension | Support |
| wdr extension | 120dB |
| HLC extension | Support |
| White Balance | Car; indoors; outdoors; ATW; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto/Manual |
| Noise reduction | 2D/3D |
| motion detection | Support |
|
Region of Interest (RoI) |
Support |
|
Electronic Image Stabilization |
Support |
|
defog |
Support |
|
digital zoom |
16x |
|
Flip |
180° |
|
Privacy Masking |
Up to 24 areas |
| Certification | |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 |
| Audio | |
| Compression | G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2 |
| Port | |
| Alarm Linkage | Capture; recording; send email; presets; tour; pattern; alarm digital output |
| Alarm Event | Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detective |
| I/O alarms | 2/1 |
| Audio I/O | 1/1 |
| Network | |
| Ethernet | 1 RJ-45 Port 10/100Base-T |
| protocol |
FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; |
| Interoperability | CGI; SDKs; ONVIF (Profile S&G&T); P2P |
| Streaming Method | Unicast/Multicast |
| Max User Access | 20 (Total bandwidth 48M) |
| Edge Storage | FTP; Micro SD card (512G); P2P |
| Browsers | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions iOS 10 and later versions |
| management software | DSS_DMSS |
| smart phones | IOS/Android |
| Power | |
| Power Supply |
24VDC, 2.5A ± 25% |
| power consumption |
Basic: 10W |
| environment | |
| Operating Temperature |
–40°C to +70°C (–40°F to +158°F |
| Operating Humidity |
≤95% |
| Ingress Protection |
IP67; IK10; TVS 6000V lightning proof; surge |
| Construction | |
| Dimensions |
Φ190mm×332mm (7.48"×13.07") |
| Net Weight |
4.7kg (10.36lbs); |
| Gross Weight |
8kg (17.64lbs) |
Further details
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera is ONVIF® compatible |
 |
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation PoE is the first generation technology, PoE+ is the latest standard . PoE+ (802.3at) |
|
|
AI | Artificial intelligence - Perimeter Protection: Line crossing and intrusion. It supports triggering the alarm from various types of targets (humans and vehicles). Filter out false alarms caused by animals, rustling leaves, bright lights - SMD Plus: With the deep learning algorithm, Dahua SMD Plus filters the alarm received from the detection of an uninterested target and effectively recognizes humans and vehicles, sending alarms when the latter appear in the shooting area. - Face Detection: Supported - Auto-Tracking: Supported - Video Structuring: Supports motor vehicle, non-motor vehicle, and human detection.
|
|
|
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
45x Optical Zoom (3.95-177.75 mm) + 16x Digital Zoom |
|
|
1/2.8" CMOS STARVIS™ sensor with STARLIGHT technology. Low brightness, color vision even in night mode
With the addition of the STARVIS feature we have significant advantages: - Backlit structure with 2.9 µm-square unit pixel - High sensitivity (two or more times greater than other products on the market) - Increased sensitivity in the vicinity of an area covered by infrared light - Supports WDR (multiple exposure WDR, DOL-WDR) - Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black/white. With the SENSOR present, night shots will be clear and in colour
|
 |
4 LED IR illuminator with range up to 150 MT! This camera is also equipped with SMART IR technology.
|
 |
This camera features the AUTO TRACKING function.
|
 |
This camera also features VIDEO ANALYSIS / SMART DETECTION functions: |
 |
Generic PTZ Functions: Pan/Tilt Range: Pan: 0°–360° (endless) Tilt: -15°–90° Manual Control Speed: Pan: 0.1°–300°/s Tilt: 0.1°–200°/s Preset Speed: Pan: 400°/s Tilt: 300°/s Presets: 300 PTZ Mode: 8 (up to 32 presets per tour) / Pattern Number 5 / Scanning Number 5 |
 |
Cloud function with Easy4IP
|
 |
It is extremely useful to have Inputs/Outputs in a CCTV system to be able to command relays or activate a recording following an event This camera has 2 inputs and 1 output |
 |
This camera features 1 Audio input + 1 Audio Output (wired - no connector) |
 |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
ULTRA 2D / 3D-DNR 3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and moving images. It is currently the most powerful solution for obtaining maximum results in the presence of little light. |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
 |
This function allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 |
This camera features the EIS function. The EIS (image stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where the weather conditions can make the image unstable  |
 |
This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 |
This camera has auto / semi-auto or manual focus |
 |
Possibility to insert Micro SD up to a maximum of 512GB (not included) |
 |
Protection level IP67 ( Dust / Immersion ) |
 |
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 |
This product is covered by a 24 month guarantee. |
