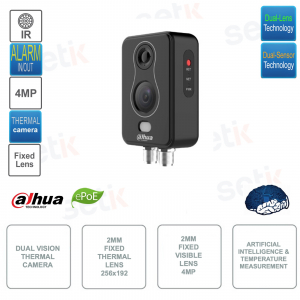

TPC-KF2241-TB2F2-S3 Dual -lens and Dual-Sensor Hybrid Thermal + Visible POE IP Camera. Double optics: thermal (2mm), visible (2mm). Double sensor: 1/2.8 "4MP CMOS (visible), VOx 256x192 sensor (thermal) - IR 4m - Codec H.265 - Dual Stream - Temperature measurement - Artificial intelligence with Hot/Cold Spot tracking ICR, AGC, BLC, HLC, WDR 120dB - 1 alarm input/1 output - 1x RS485 - 1x RJ-45 (10/100 Base- T) - IP67 outdoor protection - Lightning protection 6kV.
FIND INSTALLER
€1,159.37
€2,696.20 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
HYBRID THERMAL MOTORIZED DOME CAMERA WITH DUAL LENSES, ARTIFICIAL INTELLIGENCE AND TEMPERATURE MEASUREMENT - S3 VERSION - DAHUA - TPC-KF2241-TB2F2-S3
| THERMAL DETECTION |
|---|
  |
Product details
- Hybrid Thermal + Visible Dual-lens and Dual-Sensor ONVIF® camera - Dahua - TPC-KF2241-TB2F2-S3
- S3 version
- Dual-Lens Technology: Thermal(2mm), Visible(2mm)
- Dual-Sensor Technology: 1/2.8" 4 Megapixel CMOS (Visible), Uncooled VOx256x192 Sensor (Thermal)
- Thermal resolution 256x192 , Visible resolution 2336x1752
- IVS: Line Crossing, Intrusion Detection, Fire Detection and Alarm, Hot/Cold Spot Locating, Person/Vehicle Classification, Autotracking
- Temperature detection (high/low)
- Thermal sensitivity <40mK
- Video compression H.264/H.265
- ICR, AGC, BLC, HLC, 2D-NR and 3D-NR, ROI
- IR illuminator up to 4 meters
- 1 alarm input/1 alarm output
- 1xRS485
- 1x RJ-45 (10/100Base-T)
- microSD slot up to 256GB
- IP67 protection
- TVS 6000 lightning protection
- Power supply NOT included
- Dimensions: 113.6mm × 62.0mm × 39.0mm
- Operating temperature: –20 °C to +50 °C
- Net weight 0.5Kg
- Power supply: 12VDC ± 20%; PoE (802.3af); ePoE
- Includes Magnetic Mount (magnetic support)
Data sheet
| TPC-KF2241-TB2F2-S3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thermal | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DetectorType | Vanadium oxide uncooled focal plane detector | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels | 256(H)×192(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel Pitch | 12 μm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight
≤0.5kg (1.10lb)
Gross Weight
≤1.0kg (2.20lbs)
lens
Included
Bracket
Included:
Magnetic mount: RKN010-02
Further details
 | Thermal camera... what is it? and how to choose it? |
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems |
| This camera provides video compression in H.264 and H.265 format, the new standard for video compression! |
 | This camera is a THERMAL CAMERA .
Visual spectrum from 8 to 14µm
|
 | Dual Lens Technology! It detects high and low temperatures, with the following measurement ranges: High temperatures: 0 °C to +550 °C Low temperatures: –20 °C to +150 °C Accuracy (Rate): Max. (±2°C, ±2%)  |
| Dual-Sensor Technology!
|
 | It is extremely useful to have Inputs/Outputs in a CCTV system in order to be able to command relays or activate a recording following an event This camera has 1 inputs + 1 Alarm output |
 | Protection level IP67 ( Dust / Immersion ) |
 |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 | BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entries or exits of car parks, shooting of license plates, presence of special lights, etc...). |
 | HLC (High Light Compensation) allows for greater light management, in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.  |
 | This product is covered by a 24 month guarantee. |
