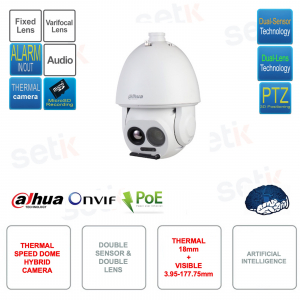

TPC-SD5641-B18Z45 Dahua professional Hybrid IP POE ONVIF Speed Dome Thermal Camera - Dual-Lens, Dual-Sensor - 18mm thermal and visible varifocal optics 3.95-177.75mm 45x zoom , dual sensor (1x Thermal Vanadium oxide uncooled 640x512 + 1x CMOS 1/2.8" 4MP 2688x1520) - Codec H.265, ROI, Defog, BLC, WDR, HLC, 2D/3DNR - IR Illuminator 100m - 3D PTZ Positioning - Artificial Intelligence with Heat Detection, Cold/Hot Spot Tracing, Perimeter Protection - Audio - Alarm - RS485 - IP66 protection - TVS6000 from lightning - 512GB MicroSD slot (not included).
FIND INSTALLER
€8,036.35
€18,689.18 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
Description Product Details Data Sheet Further Details Download
IP POE ONVIF DAHUA THERMAL CAMERA WITH DOUBLE LENS AND DOUBLE SENSOR - AUDIO - ALARM - ARTFICIAL INTELLIGENCE - DAHUA - TPC-SD5641-B18Z45
Dual-Lens (18mm thermal - visible 3.95-177.75mm) - Visible optical resolution 4MP 2688x1520 with 1/2.8" CMOS sensor - Vanadium oxide uncooled focal plane detector thermal sensor resolution 640x512 - Double sensor -
Codec H.265 - IR illuminator 100m - ROI, Defog, BLC, WDR, HLC, 2D/3DNR - PTZ 3D - Artificial Intelligence , Perimeter Protection, Cold/Hot Spot Tracing - Heat detection, Human and vehicle target distinction - CVBS analogue output over BNC - 7 inputs + 2 Alarm outputs, 1x inputs + 1x Audio output - Two-way audio - RS-485 - MicroSD slot up to 512GB (not included) - IP66 outdoor and TVS6000 lightning protection - Ideal for outdoor use.
Product details
- PoE IP professional thermal camera Speed dome - Dahua - TPC-SD5641-B18Z45
- Dual-Lens technology, dual optics (18mm thermal / 3.95-177.75mm varifocal visible)
- Dual-Sensor Technology , dual sensor (Uncooled VOx - thermal / 1/2.8" 4MP CMOS - visible)
- Resolution 640x512 (thermal optical) / Up to 4MP 2688x1520 (visible optical)
- Visual spectrum from 8 to 14 µm
- Thermal Sensitivity <35mK
- ROI, WDR, BLC, HLC, Defog, 2D/3DNR
- IR illuminator 100m
- 3D PTZ positioning
- Artificial Intelligence: Hot/Cold Spot Tracing, Perimeter Protection, Heat Detection, Human and Vehicle Distinction
- Alarm: 7 inputs and 2 outputs
- Audio: 1 audio input and 1 audio output
- 1 RS-485 port
- 1 microSD-Card slot (Max 512 - not included)
- Power supply NOT included
- Dimensions: Φ240mm × 382mm
- IP66 protection ideal for outdoor use
- TVS 6000 lightning protection
- Weight: 8Kg
- Operating temperature: –30 °C to +60 °C
- Power supply: 36VDC ± 50%
- Support Hi-PoE power supply
- 24 months warranty
- Accessories included: Junction, power cable, power supply, wall bracket
Data sheet
| TPC-SD5641-B18Z45 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thermal | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DetectorType | Vanadium oxide uncooled focal plane detector | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels | 640(H)×512(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel Pitch | 12 μm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Spectral Range | 8 μm–14 μm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sensitivity (NETD) | ≤35mK (@f/1.0) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 18mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 36VDC ± 50%, Hi-PoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
power consumption | Basic: ≤21W Max: ≤40W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –30°C to +60°C (–22°F to +140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperatures | –30 °C to +70 °C (–22 °F to +158 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Physical Characteristics | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP66 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reliability | Surge protection: 6 kV | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | Φ240mm × 382mm (Φ9.45" × 15.04") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions | 319mm × 319mm × 521mm (12.56" × 12.56" × 20.51") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | ≤8kg (17.64lbs) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | ≤10kg (22.05lbs) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Heat Detection Distance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max.Distance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1,080m (3,543.31ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection Distance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Distance (Human) | Distance (Vehicle) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 126m (413.39ft) | 378m (1,240.16ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports Onvif version |
 | Thermal camera... what is it? and how to choose it? Body Temperature Measurement? What does it mean? |
| This camera is a THERMAL CAMERA
|
  | Dual Lens Technology! |
| Dual-Sensor Technology!
|
 | Pan/Tilt Range Manual Control Speed Speed presets Presets Tours Patterns Scan Power-off Memory Privacy Masking Idle motion |
 | ARTFICIAL INTELLIGENCE |
 | Infrared illuminator with 100m range |
 | It is extremely useful to have Inputs/Outputs in a CCTV system to be able to command relays or activate a recording following an event This camera has 7 inputs and 2 alarm outputs |
 | This camera has 1 inputs + 1 Audio Output Two-way audio. |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 | DEFOG It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 |
|
 | Possibility to insert Micro SD up to a maximum of 512GB - not included |
 | Protection level IP66 ( Dust / Immersion ) Also includes TVS 6000V lightning protection. |
 | This product is covered by a 24-month manufacturer's guarantee. |
