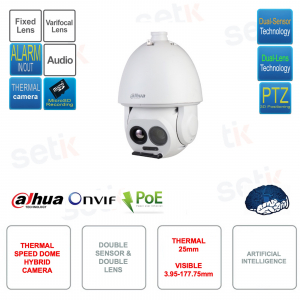

TPC-SD5441-B25Z45 Dahua professional Hybrid IP POE ONVIF Speed Dome Thermal Camera - Dual-Lens, Dual-Sensor - Optics 25mm thermal and visible varifocal 3.95-177.75mm , double sensor (1x Thermal Vanadium oxide uncooled + 1x CMOS 1/2.8" 4MP 2688x1520) - Codec H.265, ROI, Defog, BLC, WDR, HLC, 2D/3DNR - Illuminator IR 100m - 3D PTZ positioning - Artificial intelligence with heat detection, Cold/Hot Spot Tracing, Perimeter protection - Audio - Alarm - RS485 - IP66 protection - TVS6000 from lightning - MicroSD 512 slot (not included).
Description Product Details Data Sheet Further Details Download
IP POE ONVIF DAHUA THERMAL CAMERA WITH DOUBLE LENS AND DOUBLE SENSOR - AUDIO - ALARM - ARTFICIAL INTELLIGENCE - DAHUA - TPC-SD5441-B25Z45

Dual-Lens (thermal 25mm - visible 3.95-177.75mm) - Visible optical resolution 4MP 2688x1520 with 1/2.8" CMOS sensor - Vanadium oxide uncooled focal plane detector thermal sensor resolution 400x300 - Double sensor -
Codec H.265 - IR Illuminator 100m - ROI, Defog, BLC, WDR, HLC, 2D/3DNR - 3D PTZ - Artificial Intelligence , Perimeter Protection, Cold/Hot Spot Tracing - Heat detection, Human and vehicle target distinction - CVBS analog output over BNC - 7 inputs + 2 Alarm outputs, 1x inputs + 1x Audio output - Two-way audio - RS-485 - MicroSD slot up to 512GB (not included) - IP66 outdoor and TVS6000 lightning protection - Ideal for outdoor use.
WHAT IS THERMAL SENSING?Any object with a temperature above absolute zero (-273.15°C) emits radiation. Infrared radiation is found between the visible spectrum (0.4-0.75um) and microwaves (>15um). Even if we can't see them, we perceive them every day: the sun and fire are sources of infrared radiation that we can perceive through heat. Image quality depends on the temperature difference, and high differentials produce better images. This is how we distinguish the temperature difference in thermal imaging. ![]() THERMAL DETECTIONUseful both for standard monitoring (entry/exit, kitchen, kindergartens) and for specific monitoring , for example in case of epidemic periods , in airports, train stations, hospitals and schools. ![]() |
Product details

- PoE IP professional thermal camera Speed dome - Dahua - TPC-SD5441-B25Z45
- Dual-Lens technology, dual optics (Thermal 25mm / Visible 3.95-177.75mm varifocal)
- Dual-Sensor Technology , dual sensor (Uncooled VOx - thermal / 1/2.8" 4MP CMOS - visible)
- Resolution 400x300 (thermal optics) / Up to 4MP 2688x1520 (visible optics)
- Visual spectrum from 8 to 14 µm
- Thermal Sensitivity <35mK
- ROI, WDR, BLC, HLC, Defog, 2D/3DNR
- IR illuminator 100m
- 3D PTZ positioning
- Artificial Intelligence: Hot/Cold Spot Tracing, Perimeter Protection, Heat Detection, Human and Vehicle Distinction
- Alarm: 7 inputs and 2 outputs
- Audio: 1 audio input and 1 audio output
- 1 RS-485 port
- 1 microSD-Card slot (Max 512 - not included)
- Power supply NOT included
- Dimensions: Φ240mm × 382mm
This camera is a THERMAL CAMERA
DID YOU KNOW THAT...
With the Black-Body you will increase the accuracy of the camera!*
Accuracy:
- Without black-body: Max (±1°C, ±1%)
- With black-body Max (±0.3°C, ±0.3%)
* black-body not included


Dual Lens Technology!
This camera is equipped with 2 lenses , a thermal 3.5mm and a visible 4mm

Dual-Sensor Technology!
This camera is equipped with 2 image sensors , Vanadium oxide uncooled focal plane detector for Thermal optics and 1/2.8" 4MP 2688x1520 CMOS for visible optics!

ARTFICIAL INTELLIGENCE
Hot/Cold Spot Detection
Perimeter Protection
Heat sensing
Target distinction between people and vehicles
Detection Distance:
Thermal: Vehicles 2262m / People 735m
Recognition distance :
Vehicles 280m / People 95m

Infrared illuminator with 100m range

This camera has 7 inputs and 2 alarm outputs

This camera has 1 inputs + 1 Audio Output
Two-way audio.



The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.


It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog



RS-485 supported

Possibility to insert Micro SD up to a maximum of 512GB - not included
